Philips pm3232 - Main Text Plate

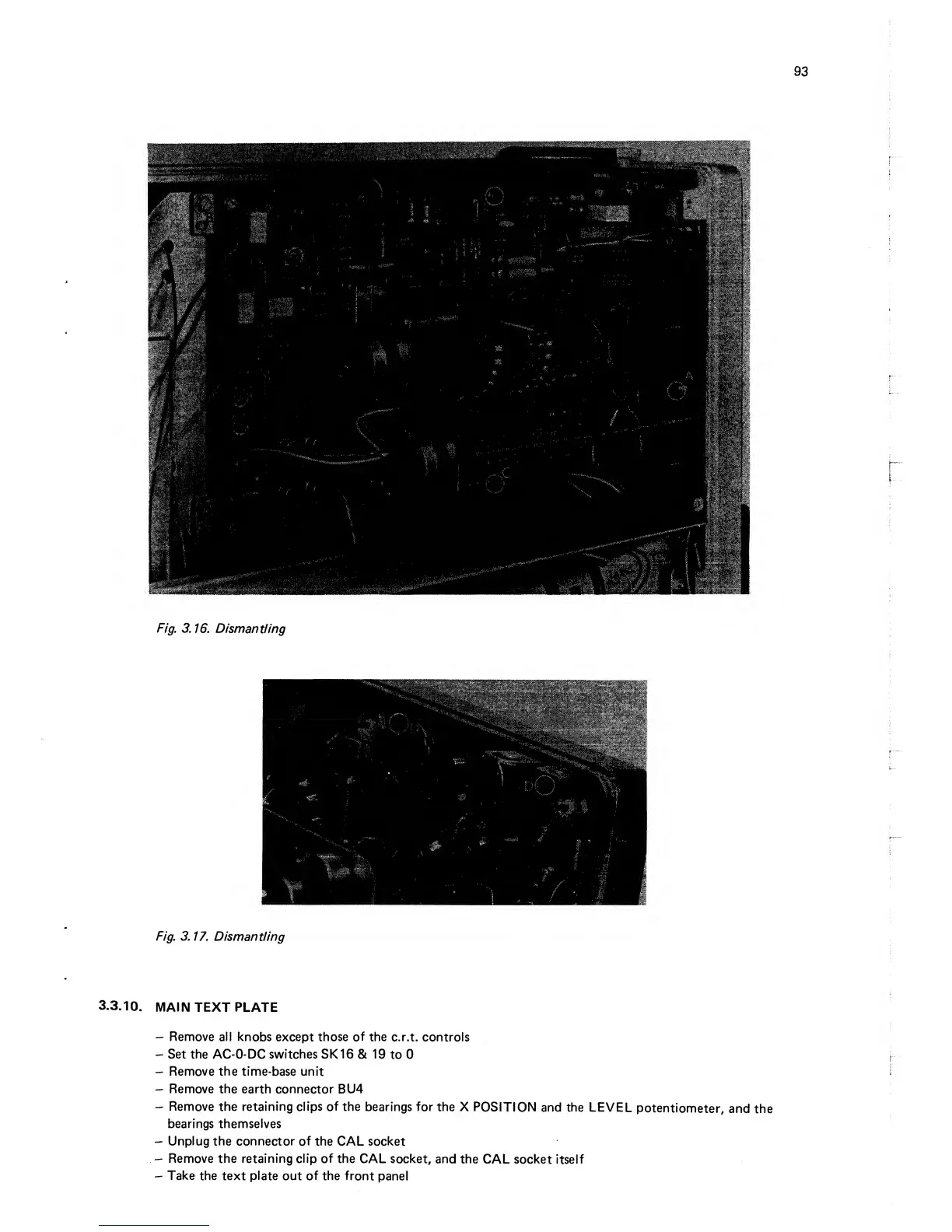

Fig.
3.
16. Dismantling
Fig.
3.
17. Dismantling
3.3.
10.
MAI N
TEXT PLATE
-
Remove
ail knobs except
those
of the
c.r.t. controls
-
Set the
AC-0-
DC
switches SK16
& 19
to 0
-
Remove the
time-base unit
-
Remove the
earth connector BU4
-
Remove
the retaining
clips
of the
bearings for the X
POSITION
and the
LEVEL
potentiometer,
and
the
bearings themselves
-
Unplug the connector
of the
CAL
socket
-
Remove the retaining clip of the
CAL socket,
and
the
CAL socket
itself
-
Take
the text plate
out
of the front
panel
