Philips pm3232 - 2 Kv Attenuator Probe Set PM 9358

104
3.
5.
5.1.
Technical
data
Attenuation
Input
resistance
Input
capacitance
Max.
allowable input
voltage
D.C.
A.C.
peak-to-peak
A.C.
peak
+
D.C.
Dimensions
probe
body
cable
box
1 : 1
1 MOhm
45
±
5
pF
+
input
cap.
of
measuring instrument
500 V
500
V
divided
by
frequencies in MHz
or
500
V
whichever
is
smaller
500
V
L
W
H
105
mm
1
.5 m
230
104 24
mm

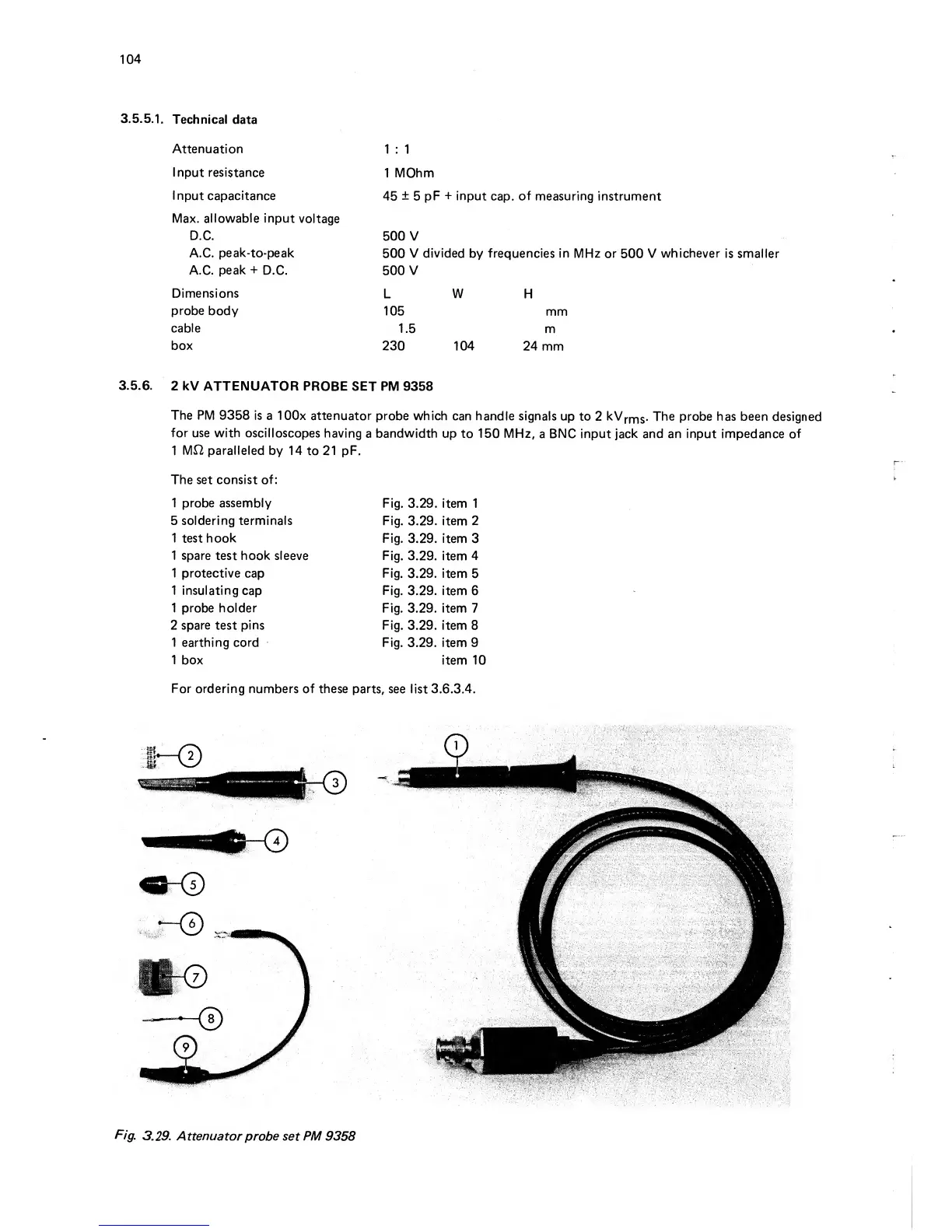

3.5.6.
2
kV
ATTENUATOR
PROBE SET PM 9358
The
PM
9358 is
a
lOOx
attenuator
probe which
can handle signals
up
to 2
kV^ms-
The probe
has been
designed
for use
with oscilloscopes
having
a
bandwidth
up to 150
MHz,
a
BNC input
jack
and an Input impedance
of
1
MrZ paralleled
by 14
to
21
pF.
The set consist
of:
1
probe assembly
Fig.
3.29. item 1
5 soldering terminals
Fig. 3.29. Item 2
1 test
hook
Fig.
3.29. item 3
1
spare test hook sleeve
Fig. 3.29. Item
4
1
protective
cap Fig.
3.29. item
5
1 Insulating
cap Fig.
3.29. item 6
1
probe
holder
Fig.
3.29. Item 7
2
spare
test
pins
Fig.
3.29.
item
8
1
earthing cord Fig.
3.29. item 9
1 box
item 10
For ordering
numbers of these parts, see
list 3.G.3.4.
