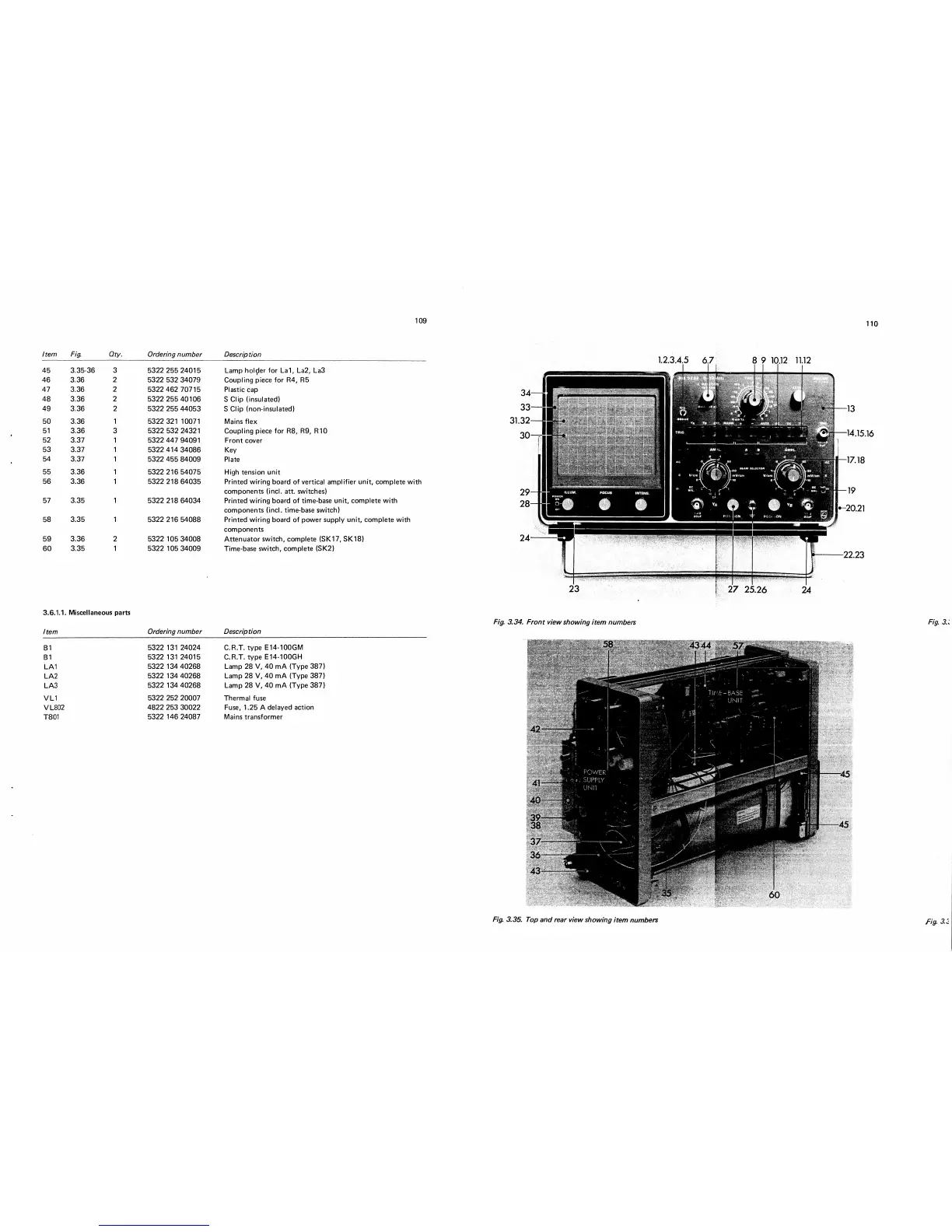

Philips pm3232 - Miscellaneous Parts; Front View Showing Item Numbers; Top and Rear View Showing Item Numbers

109
110
Item
Fig.
Qty.
Ordering
number
Description
45
3.35-36
3
5322 255 24015
Lamp
holder for Lai,
La2, La3
46 3.36 2 5322
532 34079 Coupling
piece for R4,
R5
47 3.36
2
5322 462
70715 Plastic
cap
48 3.36
2
5322 255
40106
S
Clip
(insulated)
49 3.36
2 5322 255 44053
S
Clip (non-insulated)
50 3.36
1
5322 321
10071 Mains flex
51 3.36 3
5322
532 24321
Coupling piece
for
R8, R9, RIO
52 3.37 1
5322 447
94091
Front cover
53
3.37
1
5322
414
34086
Key
54
3.37 1
5322
455 84009
Plate
55 3.36 1
5322 216
54075
High tension unit
56 3.36 1
5322 218 64035
Printed
wiring
board of vertical amplifier
unit,
complete with
components
(inch
att. switches)
57 3.35
1
5322 218 64034
Printed
wiring
board
of time-base unit,
complete with
components
(inch
time-base switch)
58
3.35
1
5322 216 54088 Printed wiring
board of
power supply unit, complete with
components
59
3.36
2 5322 105 34008
Attenuator
switch, complete (SKI
7,
SKI
8)
60
3.35 1 5322 105
34009 Time-base
switch, complete (SK2)
3.6.1.
1.
Miscellaneous parts
Item
Ordering number Description
B1
5322 131 24024 C.R.T. type
E14-100GM
B1
5322 131 24015
C.R.T. type
E14-100GH
LAI
5322
134
40268 Lamp 28
V, 40
mA
(Type
387)
LA2
5322
134
40268 Lamp 28
V, 40 mA (Type
387)
LA3
5322
134
40268
Lamp 28 V,
40
mA
(Type
387)
VL1
5322 252 20007
Thermal fuse
VL802
4822 253 30022 Fuse, 1.25
A
delayed action
T801
5322
146 24087
Mains transformer
Fig.
3.34. Front view
showing
item numbers
Fig.
3.i
Fig.
3.35.
Top
and
rear
view
showing
item
numbers
fig.
