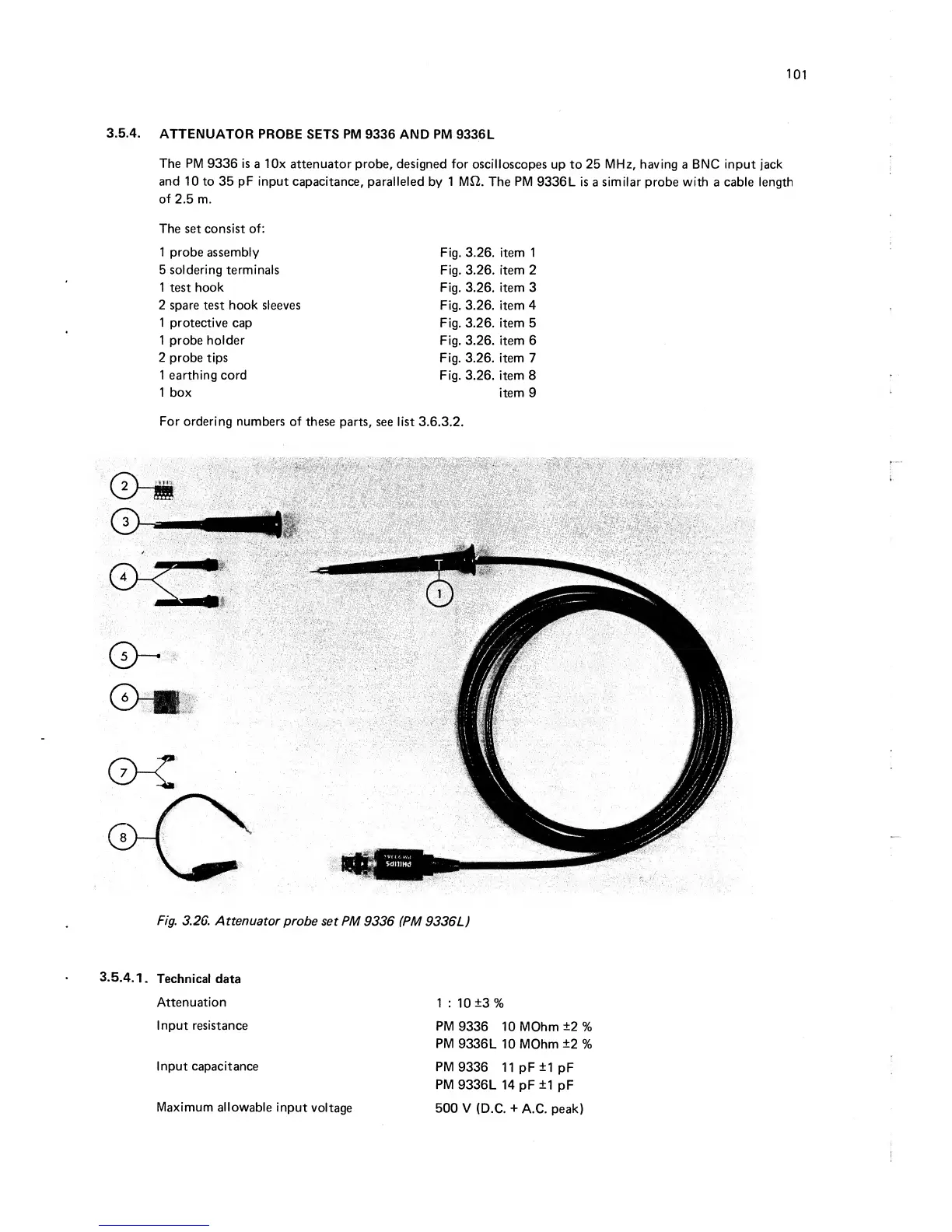

Philips pm3232 - Attenuator Probe Sets PM 9336 and PM 9336 L

101
3.5.4.
ATTENUATOR
PROBE
SETS
PM
9336 AND PM
9336L
The
PM
9336 is
a
1
0x
attenuator probe, designed for
oscilloscopes
up
to
25 MHz, having
a
BNC input
jack
and 10
to
35
pF input
capacitance, paralleled
by
1
M12. The
PM
9336L is
a
similar
probe
with
a
cable
length
of
2.5 m.
The set consist of:
1
probe assembly
5 soldering terminals
1
test hook
2 spare test hook sleeves
1
protective
cap
1
probe
holder
2
probe tips
1
earthing cord
1
box
Fig. 3.26. item 1
Fig.
3.26.
item 2
Fig.
3.26.
Item 3
Fig. 3.26.
Item
4
Fig.
3.26. Item 5
Fig. 3.26.
Item
6
Fig. 3.26.
Item 7
Fig.
3.26. item 8
Item 9
For ordering
numbers of
these parts,
see
list
3.
6. 3. 2.
Fig. 3.26.
Attenuator
probe
set PM
9336
(PM
9336
L)
3.5.4.I.
Technical data
Attenuation
Input resistance
Input
capacitance
1 : 10±3
%
PM
9336 10
MOhm±2%
PM
9336L lOMOhm
±2%
PM
9336
11
pF±1pF
PM
9336L
14
pF
±1
pF
500 V
(D.C.
+
A.C. peak)
Maximum
allowable input
voltage
