Philips pm3232 - 1:1 Probe Set PM 9335

103
3.5.5.
1 :
1 PROBE
SET PM
9335
The PM
9335
is a passive probe
without
signal
attenuation for use
with oscilloscope,
counters
and voltmeters
having
a high input
impedance
and
a BNC input socket.
The
cable
design
Is
such
that
the reflections
due to
the
instrument's
capacitive load
are absorbed.
The
useful frequency
range of
this probe is restricted
to
d.c.
and l.f.
applications (up
to
10 MHz).
The
set consist of:
1
test hook
Fig.
3.28. item
2 spare test hook sleeves
Fig.
3.28. item
2 spare
probe
tips
Fig. 3.28.
item
1
protective
cap
Fig. 3.28.
item
1
earthing lead
Fig.
3.28. item
1
probe
holder
Fig.
3.28. Item
1
probe
assembly
Fig. 3.28.
item
1 box
item
For
ordering numbers
of these
parts, see list
3. 6. 3.
3.
ITEM
2
ITEM 4
ITEM
5

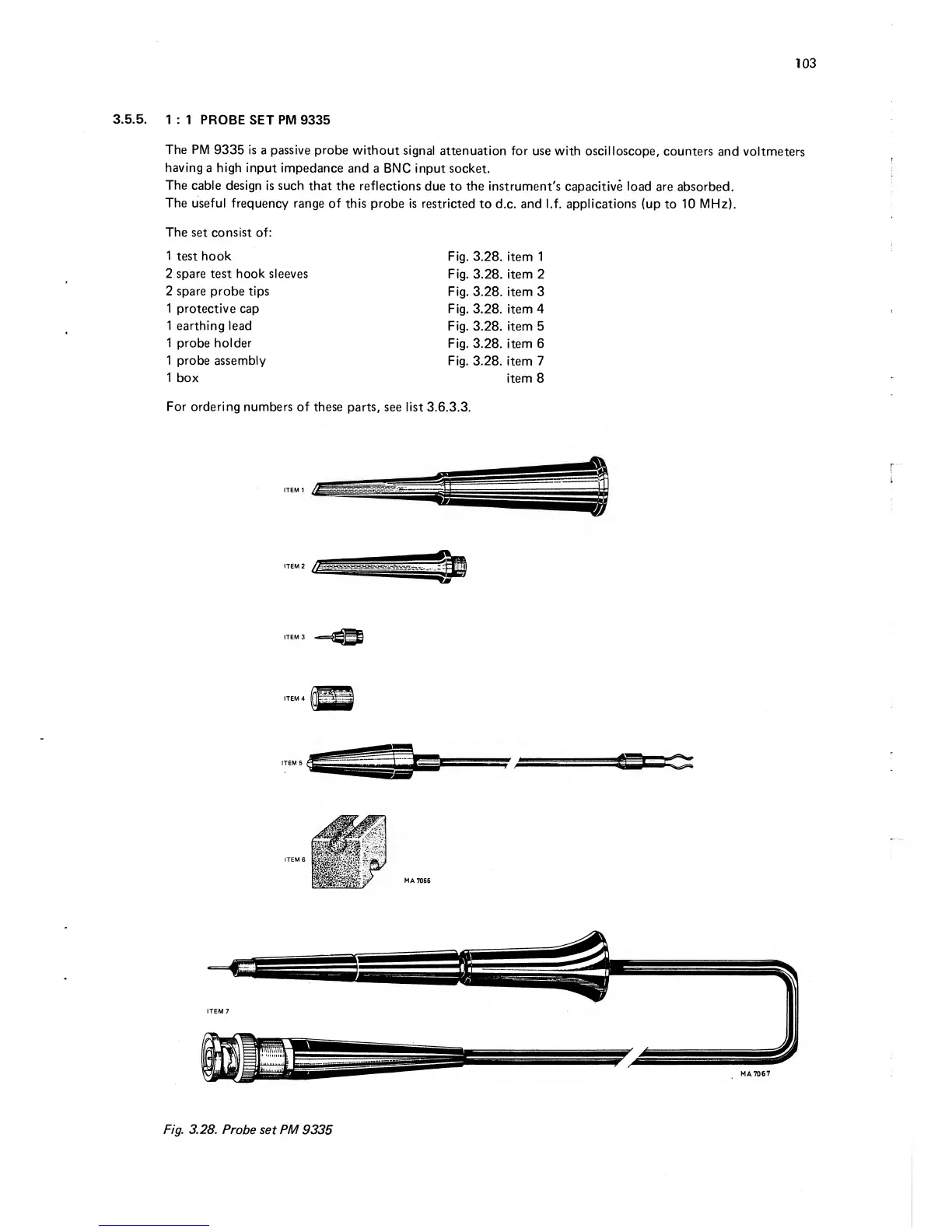

Fig.
3.28.
Probe
set
PM
9335
