102
3.5.4.2.
Adjustment
The
measuring probe has
been
adjusted and checked
by
the factory. However,
to match the
probe to
your
oscilloscope,
the
following
manipulation is
necessary.
Connect
the measuring pin
to
socket
CAL
of the oscilloscope.
A
trimmer
can be adjusted through a
hole
In
the
compensation box
to
obtain optimum
square^wave response.
See the
following
examples
over
under
compensated
correct
compensated
MA8329

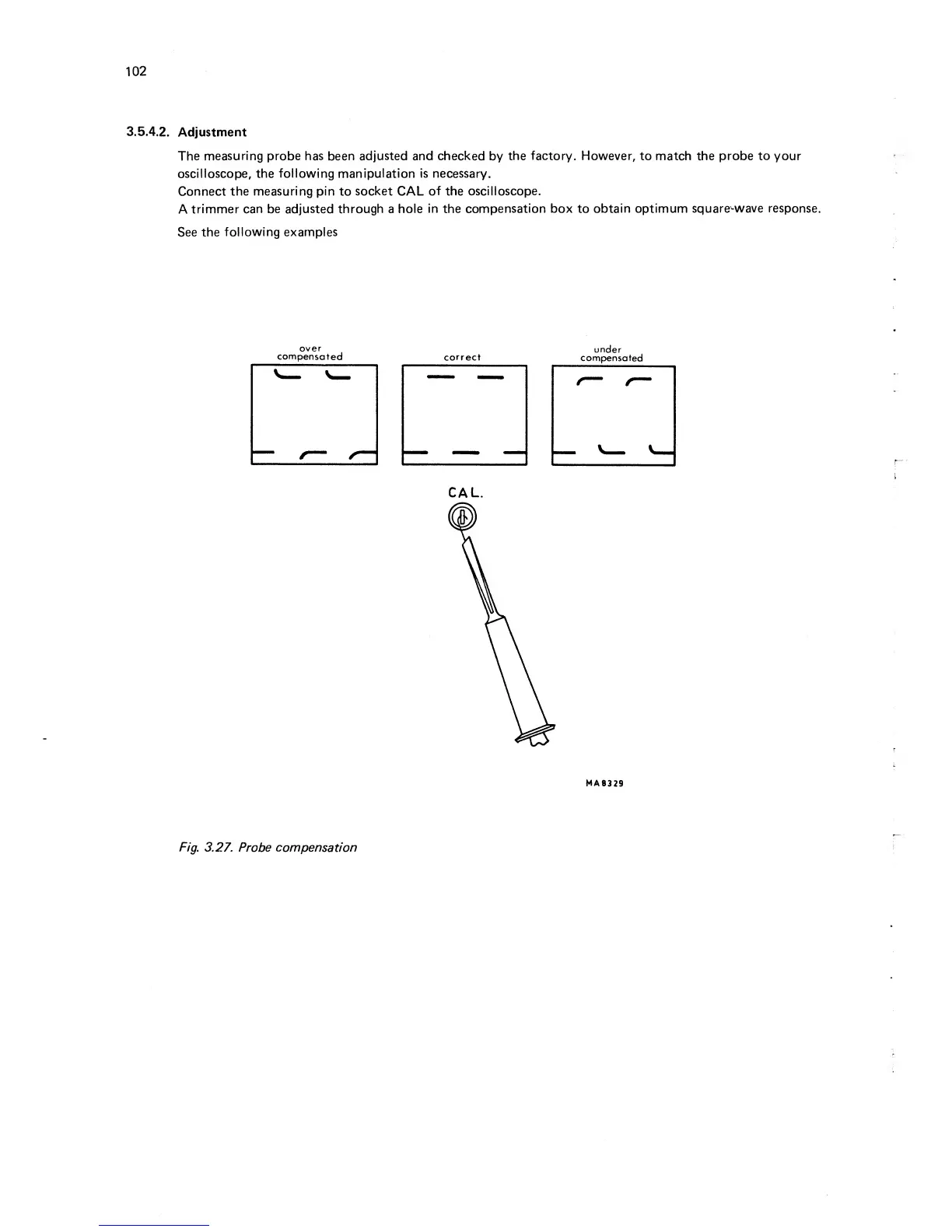

Fig.
3.27.
Probe compensation
