3.5.3.
ATTENUATOR PROBE SETS
PM
9326 and
PM
9327 (Fig.
3.24.)
These passive
probe
sets
are equal but
for the length
of the probe
cable,
which is
1,15
m for the
PM
9326
and 2 m for the
PM
9327.
The sets
consist of:
1
probe
cable Fig.
3.24.
item
1
earth
lead
15
cm Fig. 3.24. item
1
earth lead
30 cm
Fig. 3.24.
item
1 measuring
probe
1:1
(black) Fig. 3.24. item
1 test pin
Fig.
3.24. item
1
test
hook Fig. 3.24. item
1 attenuator
probe
1:10
(grey) Fig. 3.24. item
1 test clip
Fig. 3.24. item
1
box
Fig. 3.24. item
For ordering
numbers
of these parts, see
list 3.6.3.
1.
The
measuring probe
and the
earth
lead
can be
simply
pulled
from the cable. The
test clip, test
pin and
test
hook
are
screwed on
to
the
measuring probe.

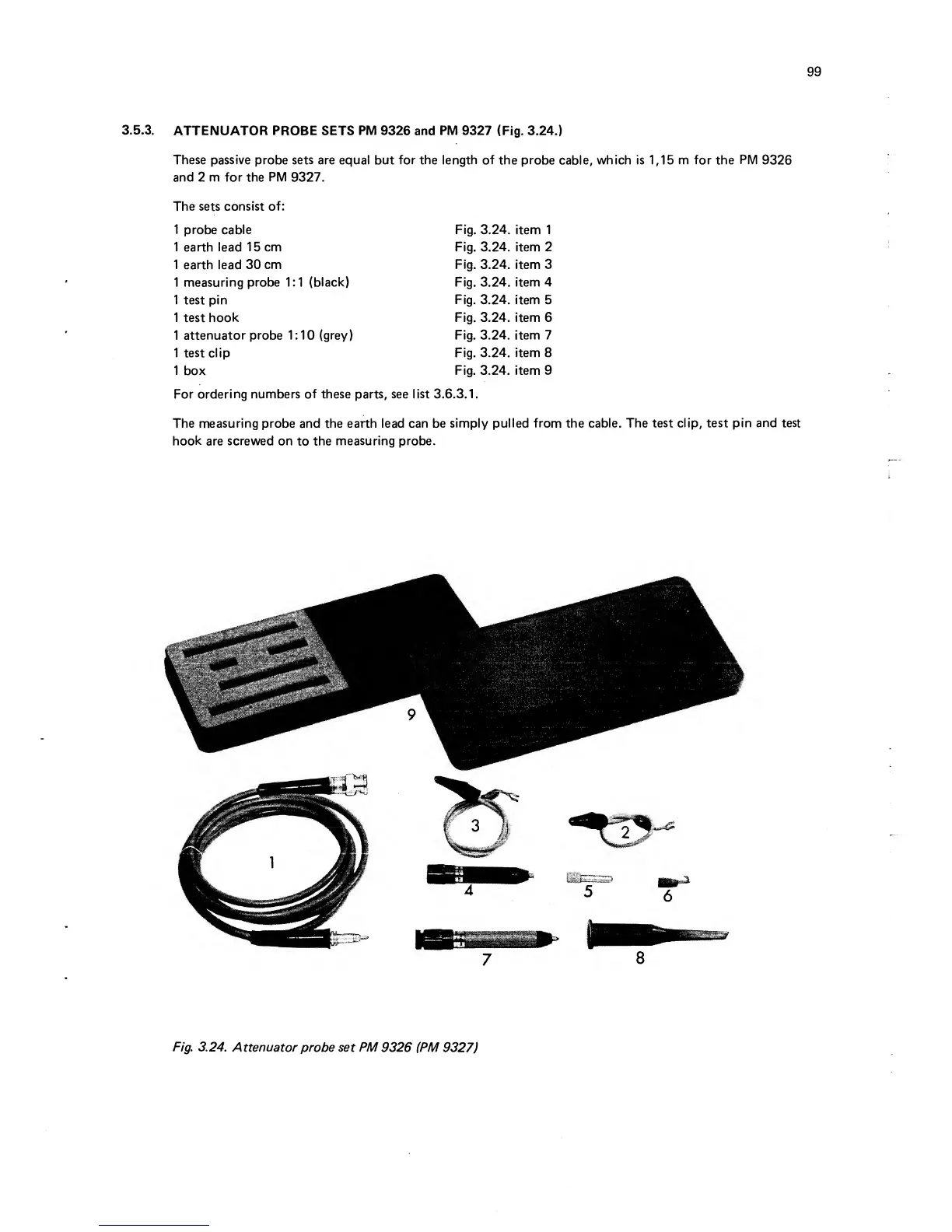

Fig.
3.24. Attenuator
probe set PM
9326
(PM
9327)
