Philips Q552.2E - Wiring Diagram Blockbuster 37

EN 72Q552.2E LA 9.
Block Diagrams
2011-Jun-01
back to
div. table

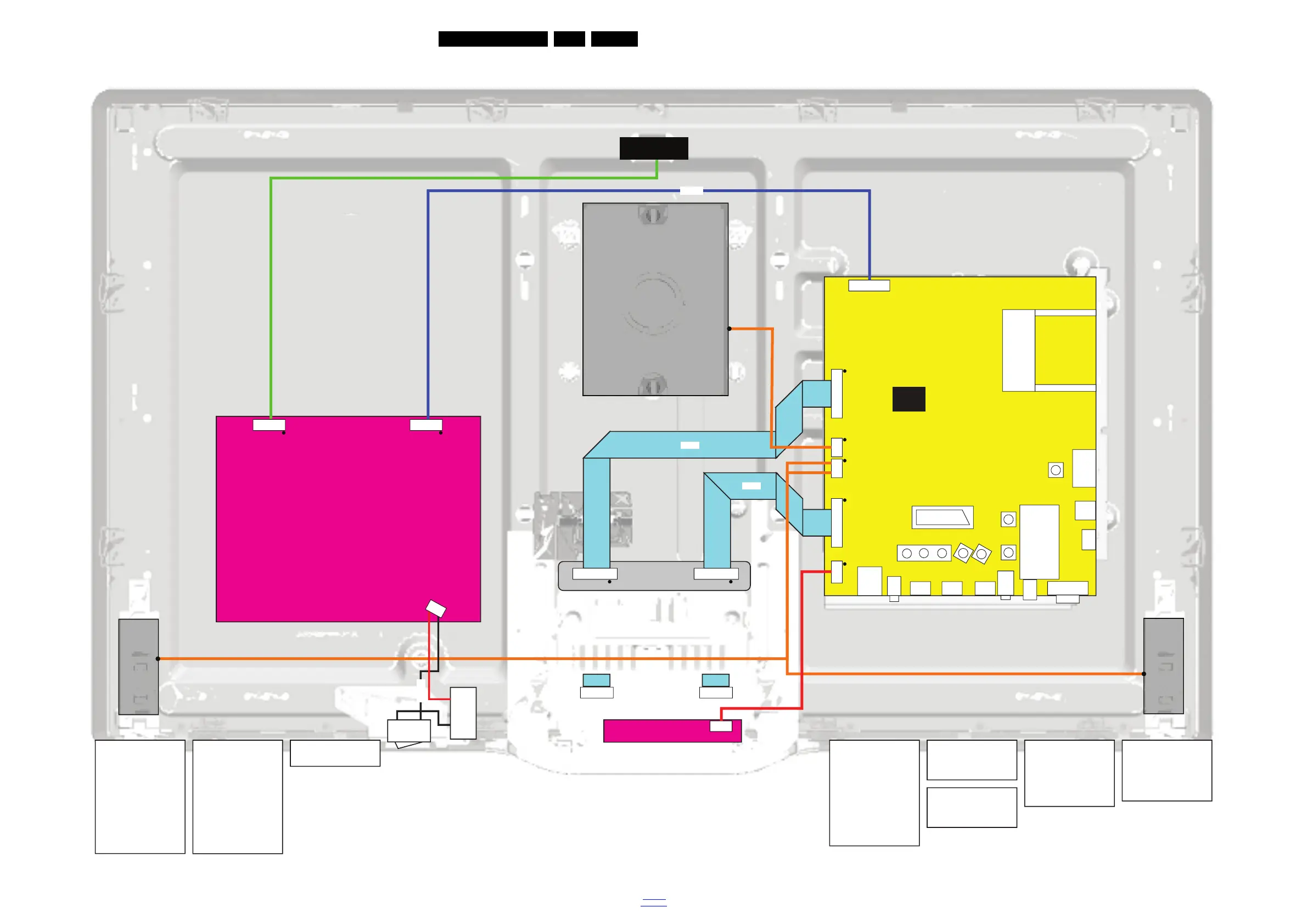

9-2 Wiring diagram Blockbuster 37"
LCD DISPLAY
(1004)
MAIN POWER SUPPLY
37" FSP110-4FS01
(1005)
LOUDSPEAKER
(5213)
LOUDSPEAKER
(5216)
LOUDSPEAKER
(5216)
1735
4P
1M19
8P
1D38
3P
1M95
14P
SSB
3139 123 6495.x
(1150)
B
SD-CARD
READER
USBUSB
ETHER
NET
TUNER
PHONE
SPDIF
HDMI
HDMIHDMIHDMI
VGA
1316
10P
1M95
14P
MAINS
SWITCH
(8308)
SCART
INLET
8M95
8G51
8G50
19100_809_110211.eps
110309
TO DISPLAY
51P
TO DISPLAY
41P
C2 C1
IR / LED BOARD
(1108)
J1
8P
WIRING DIAGRAM 37" BLOCKBUSTER
1M19 (B09A)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3-STA ND BY
6. LED-1
7. KEYBOARD
8. +5V
1735 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. GND-AUDIO
4. RIGHT-SPEAKER
1D38 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. RIGHT-SPEAKER
1308 (PSU)
1. N
2. L
1M95 (B03C)
1. +3V3-STANDBY
2. STANDBY
3. GND
4. GND
5. +12VIN
6. +12VIN
7. +24V-AUDIO-POWER
8. GND
9. LAMP-ON
10. BACKLIGHT-PWM_BL-VS
11. BACKLIGHT-BOOST
12. POWER-OK
13. +24V
GND
1M95 (PSU)
1. +3V3STDBY
2. STANDBY
3. GND
4. GND
5. +12V
6. +12V
7. +VSND
8. GND_SND
9. BL-ON-OFF
10. BL-DIM1
11. BL-I-CTRL
12. POK
13. +24V
14. GND1
1316 (PSU)
1. ANODE 1
2. NC
3. CATHODE 1
4. GND
5. ANODE 2
6. NC
7. CATHODE 2
8. NC
9. ANODE 3
10. NC
11. CATHODE 3
12. NC
13. ANODE 4
14. NC
15. CATHODE 4
1G51 (B06B)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51. CTRL-DISP
TO DISPLAY
SUPPLY
8308
1G50
41P
1G51
51P
2P
1308
