Philips Q552.2E - Wiring Diagram Sundance 32

EN 74Q552.2E LA 9.
Block Diagrams
2011-Jun-01
back to
div. table

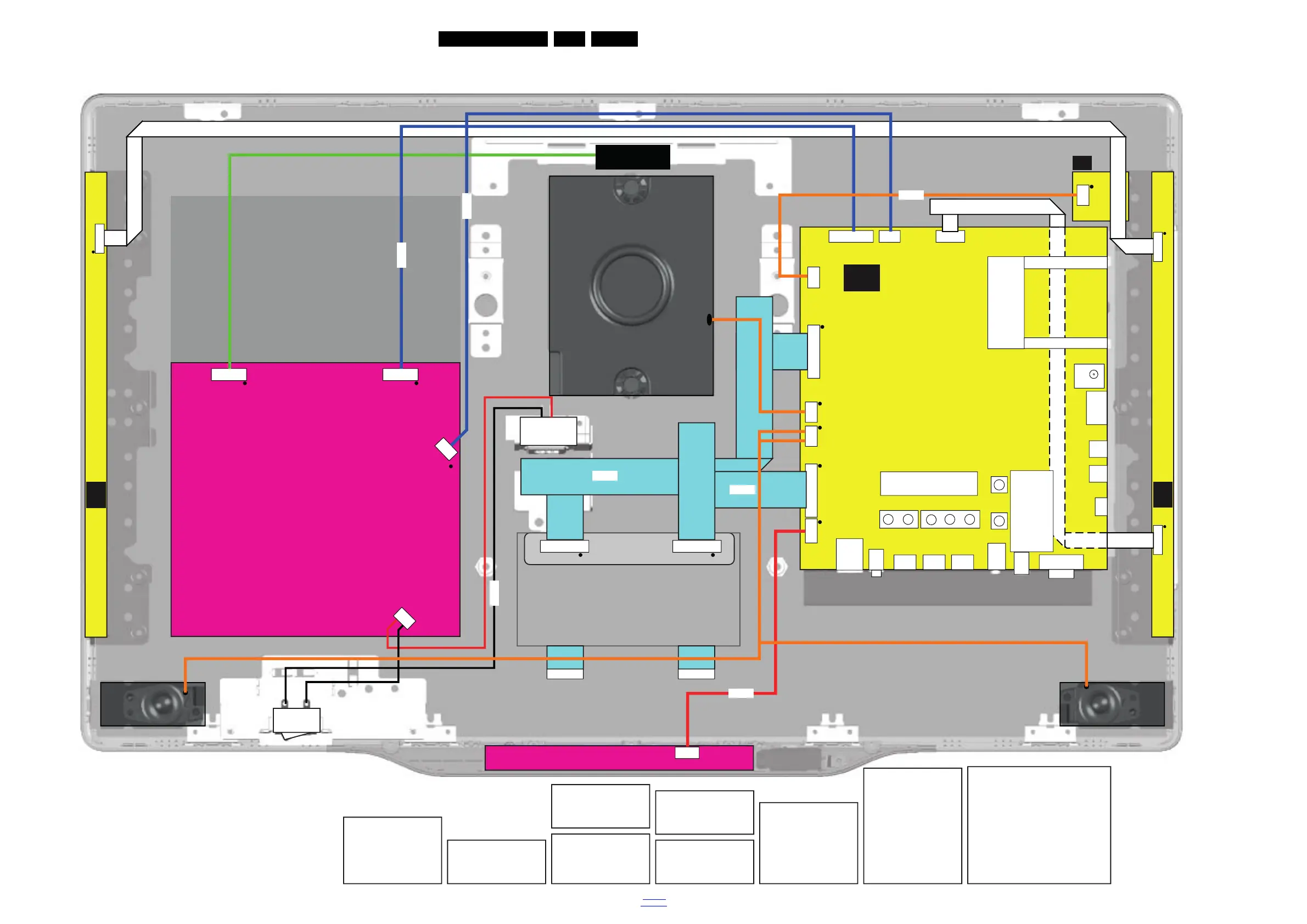

9-4 Wiring diagram Sundance 32"
LCD DISPLAY
(1004)
MAIN POWER SUPPLY
32
" FSP096-4FS01
(1005)
LOUDSPEAKER
(5213)
LOUDSPEAKER
(5216)
LOUDSPEAKER
(5216)
1M20
8P
1D38
3P
1T02
4P
1735
4P
ETHER
NET
SPDIF
HDMIHDMIHDMI
VGA
1316
10P
1M95
14P
1M09
4P
MAINS
SWITCH
(8318)
INLET
19100_819_110505.eps
110506
TO DISPLAY
51P
TO DISPLAY
41P
IR/LED/CONTROL BOARD
( 1108 )
J1
8P
WIRING DIAGRAM 32" SUNDANCE
TO DISPLAY
SUPPLY
1G50
41P
1G51
51P
2P
1308
AMBILIGHT MODULE (1162)
AL
18P
1M86
AMBILIGHT MODULE (1161)
AL
1M85
18P
1M83
26P
TUNER
8M84
8M59
SSB
3139 123 6519.x
(1150)
B
8308
1M95
14P
1M99
4P
1M71
4P
1M59
26P
1M20 (B09A)
1. LIGHT-SENSOR
2. LED-1
3. LED-2
4. GND
5. KEYBOARD
6. +3V3-STANDBY
7. RC
8. SCL-SET
9. SDA-SET
1D38 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. RIGHT-SPEAKER
1F24 (B01C)
1. +5V
2. USB-WIFI-DDn
3. USB-WIFI-DDP
4. GND
5. GND
1G51 (B06B)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51. N.C.
1M59 (B09A)
1. AMBI-SPI-CLK-OUT
2. GND
3. AMBI-SPI-SDO-OUT
4. AMBI-SPI-SDI-OUT-GI
5. V-AMBI
6. AMBI-PWM-CLK_B2
7. GND
8. AMBI-SPI-CS-OUTn_R2
9. AMBI-LATCH1_G2
10. V-AMBI
11. AMBI-BLANK_R1
12. AMBI-PROG_B1
13. AMBI-LATCH2_DIS
14. AMBI-TEMP
15. GND_AL
16. GND_AL
17. GND_AL
18. GND_AL
19. GND_AL
20. N.C.
21. +12V_AL
22. +12V_AL
23. +12V_AL
24. +12V_AL
25. +12V_AL
26. +12V_AL
1M95 (B03C)
1. +3V3-STANDBY
2. STANDBY
3. GND
4. GND
5. +12VIN
6. +12VIN
7. +24V-AUDIO-POWER
8. GND
9. LAMP-ON
10. BACKLIGHT-PWM_BL-VS
11. BACKLIGHT-BOOST
12. POWER-OK
13. +24V
GND
1735 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. GND-AUDIO
4. RIGHT-SPEAKER
1M99 (B03C)
1. GND_AL
2. +12V_AL
3. GND_AL
4. +12V_AL
1M71 (B09A)
1. SCL-BL
2. GND
3. SDA-BL
4. +3V3
CN2CN1
8M95
8M59
SD-CARD
READER
USB USB
HDMI
SCART
8G50
8M20
8G51
8M09
TEMP. SENSOR
(1027)
TS
8M71
