Philips Q552.2E - 4 Mechanical Instructions

Mechanical Instructions
EN 13Q552.2E LA 4.
2011-Jun-01
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing Blockbuster Styling (xxPFL66xx/xx series)
4.2 Service Positions
4.3 Assy/Panel Removal Blockbuster Styling (xxPFL6xxx/xx
series)
4.4 Assy/Panel Removal Sundance Styling (xxPFL7xxx/xx
series)
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing Blockbuster Styling (xxPFL66xx/xx series)

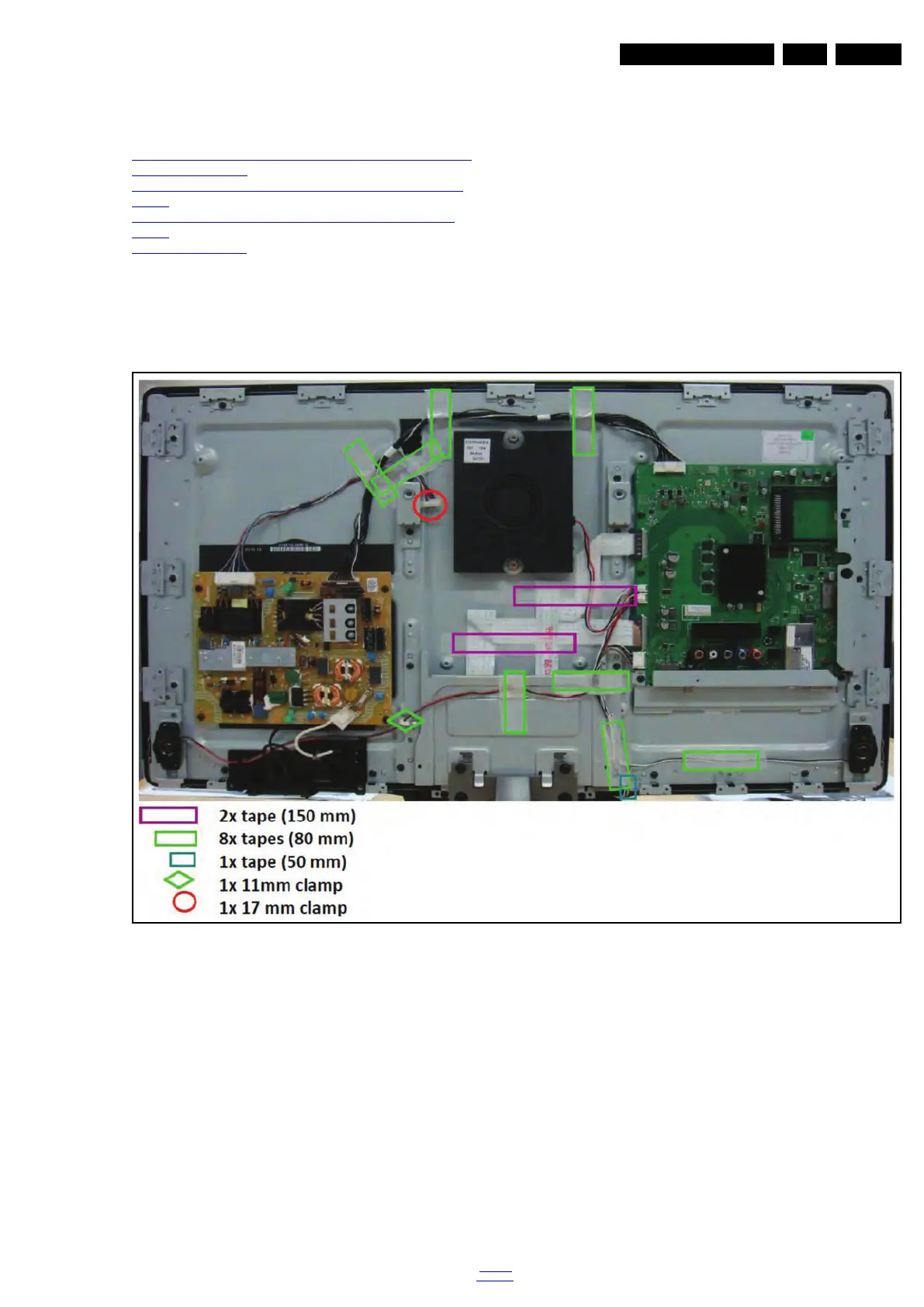

Figure 4-1 Cable dressing 32PFL6606x/xx (Blockbuster)
19100_044_110214.eps
110214
