Mechanical Instructions
EN 17Q552.2E LA 4.
2011-Jun-01
back to
div. table

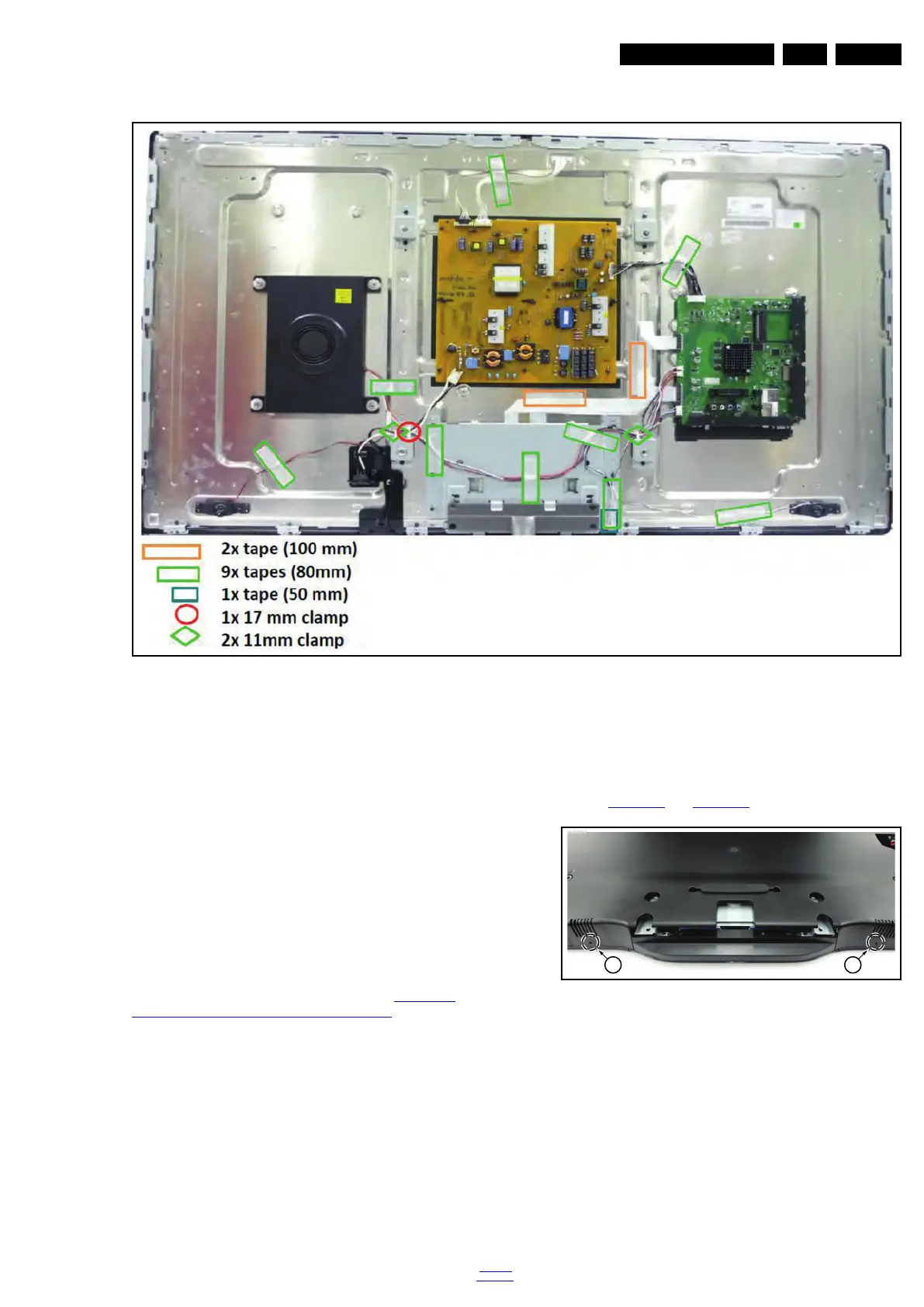

Figure 4-5 Cable dressing 55PFL6606x/xx (Blockbuster)
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assy/Panel Removal Blockbuster Styling
(xxPFL6xxx/xx series)
For the 40" and 46" Blockbuster sets, additional instructions
(rear cover removal) apply. Refer to subsection Additional
instructions for Blockbuster 40-/46PFL6606x/xx.
The instructions apply to the 37PFL6606H/12.
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
Note: it is not necessary to remove the stand while removing
the rear cover.
1. Remove all screws of the rear cover.
2. Lift the rear cover from the TV. Make sure that wires and
flat coils are not damaged while lifting the rear cover from
the set.
Additional instructions for Blockbuster 40-/46PFL6606x/xx
40"and 46"Blockbuster (40-/46PFL6606x/xx) sets have a
dedicated method to open the bottom catches when removing
the rear cover.
Refer to Figure 4-6
and Figure 4-7 for details.
Figure 4-6 Bottom catches 40" and 46" Blockbuster sets -1-
19101_002_110407.eps
110407
19100_048_110216.eps
110216
1 1
