Philips Q552.2E - Wiring Diagram Sundance 42 - 47

Block Diagrams
EN 75Q552.2E LA 9.
2011-Jun-01
back to
div. table

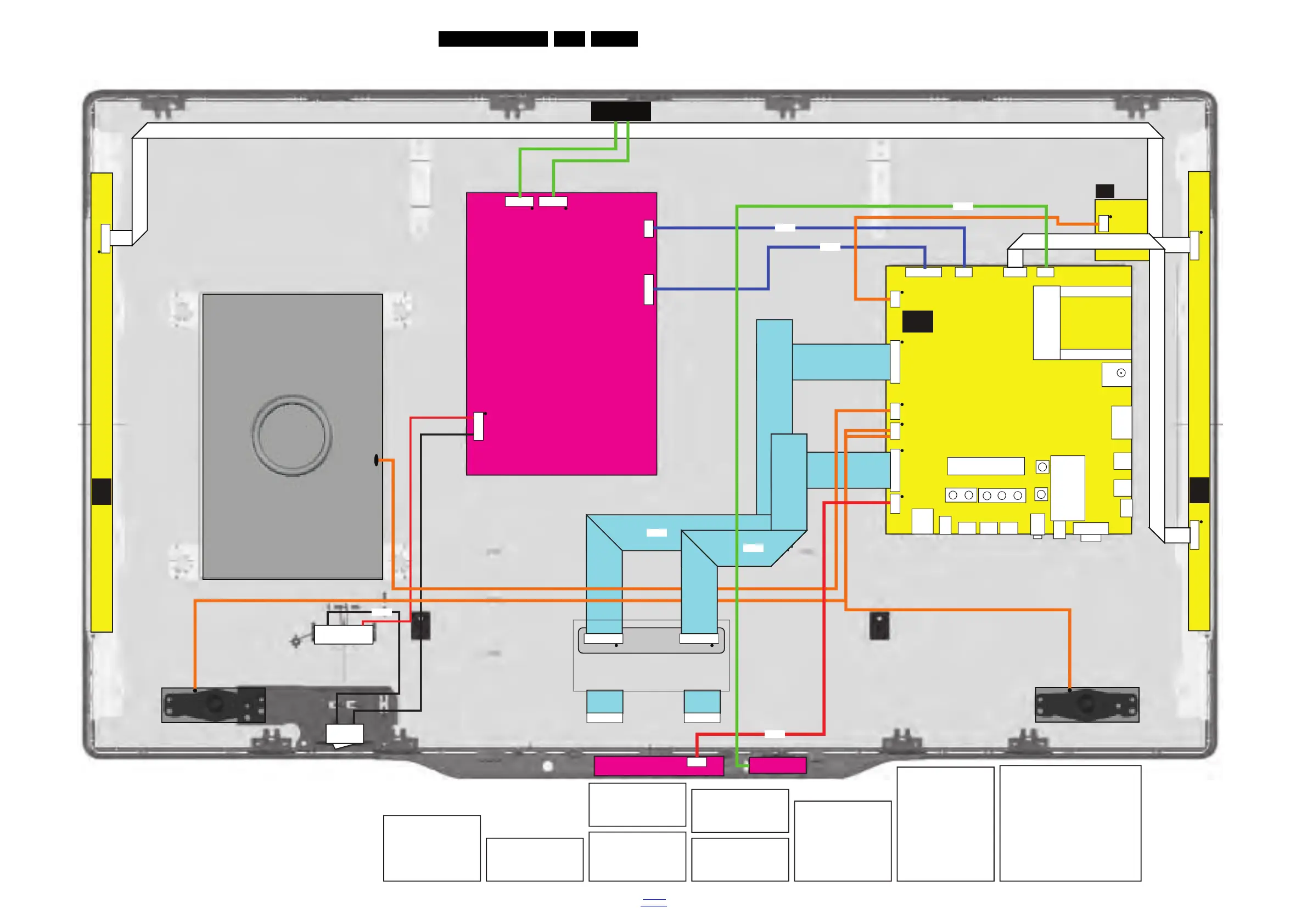

9-5 Wiring diagram Sundance 42" - 47"
LCD DISPLAY
(1004)
MAIN POWER SUPPLY
42
" DPS-139AP
47
" DPS-186FP
(1005)
LOUDSPEAKER
(5213)
LOUDSPEAKER
(5216)
LOUDSPEAKER
(5216)
1M20
8P
1735
4P
1D38
3P
1M71
4P
1T02
4P
1M95
14P
1M99
4P
1F24
5P
1M59
26P
1G50
41P
1G51
51P
SSB
3139 123 6519.x
(1150)
B
TEMP. SENSOR
(1027)
TS
SD-CARD
READER
USB USB
ETHER
NET
SPDIF
HDMI
HDMIHDMI
SCART
HDMI
1316
10P
1319
10P
MAINS
SWITCH
(8318)
14P
1M99
4P
1M09
1308
2P
INLET
8308
8M95
8G50
19100_818_110505.eps
110505
TO DISPLAY
41P
TO DISPLAY
51P
CN2CN1
IR/LED/CONTROL BOARD
(1108)
J1
8P
WIRING DIAGRAM 42"- 47" SUNDANCE
1M20 (B09A)
1. LIGHT-SENSOR
2. LED-1
3. LED-2
4. GND
5. KEYBOARD
6. +3V3-STA N DB Y
7. RC
8. SCL-SET
9. SDA-SET
1D38 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. RIGHT-SPEAKER
1F24 (B01C)
1. +5V
2. USB-WIFI-DDn
3. USB-WIFI-DDP
4. GND
5. GND
1G51 (B06B)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51. N.C.
LED
POWER
1M59 (B09A)
1. AMBI-SPI-CLK-OUT
2. GND
3. AMBI-SPI-SDO-OUT
4. AMBI-SPI-SDI-OUT-GI
5. V-AMBI
6. AMBI-PWM-CLK_B2
7. GND
8. AMBI-SPI-CS-OUTn_R2
9. AMBI-LATCH1_G2
10. V-AMBI
11. AMBI-BLANK_R1
12. AMBI-PROG_B1
13. AMBI-LATCH2_DIS
14. AMBI-TEMP
15. GND_AL
16. GND_AL
17. GND_AL
18. GND_AL
19. GND_AL
20. N.C.
21. +12V_AL
22. +12V_AL
23. +12V_AL
24. +12V_AL
25. +12V_AL
26. +12V_AL
1M95 (B03C)
1. +3V3-STANDBY
2. STANDBY
3. GND
4. GND
5. +12VIN
6. +12VIN
7. +24V-AUDIO-POWER
8. GND
9. LAMP-ON
10. BACKLIGHT-PWM_BL-VS
11. BACKLIGHT-BOOST
12. POWER-OK
13. +24V
GND
AMBILIGHT MODULE (1163)
AL
26P
1M83
AMBILIGHT MODULE (1163)
AL
1M84
26P
1M83
26P
TUNER
VGA
8G51
8M84
8M59
WIFI MODULE
(1115)
8M99
8M20
1735 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. GND-AUDIO
4. RIGHT-SPEAKER
1M99 (B03C)
1. GND_AL
2. +12V_AL
3. GND_AL
4. +12V_AL
1M71 (B09A)
1. SCL-BL
2. GND
3. SDA-BL
4. +3V3
8M71
