Philips Q552.2E - Page 8

Technical Specifications, Diversity, and Connections
EN 8 Q552.2E LA2.
2011-Jun-01
back to
div. table
5 - CLOCK Signal k
6 - GND2 Gnd H
7 - DAT0/D0 Signal jk
8 - DAT1/IRQ Signal jk
9 - DAT2/NC Signal jk
10 - CD Signal j
11 - GND Gnd H
12 - WP Signal j
13 - GND Gnd H
14 - GND Gnd H
17 - USB2.0

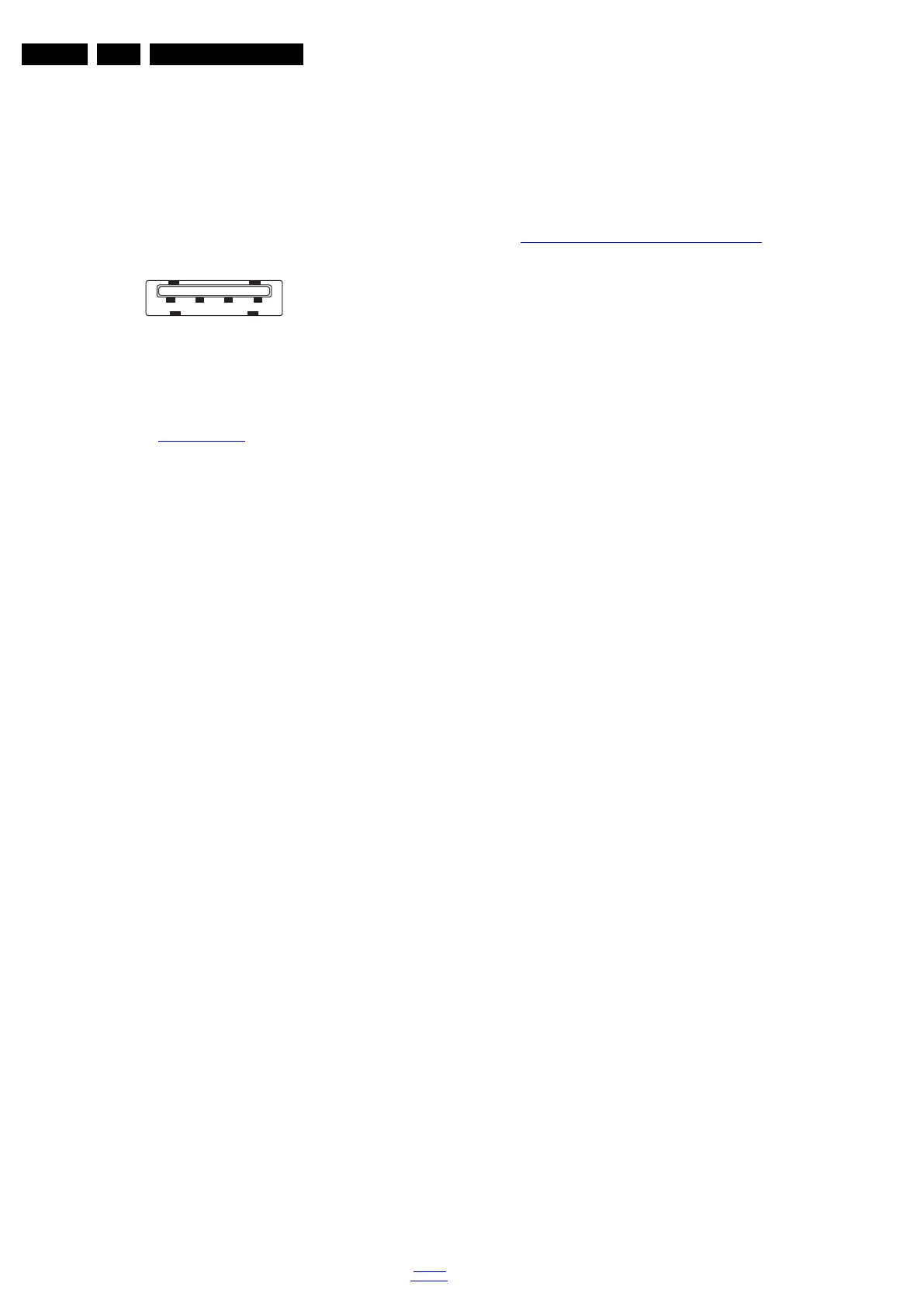

Figure 2-9 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
18 - Head phone (Output)
Bk - Head phone 32 - 600 ohm / 10 mW ot
19 - HDMI : Digital Video, Digital Audio - In
See 10 - HDMI 2: Digital Video, Digital Audio - In
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
1 2 3 4
10000_022_090121.eps
090121
