UM EN ILC 1XX
2-16
PHOENIX CONTACT 7805_en_02
• If you damage the connectors during removal:
Remove all the connectors of the Inline Controller.
• If Inline terminals are installed next to the Inline Controller (see Figure 2-12):

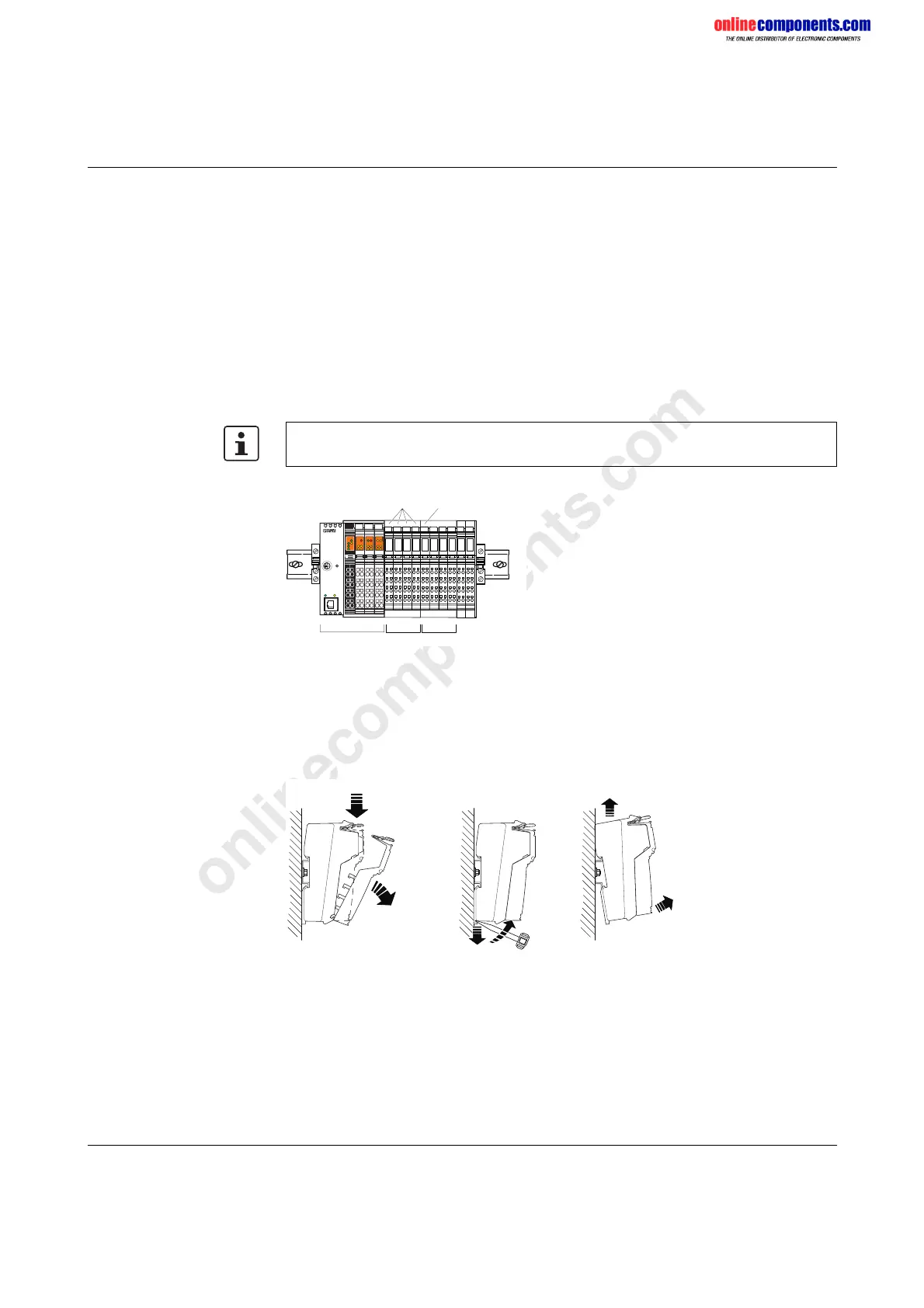

Figure 2-12 Connectors to be removed if terminals are installed next to the Inline
Controller
• Insert a tool in the base latches of the Inline Controller and pull gently upwards
(Figure 2-13, detail B). Pull out the Inline Controller from the DIN rail (detail C1, C2).
Figure 2-13 Removing the Inline Controller
• Lever up each connector by pressing on the back connector shaft latching
(Figure 2-13, detail A1).
• Remove the connectors (Figure 2-13, detail A2).
• Remove the following connectors:
– All connectors of the terminal directly connected (A1 to A4)
– The adjacent connector of the following terminal (B1)
• Remove the directly adjacent Inline terminal (A).
Observe the information provided in the above user manuals.
ILC 150 ETH AB
A1... A4
B1
74060008
AUTOMATIONWORX
UL
US
UM
FF
I1
I3
I2
I4
ILC 150 ETH
Order-No.: 2985330
HW/FW: 00/100
MAC Addr.:xx.xx.xx.xx
RESET
Q4
E
I5
I7
I6
I8
PRG
LNK
ACT
Q3
Q2Q1
RDY FAIL BSA PFFR
RUN / PROG
MRESET
STP
7406B009
A2
A1
A B
C2
C1
C
