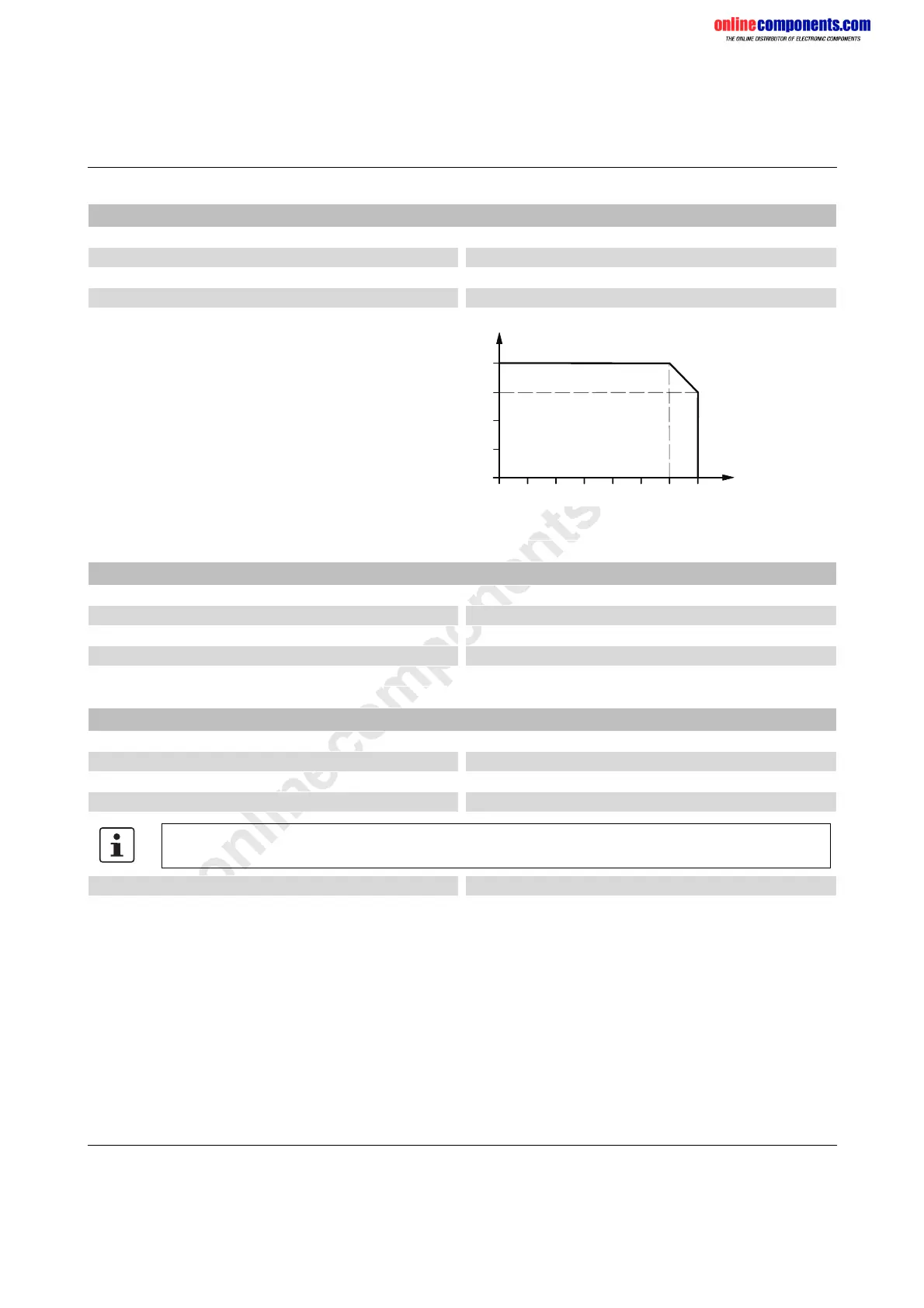

Technical data and ordering data
7805_en_02 PHOENIX CONTACT 5-3
7.5 V communications power (potential jumper)
Nominal value 7.5 V DC
Tolerance ±5%
Ripple ±1.5%
Maximum output current 0.8 A DC (internally protected against short circuit)
Derating
I [A] Logic current in A
T
A
[°C] Ambient temperature in °C
I [A]
0
T [°C]
A
0.2
0.4
0.6
0.8
-25 -15 -5 +5 +25
+35
+45 +55
7408A023
24 V analog supply (potential jumper)
Nominal value 24 V DC
Tolerance -15%/+20%
Ripple ±5%
Maximum output current 0.5 A DC
Safety equipment Electronic short-circuit protection
INTERBUS
Number of I/O points 4096, maximum
Number of data words 256, maximum
Number of bus segments 32, maximum
Transmission speed 500 kbps or 2 Mbps
Transmission reliability CR check (hamming distance: 4)
Protocol EN 50254
This speed is automatically set according to the connected Inline terminals. Only use terminals with a uniform transmission speed in the entire
connected Inline system (local bus and remote bus).
