Photon Systems Instruments FMT150 - Page 15

© PSI (Photon Systems Instruments), spol. s r. o.
15

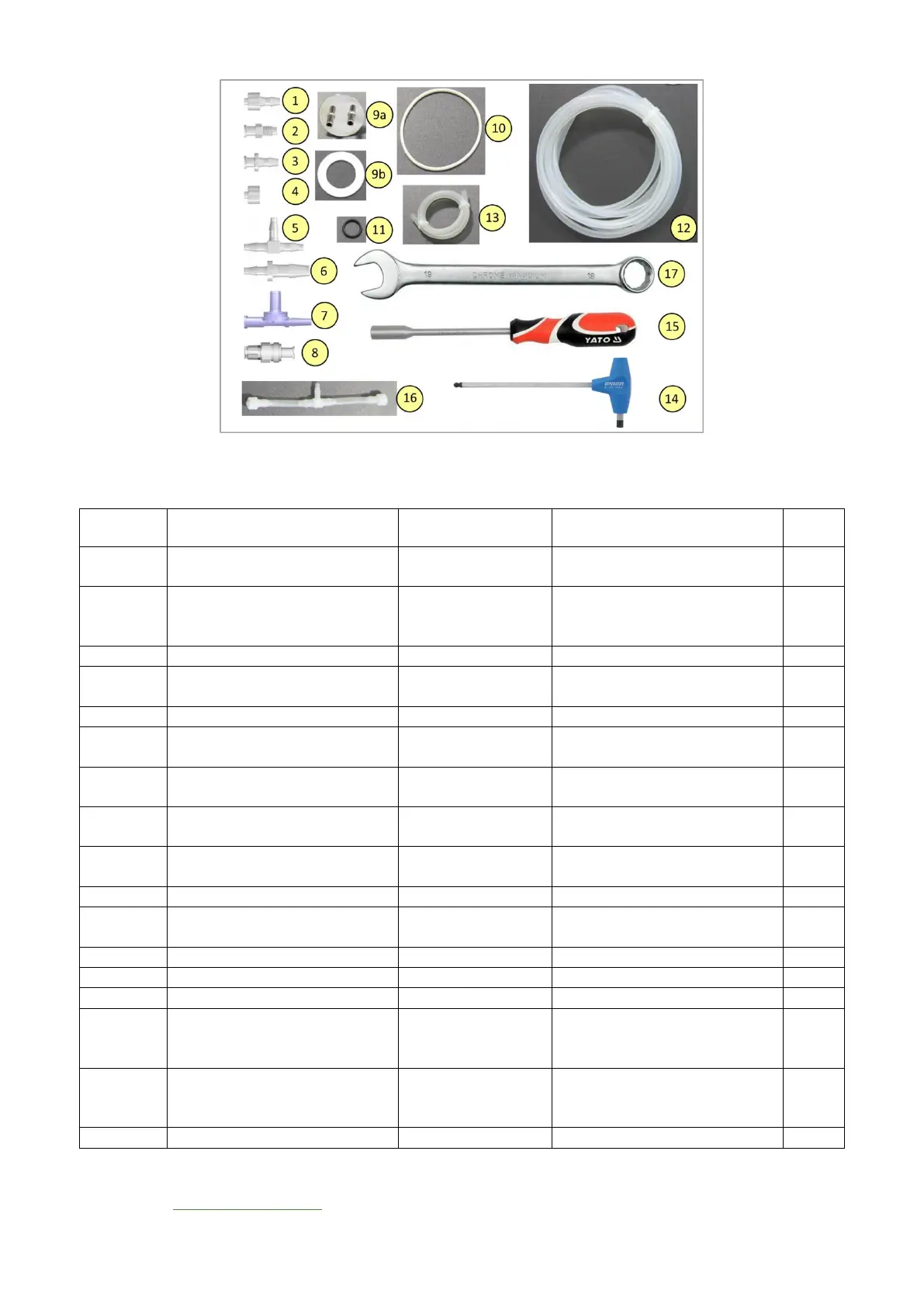

Fig. 5 Components of the Spare part kit. Numbers correspond to component number in Tab. 4.
Component
Number
Component Description
Specification
Explanation
Pcs
1
Male Luer Integral Lock MTLL240-
J1A*
5/32” (4.0 mm)
10
2
Female Luer Thread Style BSFTLL-
J1A*
5/16” Hex to 1/4-28
UNF
Bottom Sealing Thread
For fixing of stainless tubes in the
cuvette’s lid. The fittings are
modified - drilled with 3 mm drill bit
10
3
Female Luer Thread Style FTLL240-1*
5/32” (4.0 mm)
10
4
Male Luer Integral Lock Ring Plug
LP4-J1A*
10
5
Tee Tube Fitting T40-J1A*
5/32” (4.0 mm)
10
6
Reduction Tube Fitting 4060-1*
1/4” (6.4 mm) and
5/32” (4.0 mm)
5
7
Double Check Valve DCV118-001*
Safety valves that permit gases and
liquids to flow in only one direction
5
8
Check Valve SCV08053*
Check valve for with low priming
volume
5
9
Metal lid with ports (9a) with silicone
ring (9b)
Silicon ring 27x42x2
mm
For humidifier bottle
1+2
10
O-ring
75x3 mm
Sealing between lid and the vessel
5
11
O-ring
14x2 mm
Sealing to the openings for optional
sensors
10
12
Silicon Tubing
Ø 6/3 mm
Additional tubing
10 m
13
Silicone tubing
Ø 5/2 mm
Additional tubing
0.5 m
14
Hex Key
5 mm
To loosen up the screws of the lid
1
15
Spanner/Screwdriver
8 mm
For releasing filler screws in optional
sensor positions and luer connectors
in the vessel lid
1
16
T-tube (silicone tubing with 2 pcs of
Male Luer Lock and 1 pc of Tee Tube
Fitting)
Aeration tubing for the vessel
1
17
Wrench
19 mm
For releasing sensors
1
Tab. 4 List of Spare part kit – components shown in Fig. 5.
