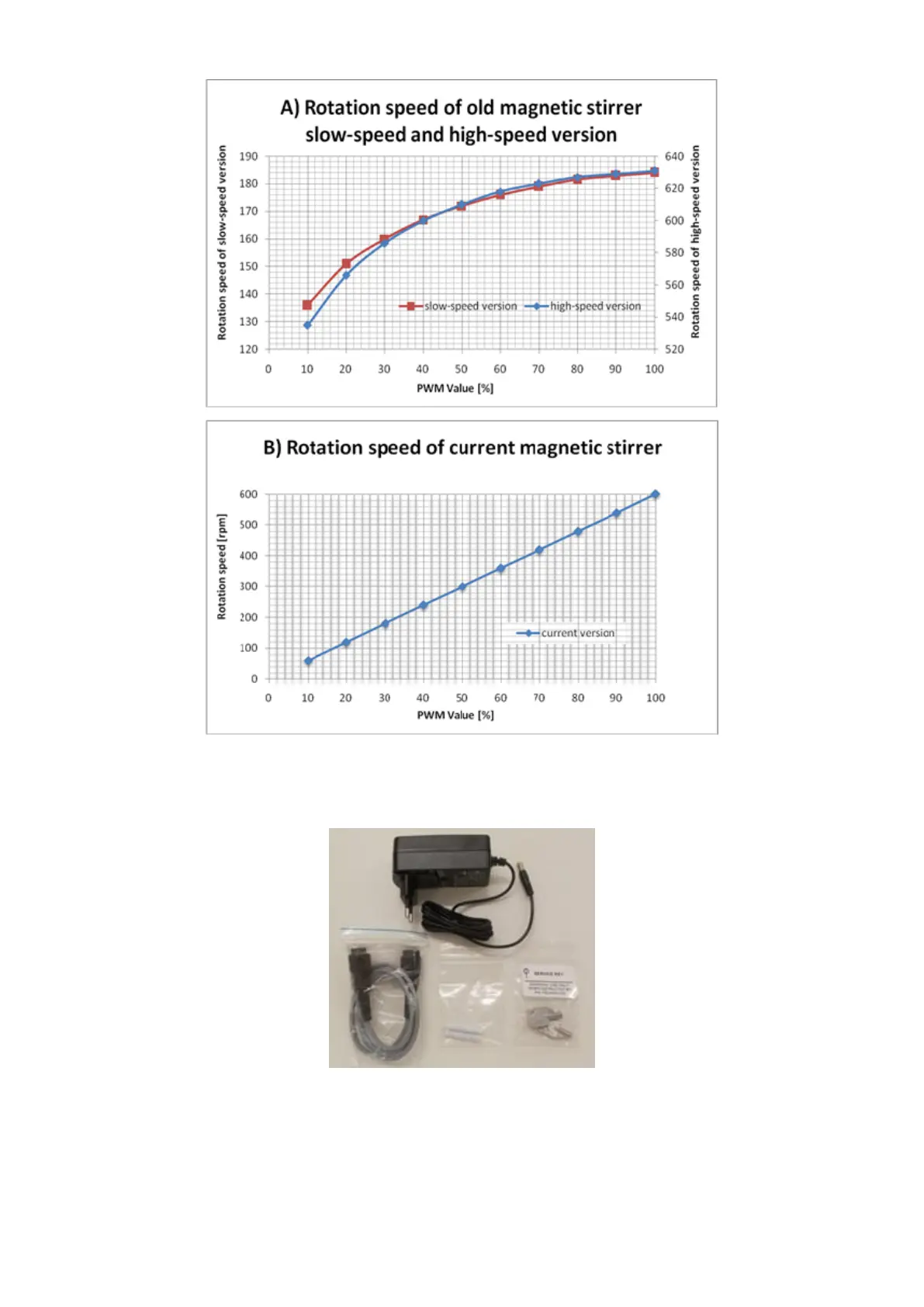

Fig. 31 Relation between rotation speed in rpm and PWM value in % adjusted by the PBR. A) refers to slow-speed and high-speed
magnetic stirrer version for PBR FMT150.1 or 150.2. Maximum speed rotation is indicated on the stirrer body. B) refers to the current
magnetic stirrer (600 rpm) version for PBR FMT150.2.
Fig. 32 Components for the magnetic stirrer: power source, communication cable (AUX cable), magnetic bars, service keys.
