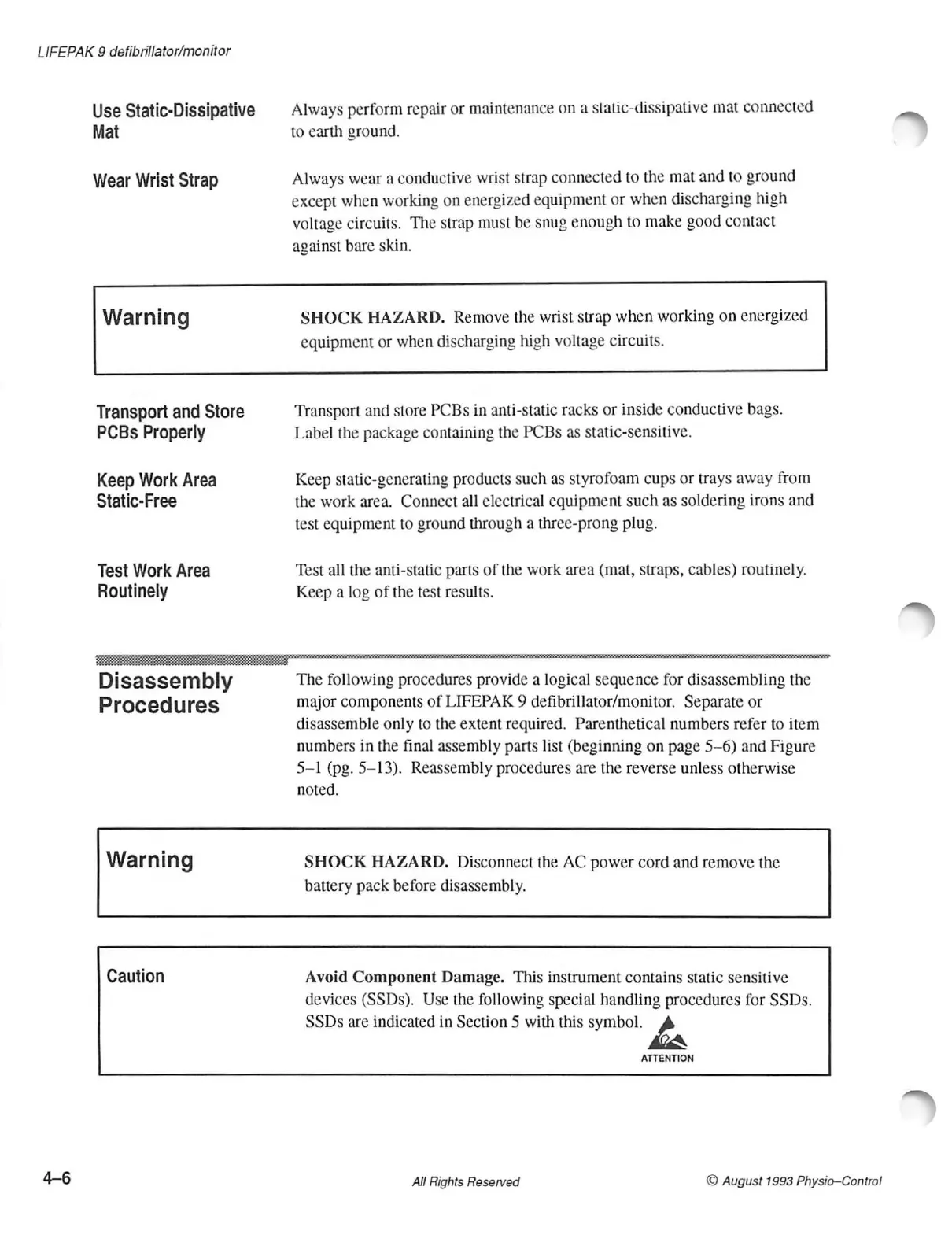

Physio Control LIFEPAK 9 - Disassembly Procedures

LIFEPAK 9 defibrillator/monitor
Use Static-Dissipative
Always
perform
repair
or
maintenance
on
a
static-dissipative
mat
connected
Mat to earth ground.
Wear
Wrist
Strap
Always
wear
a
conductive
wrist
strap
connected
to
the
mat
and
to
ground
except
when
working
on
energized
equipment
or
when
discharging
high
voltage
circuits.
The
strap
must
be.snug
enough
to
make
good
contact
against bare skin.
Warning
SHOCK
HAZARD.
Remove
the
wrist
strap
when
working
on
energized
equipment or when discharging high voltage circuits.
Transport
and
Store
Transport
and
store
PCBs
in
anti-static
racks
or
inside
conductive
bags.
PCBs Properly Label the package containing the PCBs as static-sensitive.
Keep
Work
Area
Keep
static-generating
products
such
as
styrofoam
cups
or
trays
away
from
Static-Free the work area. Connect all electrical equipment such as soldering irons and
test equipment to ground through a three-prong plug.
Test Work Area Test all the anti-static parts of the work area (mat, straps, cables) routinely.
Routinely Keep a log of the test results.
Disassembly
Procedures
The following procedures provide a logical sequence for disassembling the
major components of LIFEPAK 9 defibrillator/monitor. Separate or
disassemble only to the extent required. Parenthetical numbers refer to item
numbers in the final assembly parts list (beginning on page 5-6) and Figure
5-1 (pg. 5-13). Reassembly procedures are the reverse unless otherwise
noted.
Warning SHOCK HAZARD. Disconnect the AC power cord and remove the
battery pack before disassembly.
Caution Avoid Component Damage. This instrument contains static sensitive
devices (SSDs). Use the following special handling procedures for SSDs.
SSDs are indicated in Section 5 with this symbol. È,
ATTENTION
All Rights Reserved © August 1993 Physio-Control
