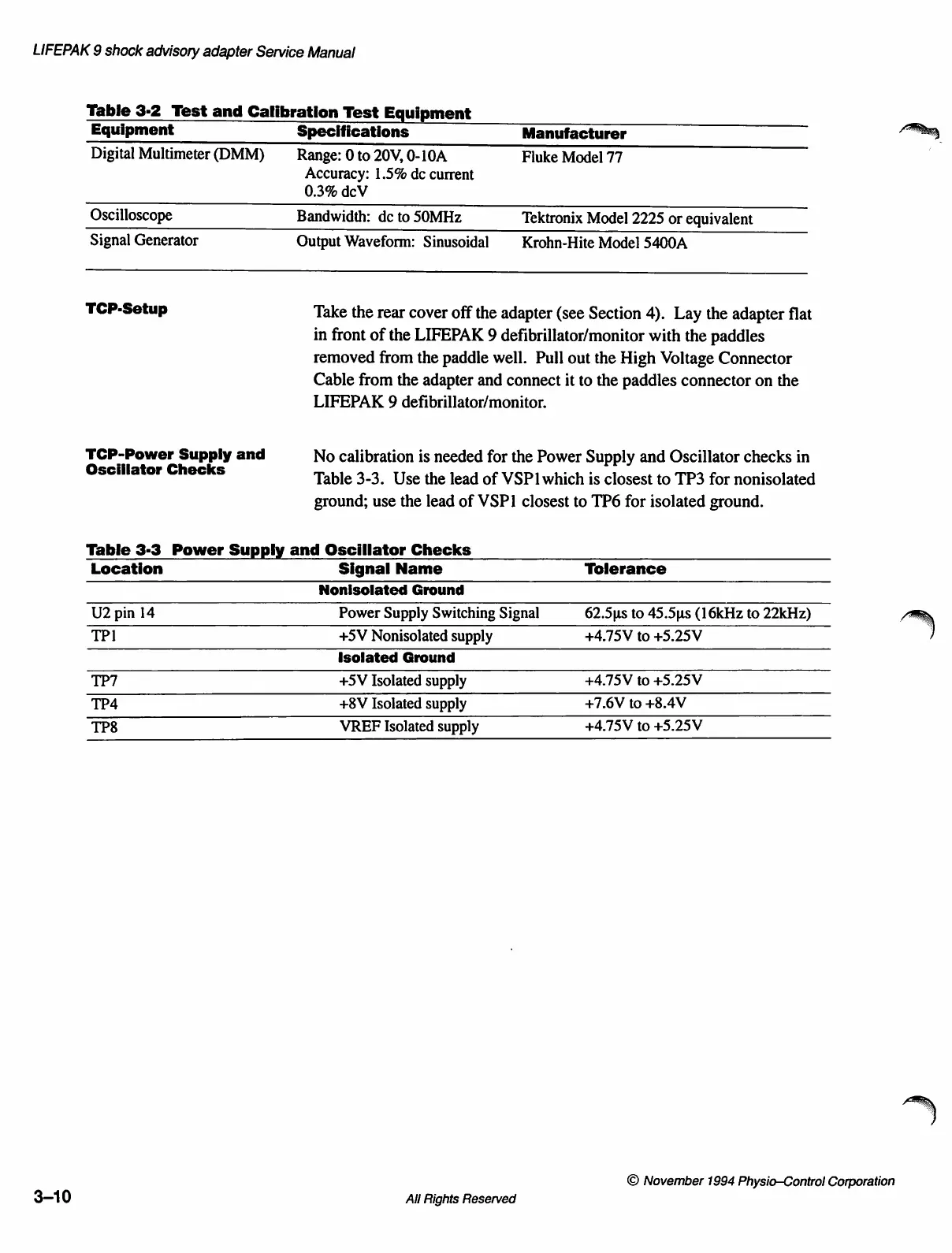

LIFEPAK 9 shock advisory adapter Service Manual
Table
3-2
Test
and
Calibration
Test
Equipment
Equipment
Specifications
Manufacturer
Digital
Multimeter
(DMM)
Range:
0
to
20V,
0-10A
Fluke
Model
77
Accuracy: 1.5% dc current
0.3%
dcV
Oscilloscope
Bandwidth:
dc
to
50MHz
Tektronix
Model
2225
or
equivalent
Signal
Generator
Output
Waveform:
Sinusoidal
Krohn-Hite
Model
5400A
TCP-Setup
Take the rear cover off the adapter (see Section 4). Lay the adapter flat
in front of the LIFEPAK 9 defibrillator/monitor with the paddles
removed from the paddle well. Pull out the High Voltage Connector
Cable from the adapter and connect it to the paddles connector on the
LIFEPAK 9 defibrillator/monitor.
TCP-Power Supply and No calibration is needed for the Power Supply and Oscillator checks in
Oscillator Checks Table 3-3. Use the lead of VSP1 which is closest to TP3 for nonisolated
ground; use the lead of VSP1 closest to TP6 for isolated ground.
Table 3-3 Power Supply and Oscillator Checks
Location Signal Name Tolerance
Nonisolated Ground
U2 pin 14 Power Supply Switching Signal 62.5us to 45.5us (16kHz to 22kHz)
TPI +5V Nonisolated supply +4.75V to +5.25V
Isolated Ground
TP7 +5V Isolated supply +4.75V to +5.25V
TP4 +8V Isolated supply +7.6V to +8.4V
TP8 VREF Isolated supply +4.75V to +5.25V
© November 1994 Physio—Control Corporation
3-10 All Rights Reserved
