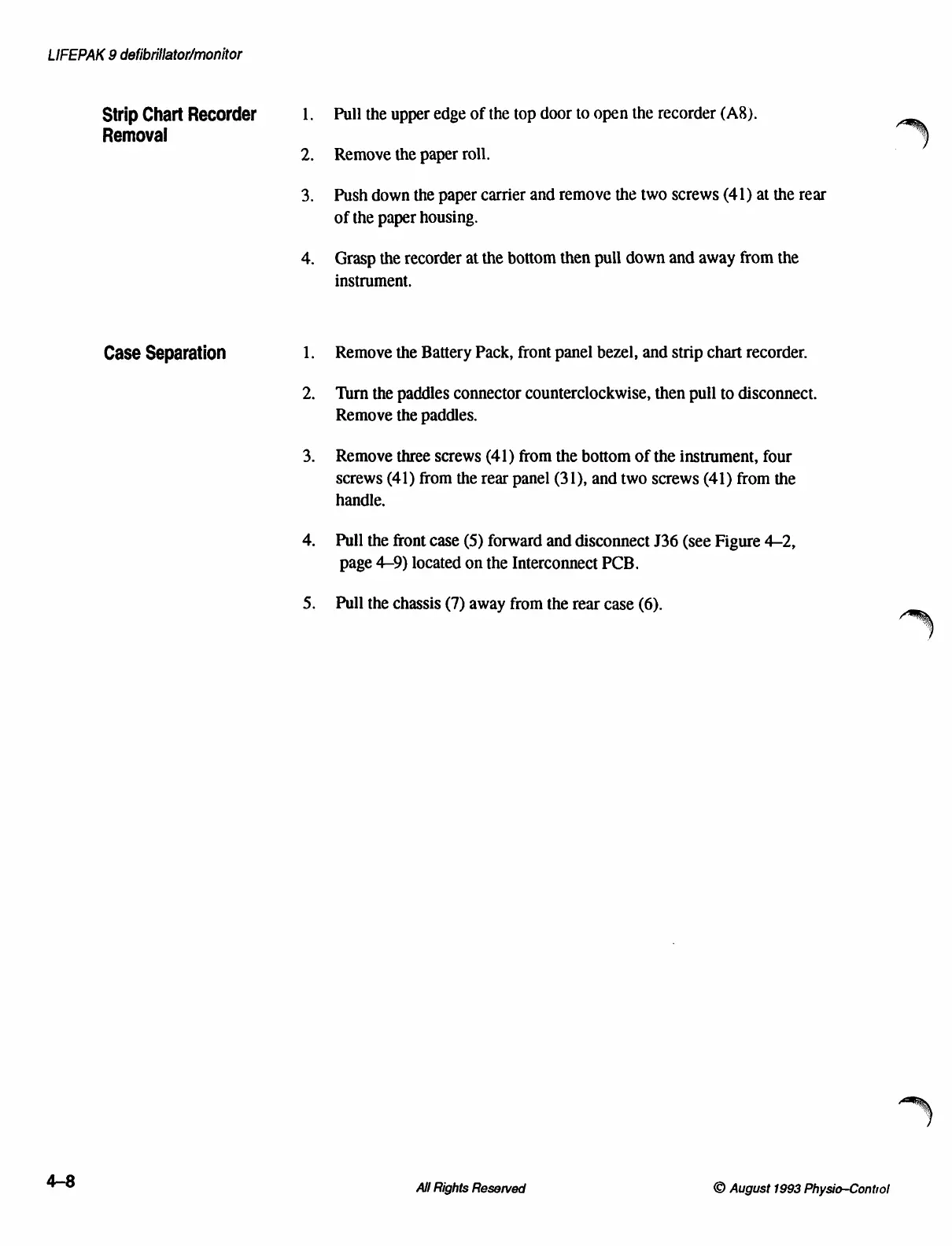

LIFEPAK 9 defibrillator/monitor
Strip Chart Recorder 1. Pull the upper edge of the top door to open the recorder (A8).
Removal
2. Remove the paper roll.
3. Push down the paper carrier and remove the two screws (41) at the rear
of the paper housing.
4. Grasp the recorder at the bottom then pull down and away from the
instrument.
Case Separation 1. Remove the Battery Pack, front panel bezel, and strip chart recorder.
2. Turn the paddles connector counterclockwise, then pull to disconnect.
Remove the paddles.
3. Remove three screws (41) from the bottom of the instrument, four
screws (41) from the rear panel (31), and two screws (41) from the
handle.
4. Pull the front case (5) forward and disconnect J36 (see Figure 4—2,
page 4-9) located on the Interconnect PCB.
S. Pull the chassis (7) away from the rear case (6).
