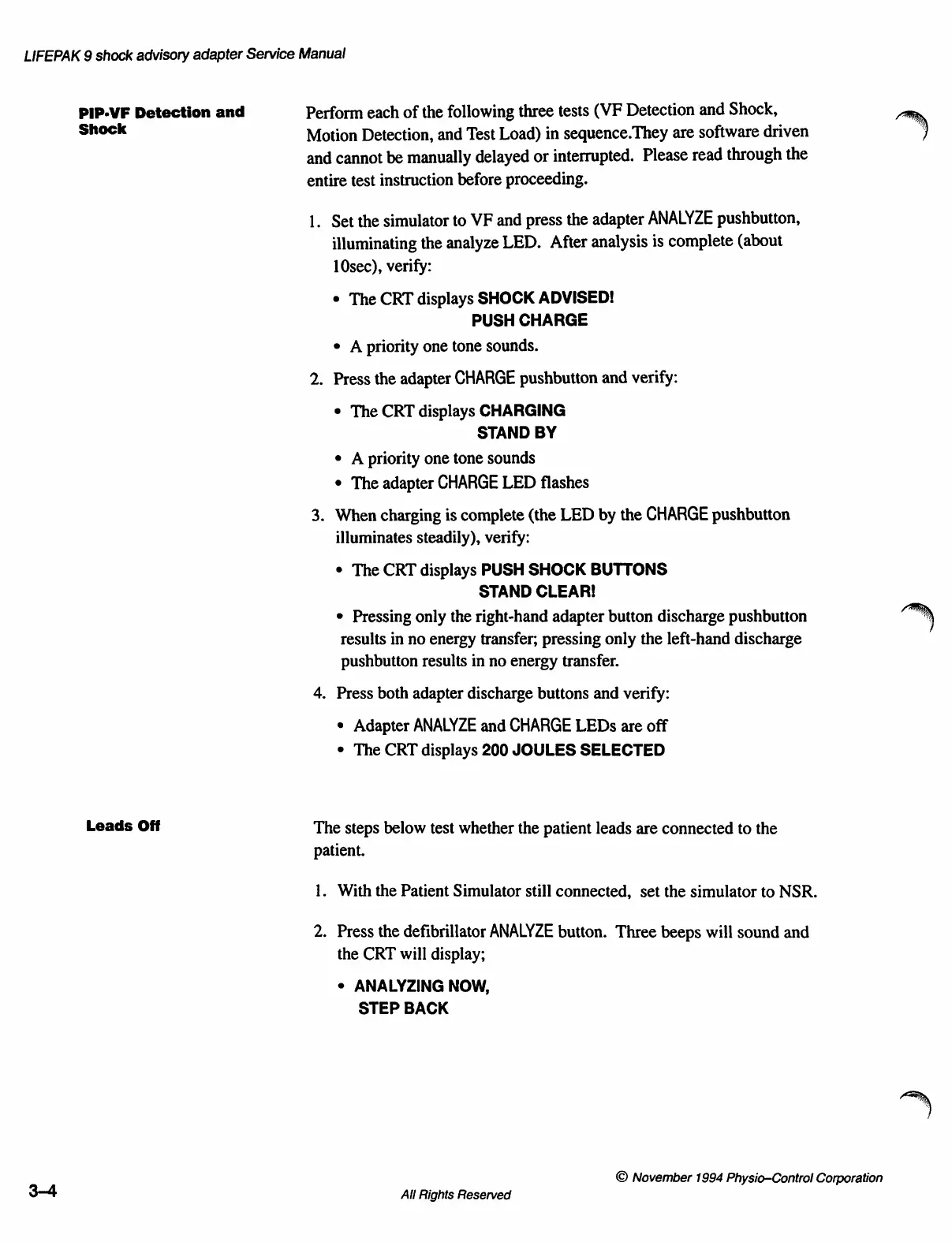

Physio Control LIFEPAK 9 - PIP-VF Detection and Shock

LIFEPAK 9 shock advisory adapter Service Manual
PIP-VF Detection and
Shock
Leads Off
Perform
each
of
the
following
three
tests
(VF
Detection
and
Shock,
Motion
Detection,
and
Test
Load)
in
sequence.They
are
software
driven
and
cannot
be
manually
delayed
or
interrupted.
Please
read
through
the
entire
test
instruction
before
proceeding.
1.
Set
the
simulator
to
VF
and
press
the
adapter
ANALYZE
pushbutton,
illuminating
the
analyze
LED.
After
analysis
is
complete
(about
10sec),
verify:
+ The CRT displays SHOCK ADVISED!
PUSH CHARGE
+ A priority one tone sounds.
2. Press the adapter CHARGE pushbutton and verify:
¢ The CRT displays CHARGING
STAND BY
e A priority one tone sounds
e The adapter CHARGE LED flashes
3. When charging is complete (the LED by the CHARGE pushbutton
illuminates steadily), verify:
e The CRT displays PUSH SHOCK BUTTONS
STAND CLEAR!
e Pressing only the right-hand adapter button discharge pushbutton
results in no energy transfer; pressing only the left-hand discharge
pushbutton results in no energy transfer.
4. Press both adapter discharge buttons and verify:
e Adapter ANALYZE and CHARGE LEDs are off
e The CRT displays 200 JOULES SELECTED
The steps below test whether the patient leads are connected to the
patient.
1. With the Patient Simulator still connected, set the simulator to NSR.
2. Press the defibrillator ANALYZE button. Three beeps will sound and
the CRT will display;
e ANALYZING NOW,
STEP BACK
© November 1994 Physio—Control Corporation
All Rights Reserved
