Physio Control LIFEPAK 9 - List of Tables

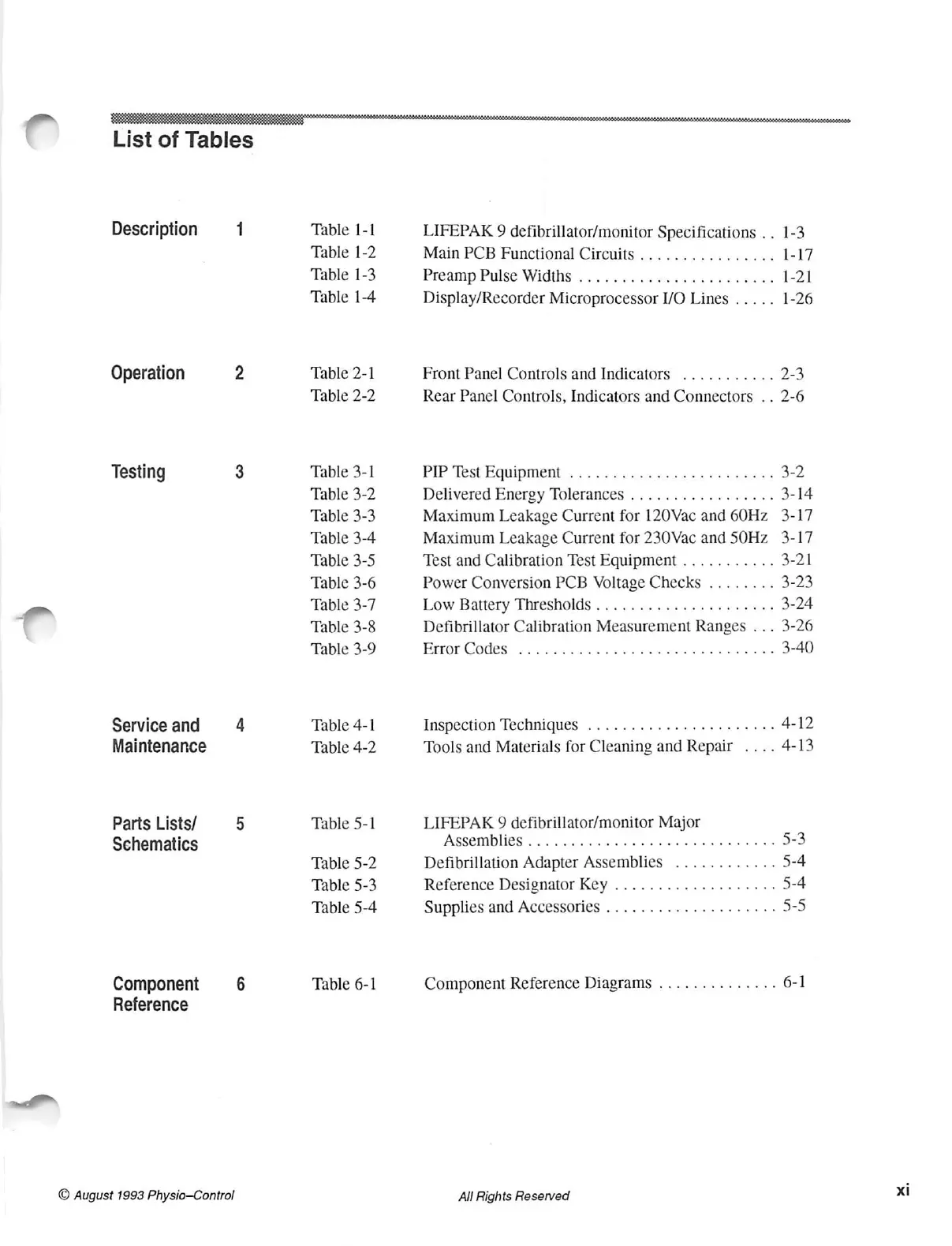

List of Tables
Description 1
Operation 2
Testing 3
Service and 4
Maintenance
Parts Lists/ 5
Schematics
Component 6
Reference
© August 1993 Physio—Control
Table 1-1
Table 1-2
Table 1-3
Table 1-4
Table 2-1
Table 2-2
Table 3-1
Table 3-2
Table 3-3
Table 3-4
Table 3-5
Table 3-6
Table 3-7
Table 3-8
Table 3-9
Table 4-1
Table 4-2
Table 5-1
Table 5-2
Table 5-3
Table 5-4
Table 6-1
LIFEPAK 9 defibrillator/monitor Specifications .. 1-3
Main PCB FunctionalCircuits................ 1-17
Preamp Pulse Widths . . ее sms sue. 1-21
Display/Recorder Microprocessor 1/0 Lines ..... 1-26
Front Panel Controls and Indicators ........... 2-3
Rear Panel Controls, Indicators and Connectors .. 2-6
PIP Test Equipment ...;: css sia 3-2
Delivered Energy Tolerances: à à à à ss 3-14
Maximum Leakage Current for 120Vac and 60Hz 3-17
Maximum Leakage Current for 230Vac and 50Hz 3-17
Test and Calibration Test Equipment ........... 3-21
Power Conversion PCB Voltage Checks ........ 3-23
Low Battery Thresholds ..................... 3-24
Defibrillator Calibration Measurement Ranges ... 3-26
οι κια ο ο. 3-40
Inspection Techniques ...................... 4-12
Tools
and Materials for Cleaning and Repair .... 4-13
LIFEPAK 9 defibrillator/monitor Major
πο Ημ 3
Defibrillation Adapter Assemblies ............ 5-4
Reference Designator Key ................... 5-4
Supplies and Accessories .................... 5-5
Component Reference Diagrams .............. 6-1
All Rights Reserved
xi
