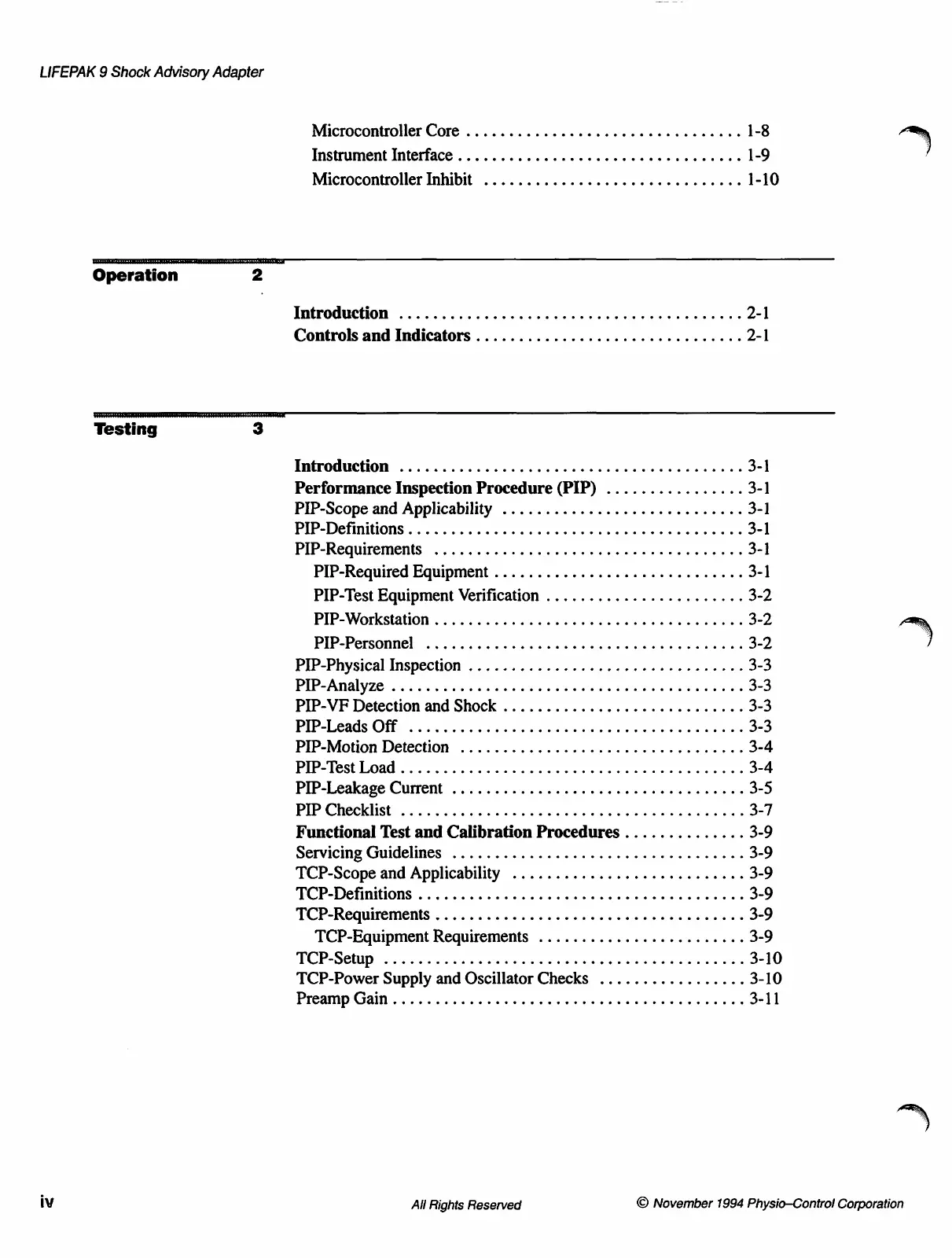

Physio Control LIFEPAK 9 - Table of Contents

LIFEPAK 9 Shock Advisory Adapter
Microcontroller Core ................................ 1-8
Instrument Interface ................................. 1-9
Microcontroller Inhibit .............................. 1-10
Operation 2
Introduction ........................................ 2-1
Controls and Indicators ............................... 2-1
Testing 3
Introduction ........................................ 3-1
Performance Inspection Procedure (PIP) ................ 3-1
PIP-Scope and Applicability ............................ 3-1
PIP-Definitions ....................................... 3-1
PIP-Requirements ....................,.............., 3-1
PIP-Required Equipment ............................. 3-1
PIP-Test Equipment Verification ....................... 3-2
PIP-Workstation .................................... 3-2
PIP-Personnel ..................................... 3-2
PIP-Physical Inspection ...................,..........., 3-3
PIP-Analyze ......................................... 3-3
PIP-VF Detection and Shock ............................ 3-3
PIP-Leads Off ....................................... 3-3
PIP-Motion Detection ................................, 3-4
PIP-Test Load ........................................ 3-4
PIP-Leakage Current .................................. 3-5
PIP Checklist ........................................ 3-7
Functional Test and Calibration Procedures .............. 3-9
Servicing Guidelines .................................. 3-9
TCP-Scope and Applicability ...................,....... 3-9
TCP-Definitions ...................................... 3-9
TCP-Requirements ....................,............... 3-9
TCP-Equipment Requirements .....................,.. 3-9
TCP-Setup .......................................... 3-10
TCP-Power Supply and Oscillator Checks ................. 3-10
Preamp Gain , eneseneet 3-11
