LIFEPAK 9 defibrillator/monitor

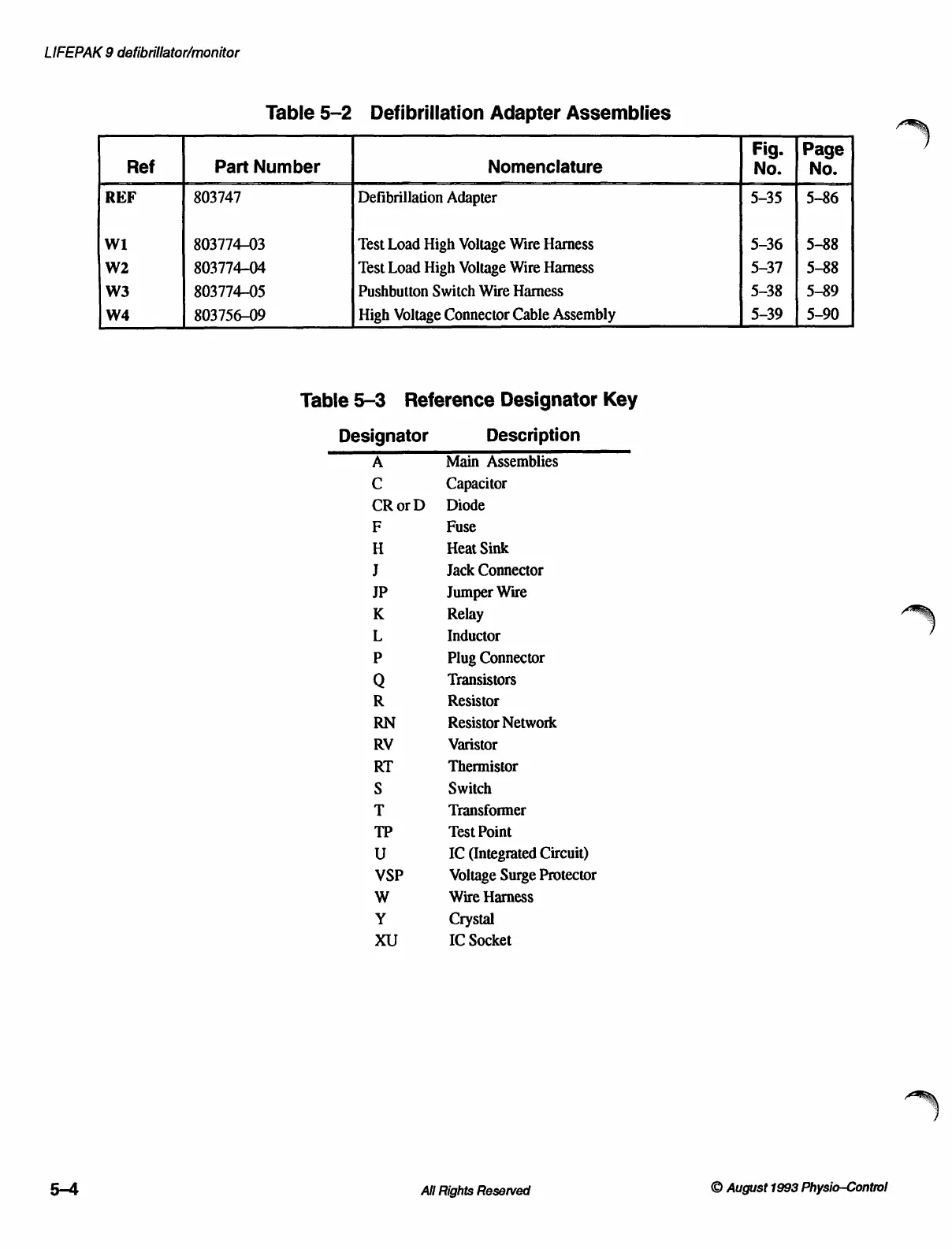

Table 5-2 Defibrillation Adapter Assemblies
Fig. | Page
Ref Part Number Nomenclature No. | No.
REF 803747 Defibrillation Adapter 5-35 | 5-86
WI 803774-03 Test Load High Voltage Wire Harness 5-36 | 5-88
W2 803774-04 Test Load High Voltage Wire Harness 5-37 | 5-88
W3 803774-05 Pushbutton Switch Wire Harness 5-38 | 5-89
W4 803756-09 High Voltage Connector Cable Assembly 5-39 | 5-90
Table 5-3 Reference Designator Key
Designator Description
A Main Assemblies
C Capacitor
CRorD Diode
F Fuse
H Heat Sink
J Jack Connector
JP Jumper Wire
K Relay
L Inductor
P Plug Connector
Q Transistors
R Resistor
RN Resistor Network
RV Varistor
RT Thermistor
S Switch
T Transformer
TP Test Point
U
IC (Integrated Circuit)
VSP Voltage Surge Protector
W Wire Harness
Y Crystal
XU IC Socket
