Parts Lists and Schematics 5

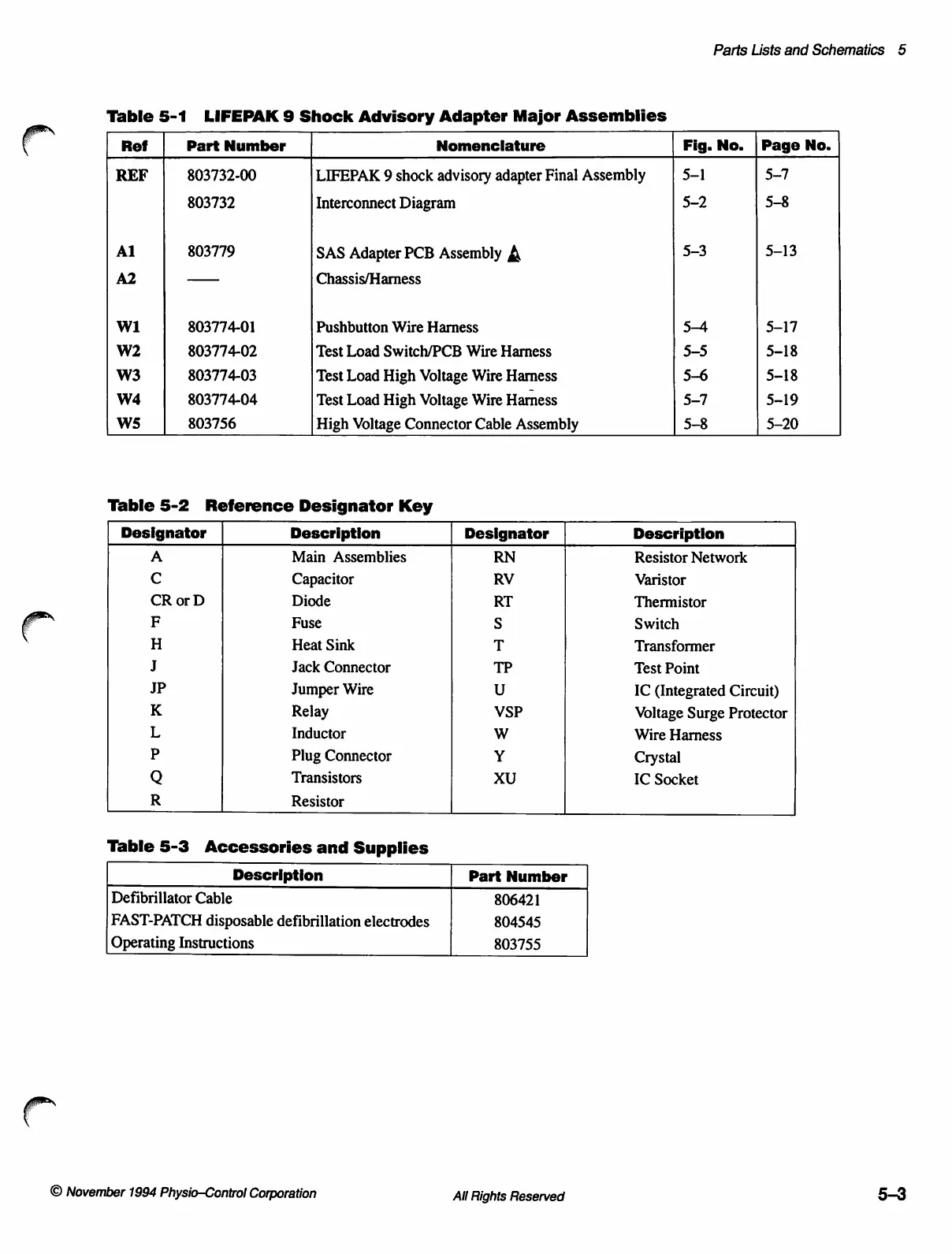

Table 5-1 LIFEPAK 9 Shock Advisory Adapter Major Assemblies
Ref Part Number Nomenclature Fig. No. | Page No.
REF 803732-00 LIFEPAK 9 shock advisory adapter Final Assembly 5-1 5-7
803732 Interconnect Diagram 5-2 5-8
Al 803779 SAS Adapter PCB Assembly À 5-3 5-13
A2 一 一 Chassis/Hamess
W1 803774-01 Pushbutton Wire Harness 54 5-17
W2 803774-02 Test Load Switch/PCB Wire Harness 5—5 5-18
W3 803774-03 Test Load High Voltage Wire Harness 5-6 5-18
W4 803774-04 Test Load High Voltage Wire Harness 5-7 5-19
WS 803756 High Voltage Connector Cable Assembly 5—8 5—20
Table 5-2 Reference Designator Key
Designator Description Designator Description
A Main Assemblies RN Resistor Network
C Capacitor RV Varistor
CR or D Diode RT Thermistor
F Fuse S Switch
H Heat Sink T Transformer
J Jack Connector TP Test Point
JP Jumper Wire U IC (Integrated Circuit)
K Relay VSP Voltage Surge Protector
L Inductor W Wire Harness
P Plug Connector Y Crystal
Q Transistors XU IC Socket
R Resistor
Table 5-3 Accessories and Supplies
Description Part Number
Defibrillator Cable 806421
FAST-PATCH disposable defibrillation electrodes 804545
Operating Instructions 803755
©
November
1994
Physio-Control
Corporation
All
Rights
Reserved
5-3
