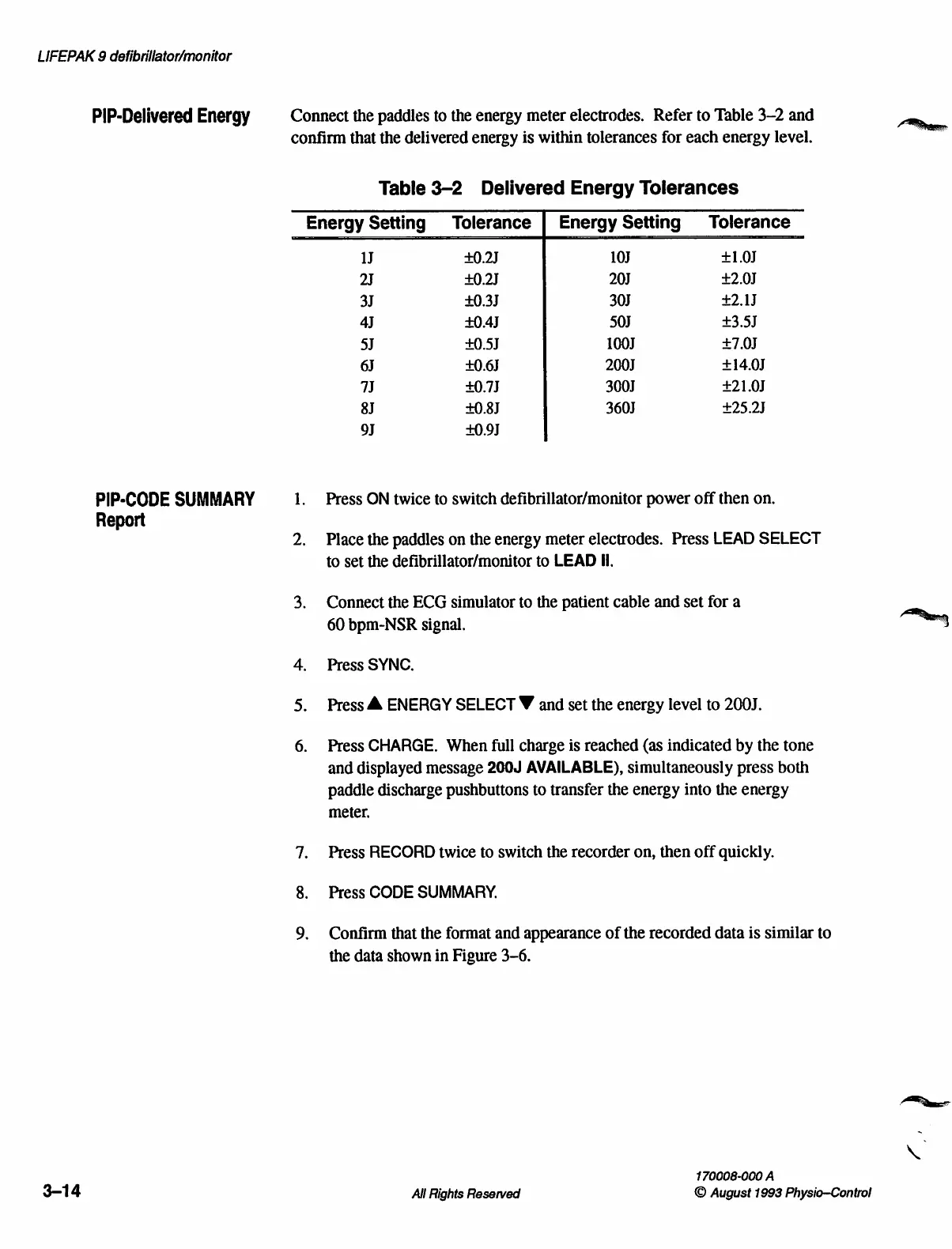

LIFEPAK 9 defibrillator/monitor
PIP-Delivered Energy Connect the paddles to the energy meter electrodes. Refer to Table 3-2 and
confirm that the delivered energy is within tolerances for each energy level.
Table 3-2 Delivered Energy Tolerances
Energy Setting Tolerance | Energy Setting Tolerance
1J +0.2] 10) +1.0J
2J +0.2J 20] 2.0]
3] 30.3] 30] +2.1J
4] +0.4J 50J +3.5]
SJ +0.5J 100J +7.0J
6J 30.6] 2001 +14.0]
77 +0.7J 3001 +21.0J
8J +0.8J 360J +25.2]
9] +0.9J
PIP-CODE SUMMARY 1. Press ON twice to switch defibrillator/monitor power off then on.
Report
2. Place the paddles on the energy meter electrodes. Press LEAD SELECT
to set the defibrillator/monitor to LEAD И.
3. Connect the ECG simulator to the patient cable and set for a
60 bpm-NSR signal.
4. Press SYNC.
5. Press A ENERGY SELECT W and set the energy level to 200J.
6. Press CHARGE. When full charge is reached (as indicated by the tone
and displayed message 200J AVAILABLE), simultaneously press both
paddle discharge pushbuttons to transfer the energy into the energy
meter.
7. Press RECORD twice to switch the recorder on, then off quickly.
8. Press CODE SUMMARY.
9. Confirm that the format and appearance of the recorded data is similar to
the data shown in Figure 3-6.
170008-000 A
3-14 All Rights Reserved © August 1993 Physio-Control
