7 Operation
96 Version: 1.2.1 MS249E C-863.12 Mercury Controller
C-819.30 analog joystick, 3 axes

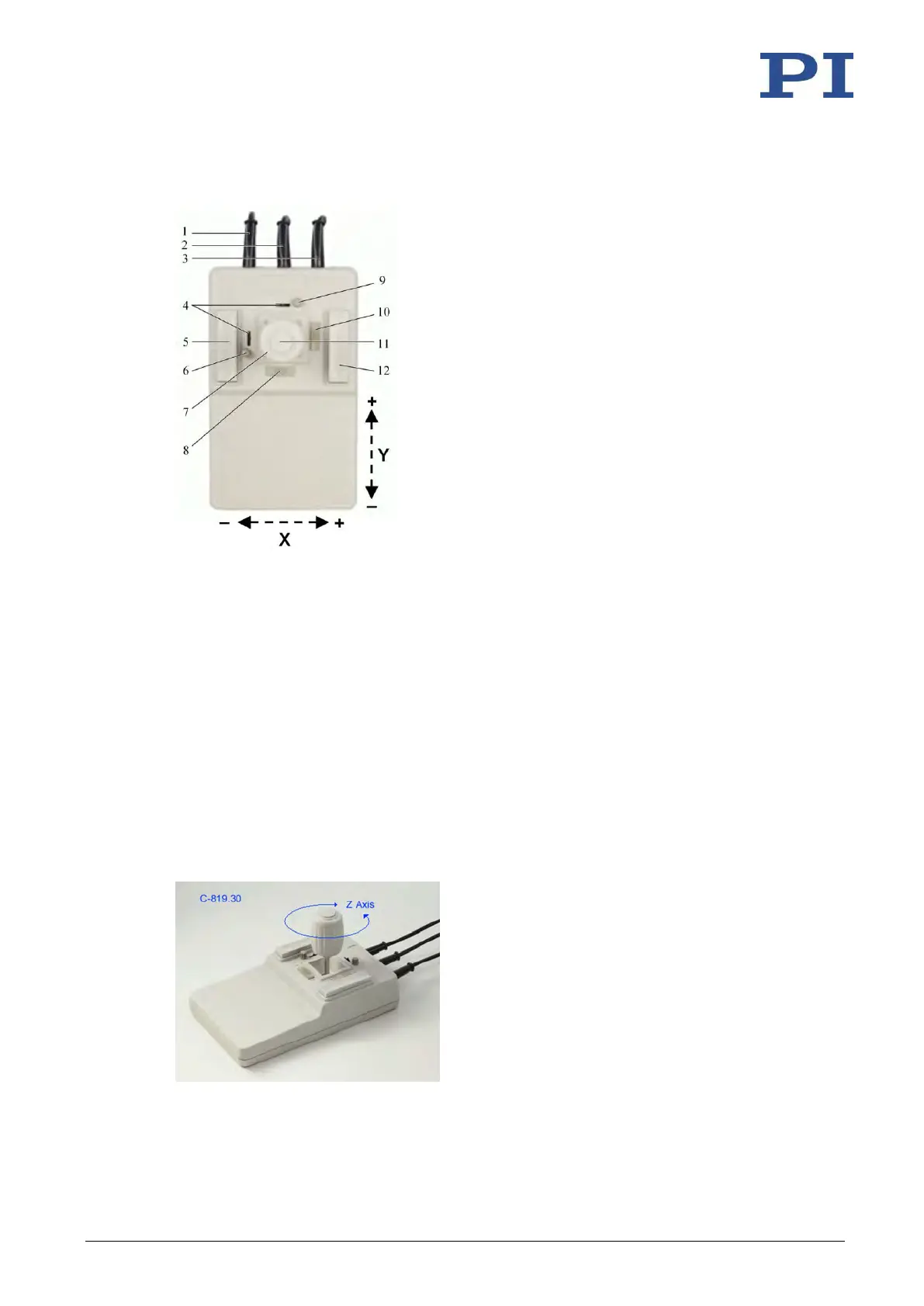

Figure 22: C-819.30 joystick
1
2
3
4
5
6
7
8
9
10
11
12
Cable for the Z axis
Cable for the Y axis
Cable for the X axis
Adjustment indicator
Pushbutton for the Y axis
Rotary knob for adjustment of the Y axis (calibration)
XY control lever with rotary knob for Z axis
X axis lock
Rotary knob for adjustment of the X axis (calibration)
Y axis lock
Pushbutton for the Z axis
Pushbutton for the X axis
Figure 23: C-819.30 joystick, rotary knob for the Z axis
