3 Product Description
8 Version: 1.2.1 MS249E C-863.12 Mercury Controller
Labeling
Type
Function
Mode
Baud
Addr
8-bit DIP switch (p.
51)
Setting of
▪ Device address (Addr)
▪ Baud rate for communication with the PC (Baud)
The switches 7and 8 (Mode) have no function.
3.1.2 Rear Panel

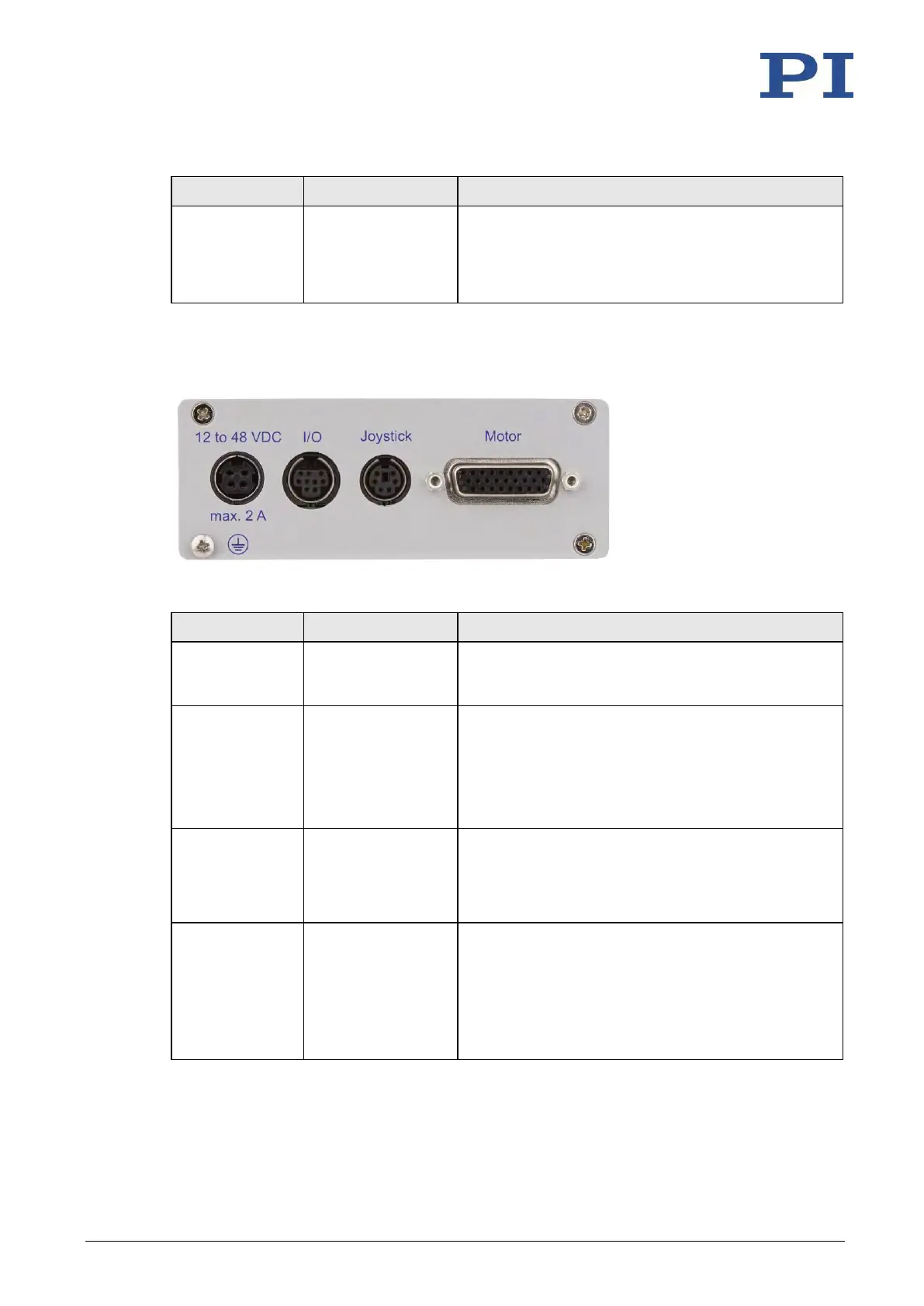

Figure 2: Rear panel of the C-863.12
Labeling
Type
Function
12 to 48 VDC
Max. 2 A
DC power socket
(Kycon), 4-pole (f),
lockable (p. 270)
Connector for the supply voltage
I/O
Mini-DIN, 9-pole (f)
(p. 266)
Digital inputs/outputs:
▪ Outputs: Trigger external devices
▪ Inputs: Use in macros or as switch signals
Analog inputs:
▪ Use in macros or for scanning processes
Joystick
Mini-DIN, 6-pole (f )
(p. 268)
Connector for analog joystick
▪ Inputs for signals from the joystick axes and
buttons
▪ Output for the supply voltage of the joystick
Motor
HD D-sub 26 (f)
Positioner's connector
▪ Output for the motor's control signals
▪ Input of the signals of the incremental position
sensor
▪ Signal input from the limit switches and reference
switch
