13 Technical Data
268 Version: 1.2.1 MS249E C-863.12 Mercury Controller
13.3.4 Joystick
Mini-DIN socket, 6-pin, female (PS/2)

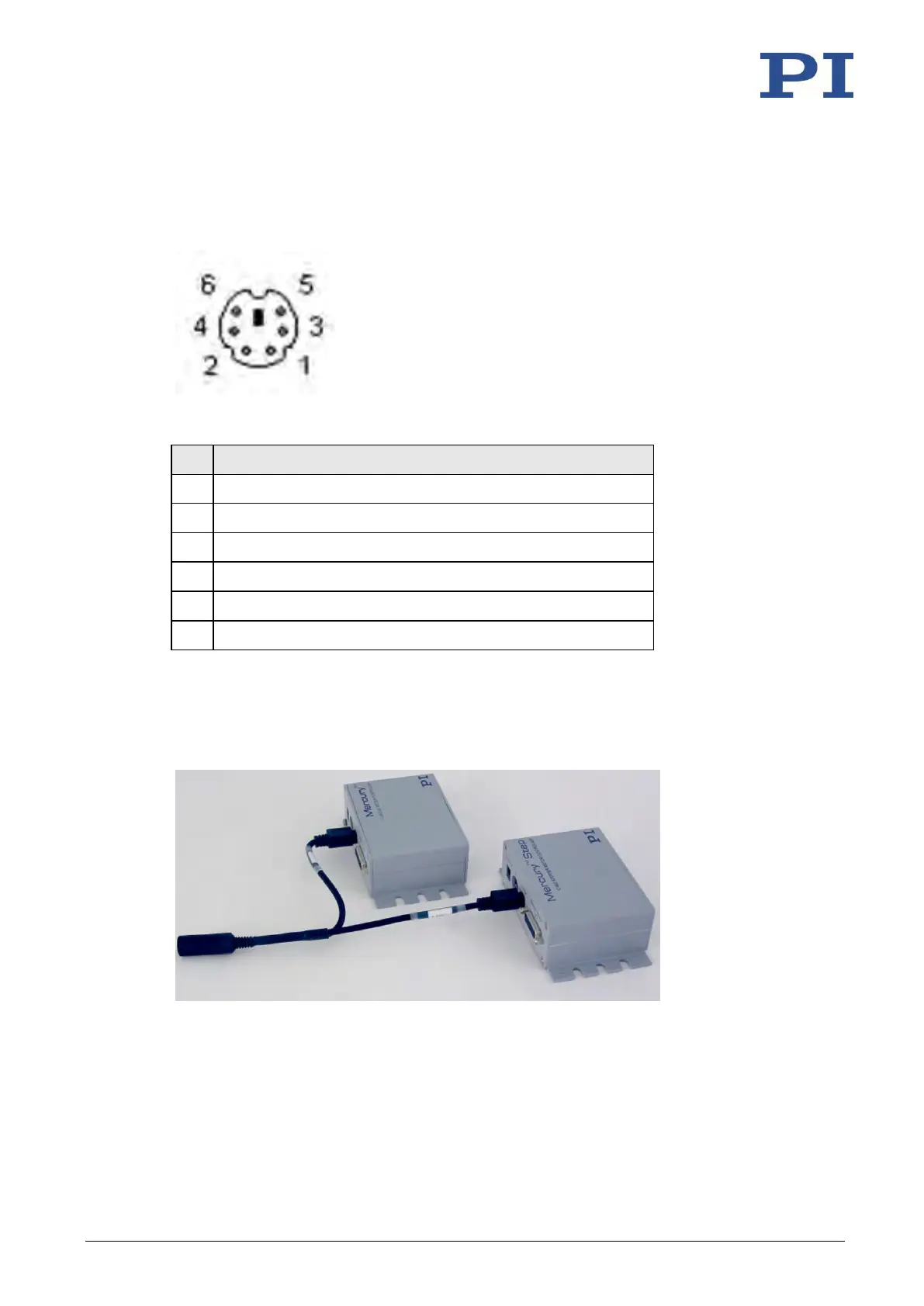

Figure 28: Front view of Mini-DIN socket
Pin
Function
1
GND
2
Not connected
3
Output: Vcc (3.3 V)
4
Input: axis 1 of joystick 1 (0 to 3.3 V)
5
Not connected
6
Input: Button 1 of joystick 1 (0 or 3.3 V)
13.3.5 C-819.20Y Cable for C-819.20 Joystick
The C-819.20Y cable makes it possible to connect 2 controllers to the C-819.20 joystick.
Figure 29: Y cable C-819.20Y for joystick with 2 controllers
