13 Technical Data
C-863.12 Mercury Controller MS249E Version: 1.2.1 269
Mini-DIN connector, 6-pin, female on 2 Mini-DIN connectors, 6-pin, male
Mini-DIN 6-pin,
female (to
joystick)
Signal
Mini-DIN, 6-pin,
male, X branch
(to controller 1)
Mini-DIN, 6-pin,
male, Y branch
(to controller 2)
Pin 1
GND
Pin 1
Pin 1
Pin 2
Button for joystick Y axis
Not connected
Pin 6
Pin 3
Joystick power source
Pin 3
Not connected
Pin 4
Joystick X axis
Pin 4
Not connected
Pin 5
Joystick Y axis
Not connected
Pin 4
Pin 6
Button for joystick X axis
Pin 6
Not connected

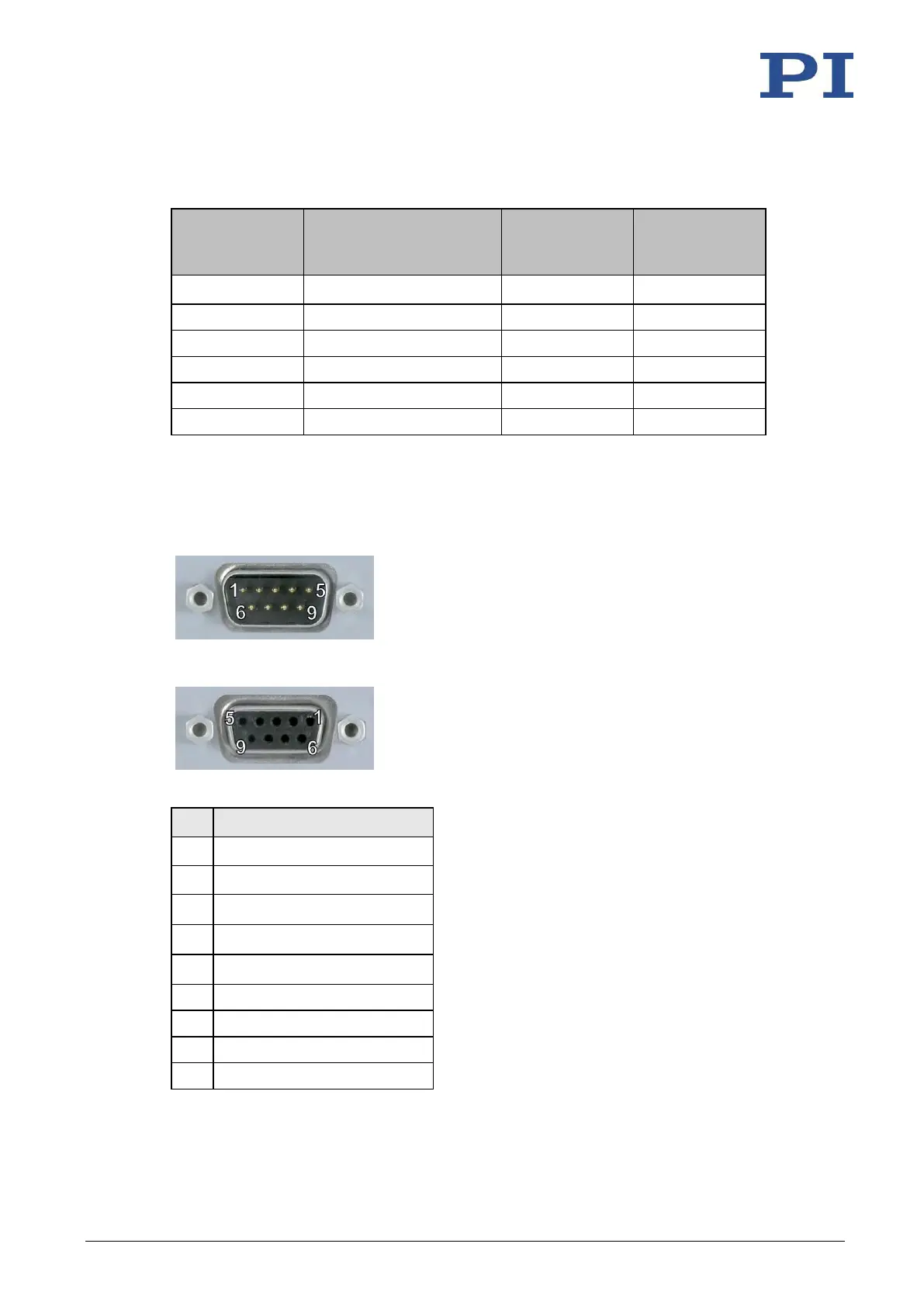

13.3.6 RS-232 In and RS-232 Out
RS-232 In: D-sub 9 panel plug
RS-232 Out: D-sub 9 socket
Pin
Function
1
Not connected
2
RxD (PC to controller)
3
TxD (controller to PC)
4
Not connected
5
GND
6
Not connected
7
Not connected
8
Not connected
9
Not connected
