Remove the minimum flow screw with the O-ring,
the washer and the spring.
-Remove the 2 fixing screws, the cover, the spring,
and the cut-off device diaphragm.
CAUTION
DO NOT ATTEMPT REMOVING PARTS EMBEDDED IN THE
CARBURETTOR BODY SUCH AS: FUEL SUPPLY PIPE,
PLUNGER HOUSING, STARTER NOZZLE, PIT COVER FOR
PROGRESSIONS AND INLET NOZZLE, MINIMUM AND
MAXIMUM AIR GAUGE, THROTTLE VALVE CONTROL
SHAFT. DO NOT REMOVE THROTTLE-SHAFT CONNEC-
TION SCREWS. THE FIXING SCREWS ARE CAULKED AF-
TER THE ASSEMBLY AND THEIR REMOVAL DAMAGES
THE SHAFT.

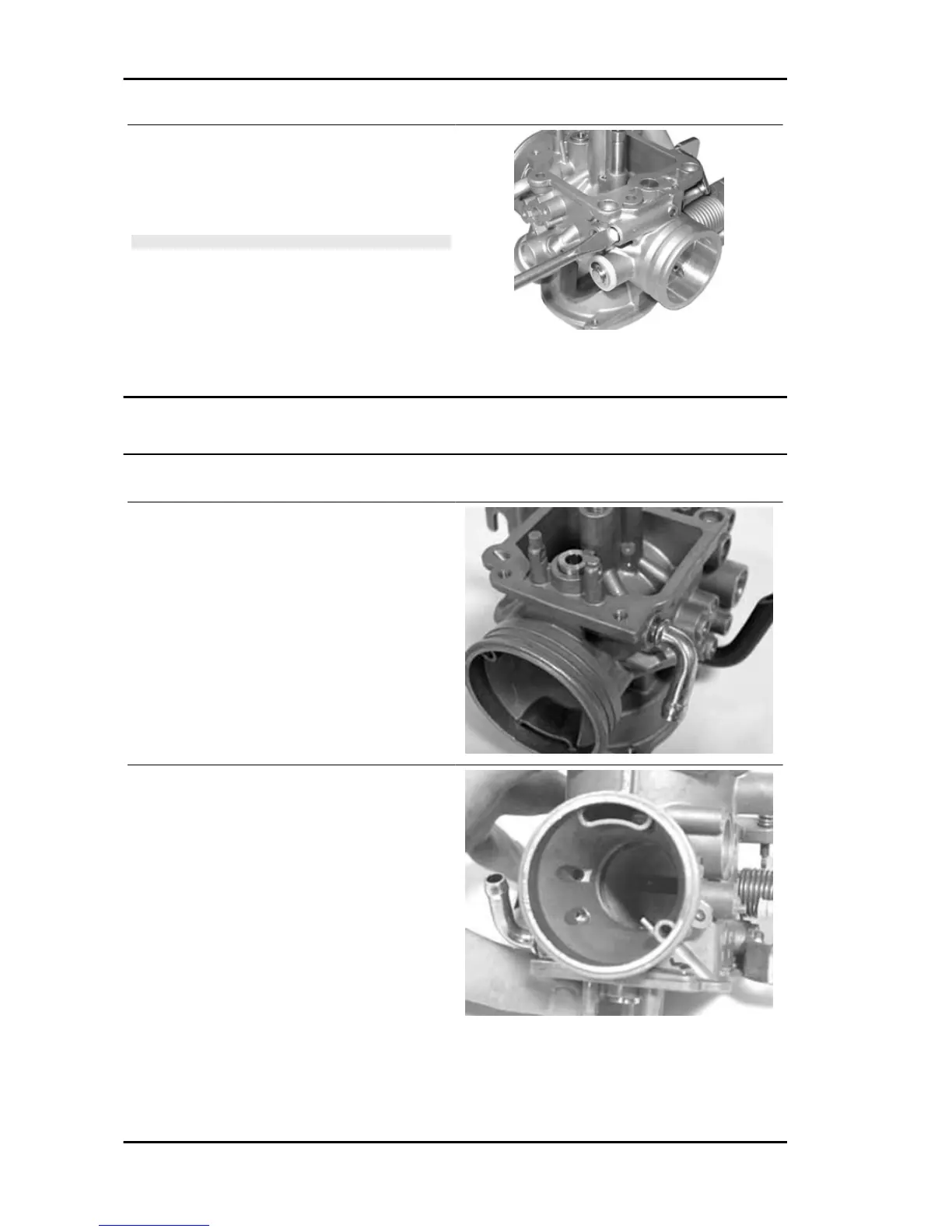

Refitting the carburettor
Kehin
- Before refitting, wash the carburettor body accu-
rately with petrol and compressed air.
- Pay special attention to the fuel supply pipe and
the plunger seat.
- For maximum circuit, check the air adjustment is
correct as shown in the figure.
