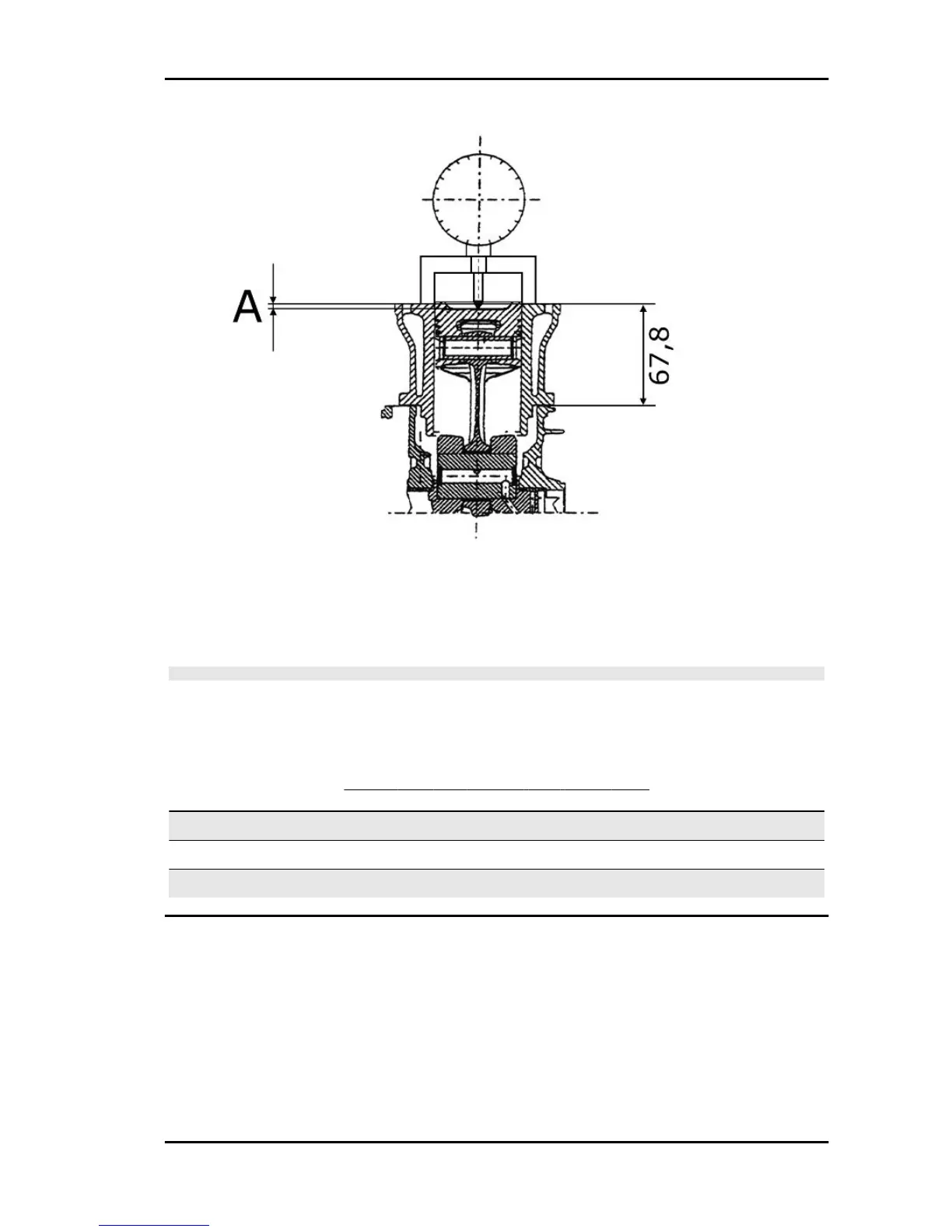

Measurement «A» to be taken, is a value of piston re-entry. It indicates by how much the plane formed
by the piston crown descends below the plane formed by the upper part of the cylinder. The further the
piston falls inside the cylinder, the less the base gasket to be applied (to recover the compression ratio)
and vice versa.
N.B.
NO GASKETS AND SEALS SHOULD BE ASSEMBLED BETWEEN THE CRANKCASE AND CYL-
INDER AND THE DIAL GAUGE EQUIPPED WITH SUPPORT SHOULD BE SET TO ZERO FOR
MEASUREMENT «A» TO BE TAKEN WITH THE PISTON AT TOP DEAD CENTRE POSITION AND
ON A RECTIFIED PLANE.
VERSION 200 WITH METALLIC HEAD GASKET (0.3)
Name
Measure A Thickness
Shimming 200 - Cylinder 67.8 - Head
gasket 0.3 - Base gasket 0.4
2.50 ÷ 2.40 0.4 ± 0.05
Shimming 200 - Cylinder 67.8 - Head
gasket 0.3 - Base gasket 0.6
2.40 ÷ 2.20 0.6 ± 0.05
Shimming 200 - Cylinder 67.8 - Head
gasket 0.3 - Base gasket 0.8
2.20 ÷ 2.10 0.8 ± 0.05
Runner 125 - 200 Characteristics
CHAR - 21
