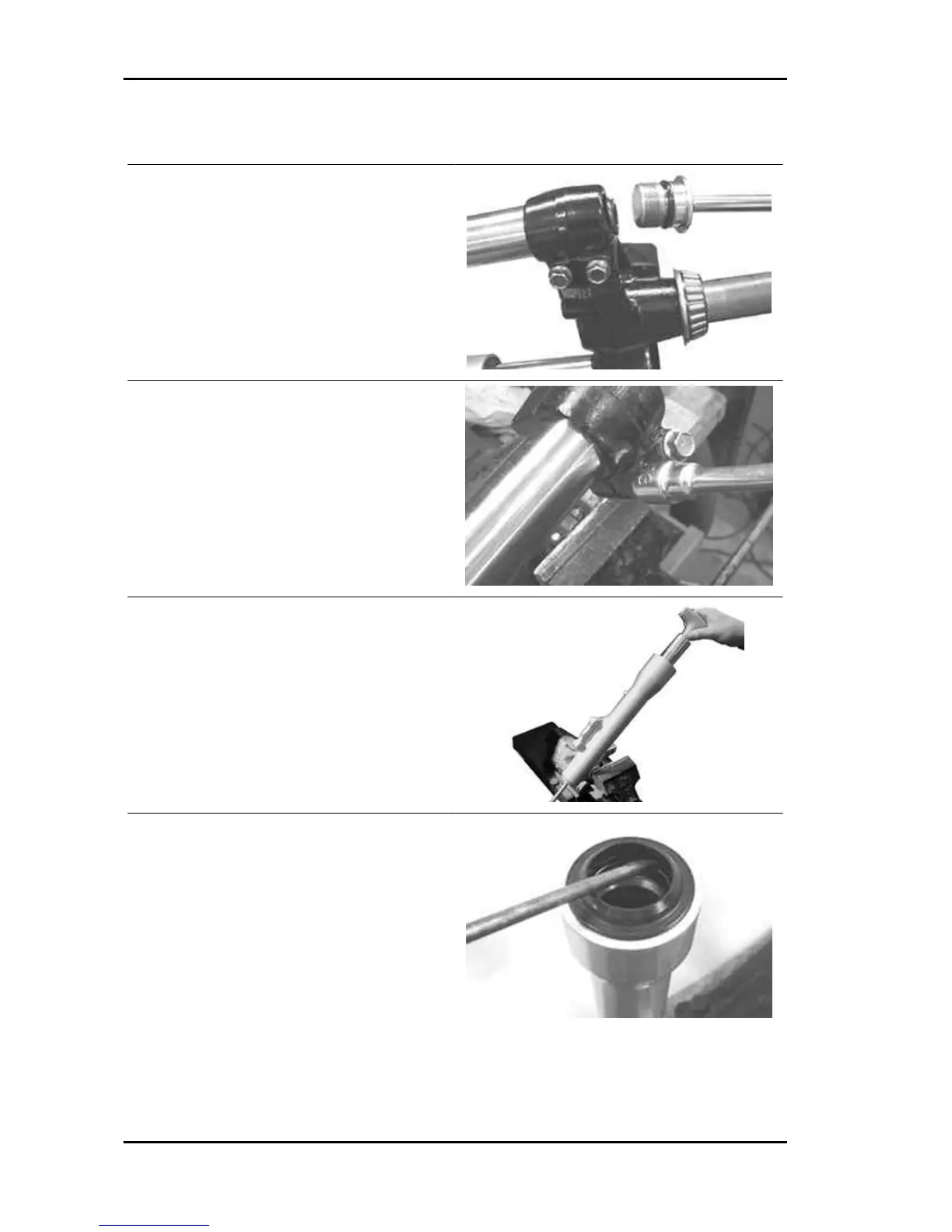

Overhaul
- With the 10 mm hexagonal wrench for internal
parts loosen the upper stem closing cap.
- Loosen the stem support clamp and remove fork
leg and stem.
- Remove the first spring featuring 15 turns.
- Remove the spring support plate.
- Remove the second spring featuring 21 turns.
- Drain the oil.
- Separate the stem from the leg by removing the
screws with copper washer shown in the figure. To
prevent the rotation of the pumping insert a 12 mm
hexagonal wrench for internal parts in the stem.
- Remove the dust guard ring using a screwdriver
as shown in the figure.
