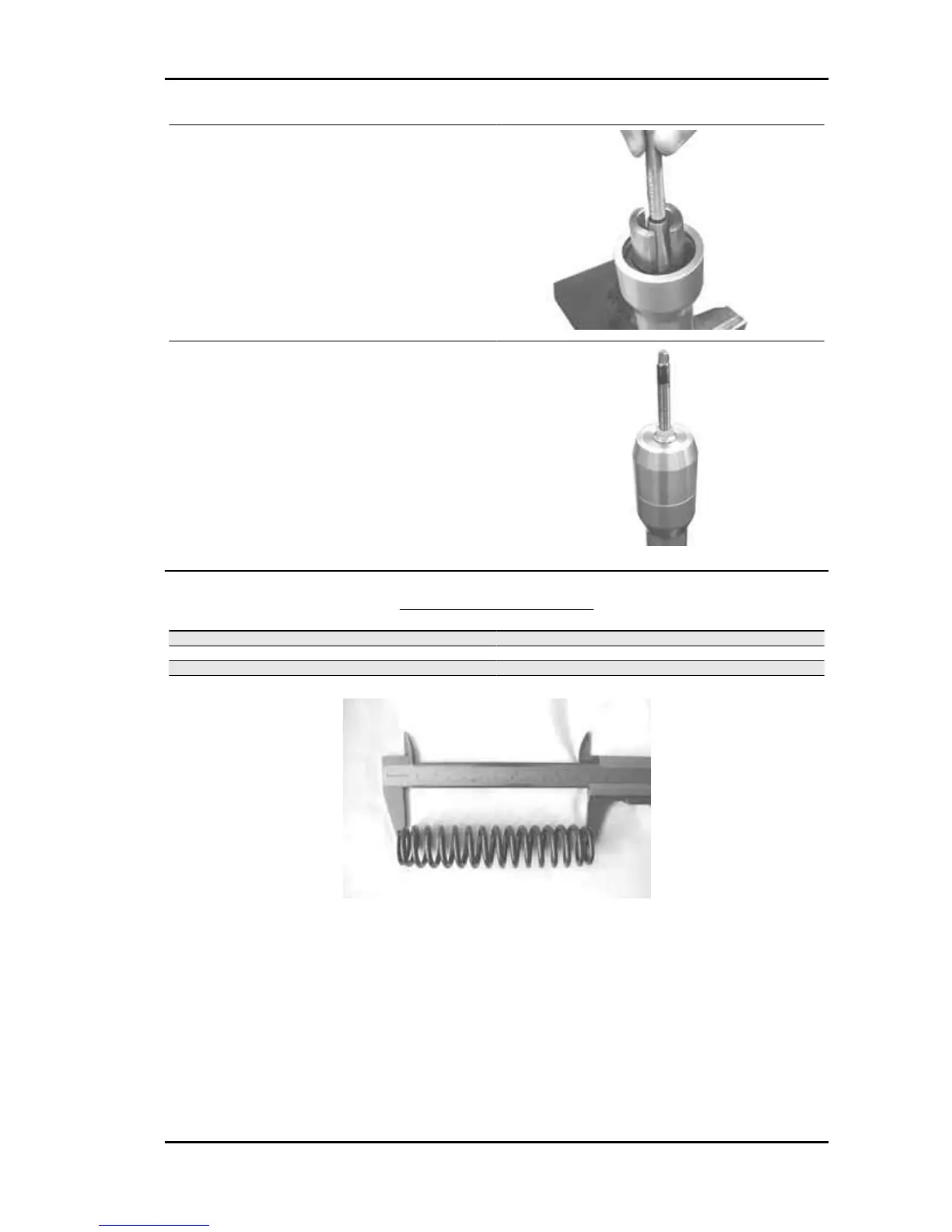

- Remove the oil guard safety lock using a screw-
driver.
- Using the appropriate special tool, remove the oil
seal.
- Insert the tie rod complete with cable into the oil
guard.
- Insert in sequence the two half-rings per Ø 35-
mm stems.
- Keeping the tie rod in vertical position, insert the
bell for the Ø 35 mm stems.
- Insert the nut in the thread and take out the oil
guard
Specific tooling
020487Y Fork oil seal extractor
SPRING LENGTH CHECK
Specification
Desc./Quantity
Standard length 15-turn spring: 116.3 + 2-1 mm
Standard length 21-turn spring: 175.7 + 2-1 mm
Allowable limit after use: 15-turn spring: 114.3 mm
Allowable limit after use: 21-turn spring: 173.7 mm
Check there are no signs of wear or seizing up between the stem and the leg. Otherwise, replace the
damaged parts.
Characteristic
Maximum leg diameter
35.10 mm
Minimum stem diameter
34.90 mm
Runner 125 - 200 Suspensions
SUSP - 225
