- Remove the front shield after disconnecting the
wiring of the front headlight assembly and of the
taillights.
Assembly following the procedure in reverse or-
der.
See also
Front central cover
Knee-guard

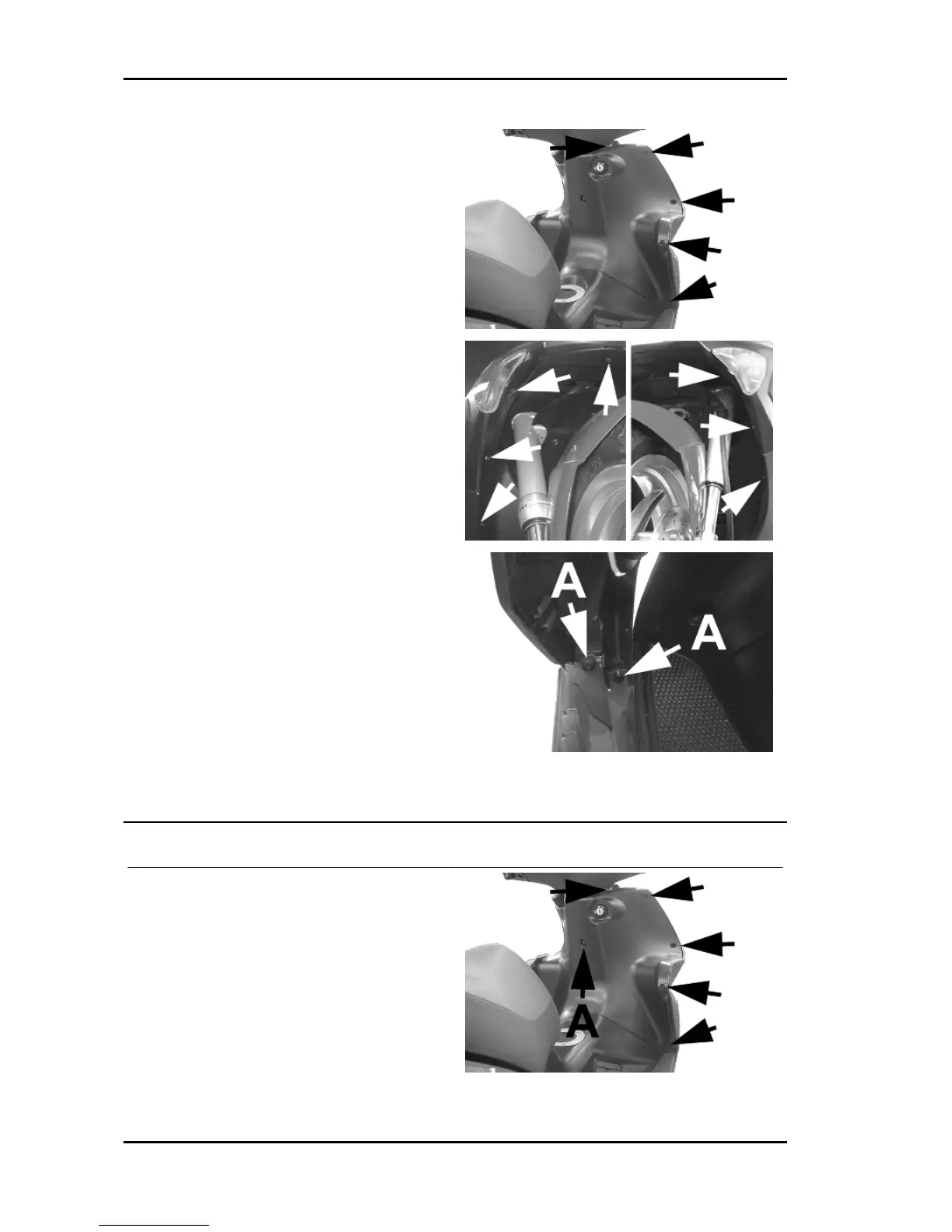

- Remove the central chassis cover.
- Remove the shield central cover and remove the
supporting screws for the expansion tank.
- Remove the 10 screws (5 per side) of the shield
back plate indicated in the photograph.
- Remove the central screw <A> indicated in the
photo, then remove the shield back plate.
Follow the procedure in reverse order to refit.
See also
Frame central cover
