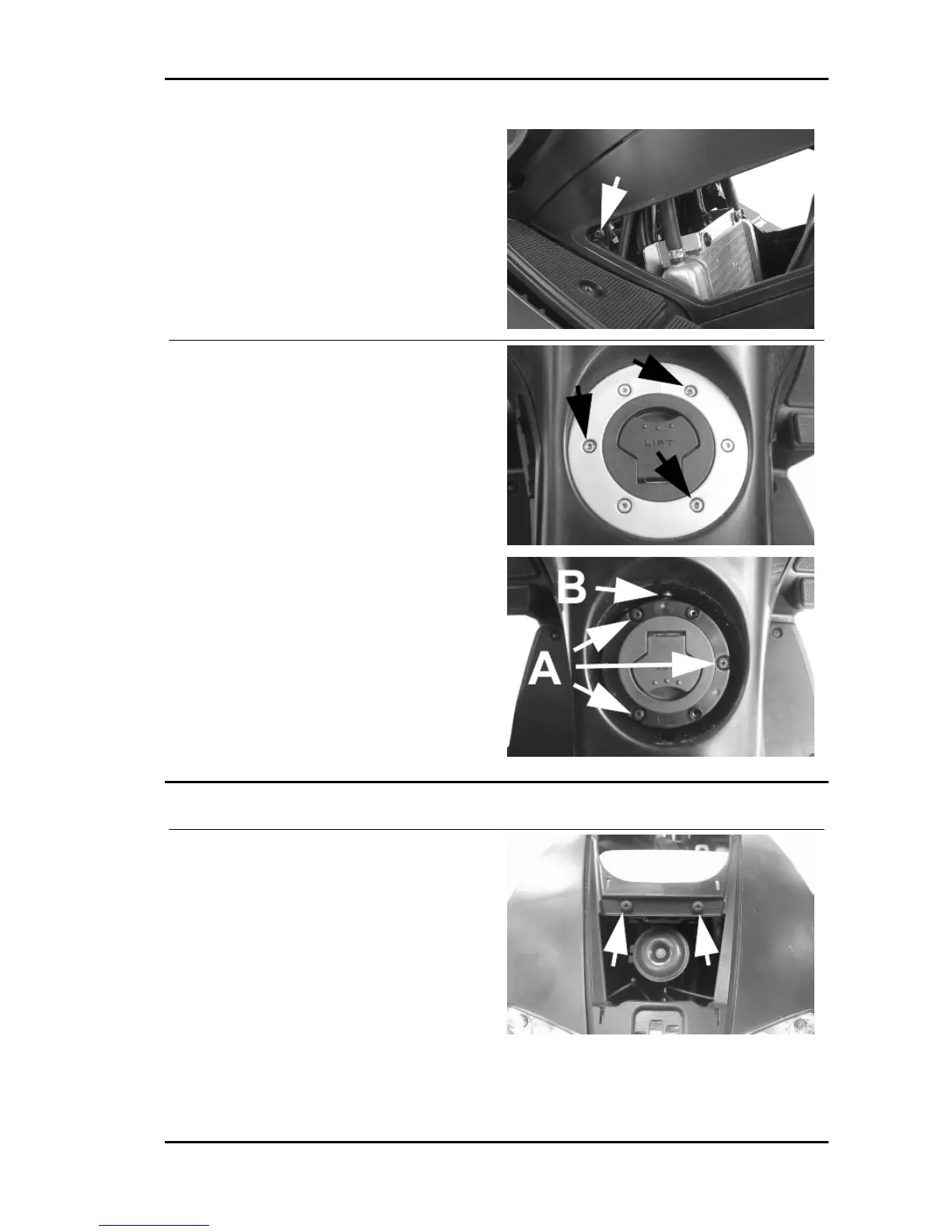

- Remove the ring nut of the fuel tank cap by un-
screwing the 3 screws indicated in the photograph.
- Remove the filling hole unit of the fuel tank by
loosening the 3 screws <A> indicated in the pho-
tograph and the metal clamp.
- Remove the screw <B> indicated in the photo-
graph, then remove the chassis central cover by
pulling it upwards.
To fit, repeat the procedure in reverse order being
careful to replace the metal clamp of the fuel tank
filling hole.
Legshield
- Remove the shield central cover.
- Remove the 2 screws shown in the photograph.
- Remove the 10 screws (5 per side) indicated in
the photograph.
- Remove the 7 screws indicated in the photograph
from the front wheel compartment.
- Lever on the plastic parts creating enough space
to remove the 4 screws (2 per side) <A> indicated
in the photograph.
Runner 125 - 200 Chassis
CHAS - 271
