PIETRO FIORENTINI FE Series User Manual

30
SERIES FE
EN
LOW-PRESSURE GAS REGULATOR | DESCRIPTION AND OPERATION | REV. 00
Use, maintenance and warning manual

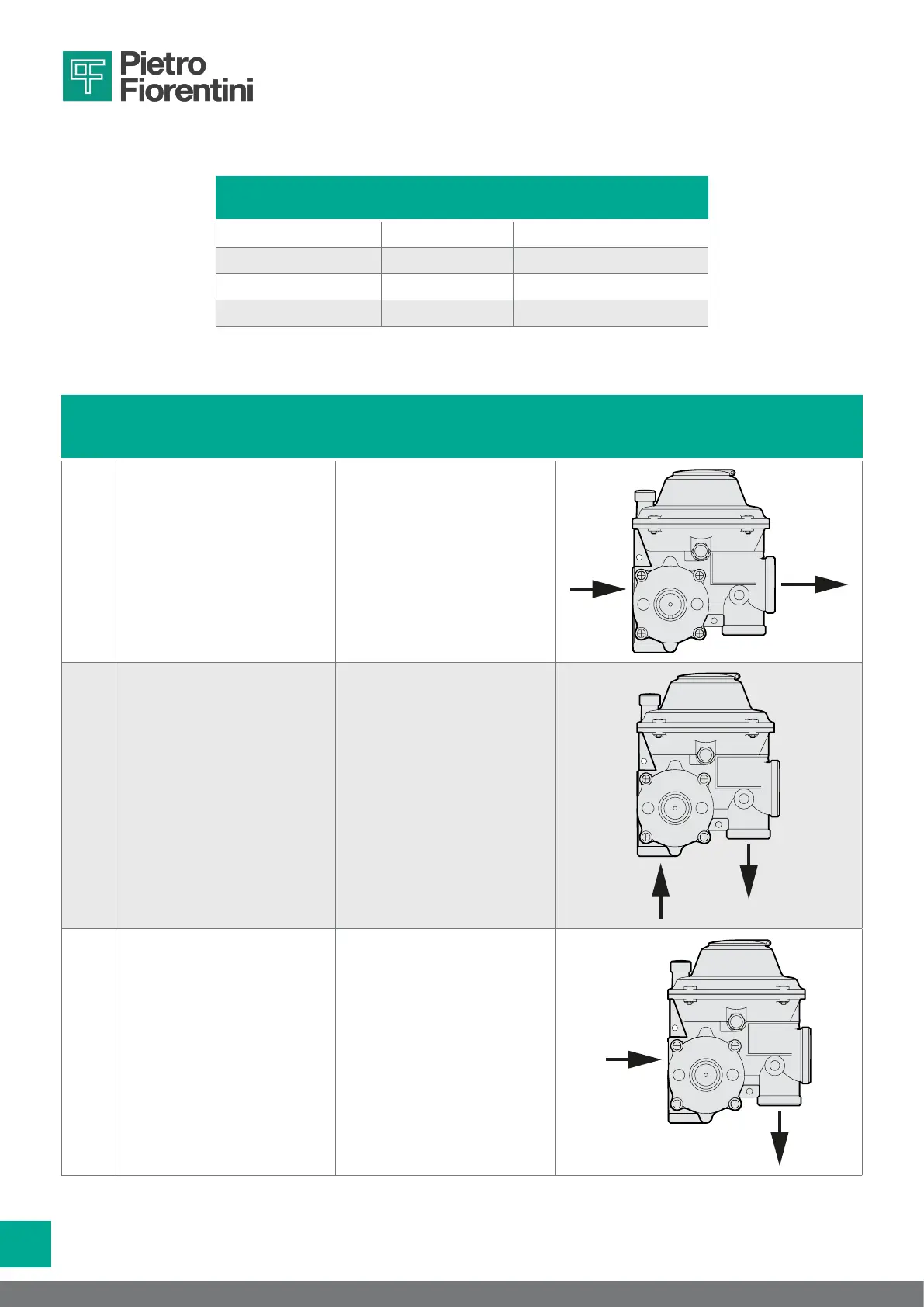

4.4 - MODELS AND CONFIGURATIONS
SERIES FE includes 4 standard models based on the nominal ow rate as specied in Tab. 4.16.:
Regulator trade
name
Nominal
ow rate
Minimum
input pressure
FE6 6 m³/h pds + 0.2 bar
FE10 10 m³/h pds + 0.3 bar
FE25 25 m³/h pds + 0.4 bar
FES 50 m³/h pds + 0.8 bar
Tab. 4.16.
Various congurations can be set up based on inlet/outlet connections:
Type
Inlet connection
(modular connections on
request)
Outlet connection
(modular connections on
request)
FE L 1 G ½” EN ISO 228/1 1 G 1” EN ISO 228/1
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
IN
OUT
OUT
FE U 1 G ½” EN ISO 228/1 1 G ¾” EN ISO 228/1
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
IN
OUT
OUT
FE S 1 G ½” EN ISO 228/1 1 G ¾” EN ISO 228/1
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
IN
OUT
OUT
