LOW-PRESSURE GAS REGULATOR | DESCRIPTION AND OPERATION | REV. 00
Use, maintenance and warning manual
4.6.4.2 - PROCEDURE OF USE WITH PETERSON MODEL PRESSURE OUTLET
ATTENTION!
The maximum operating pressure for a Peterson model standard pressure outlet is 10 bar.
NOTE!
The pressure gauge (E) and the ring nut (D) are not included in the standard scope of supply and are sup-
plied only on request.
To use a Peterson model pressure outlet (A), proceed as follows:
Step Action
1 Remove the closing cap (B).
2
Fit the pin (C) until the connection with the gas chamber of the outlet body is made, then lock it through the
ring nut (D).
NOTE!
The pin (C) is not present on the regulator but is an accessory of the pressure outlet.
3 Read the pressure measured on the pressure gauge (E).
4 After reading, loosen the ring nut (D) to unlock the pin (C).
5 Remove the pin (C).
6 Put the closing cap (B) back in place.
Tab. 4.21.
A
C
E
D
B

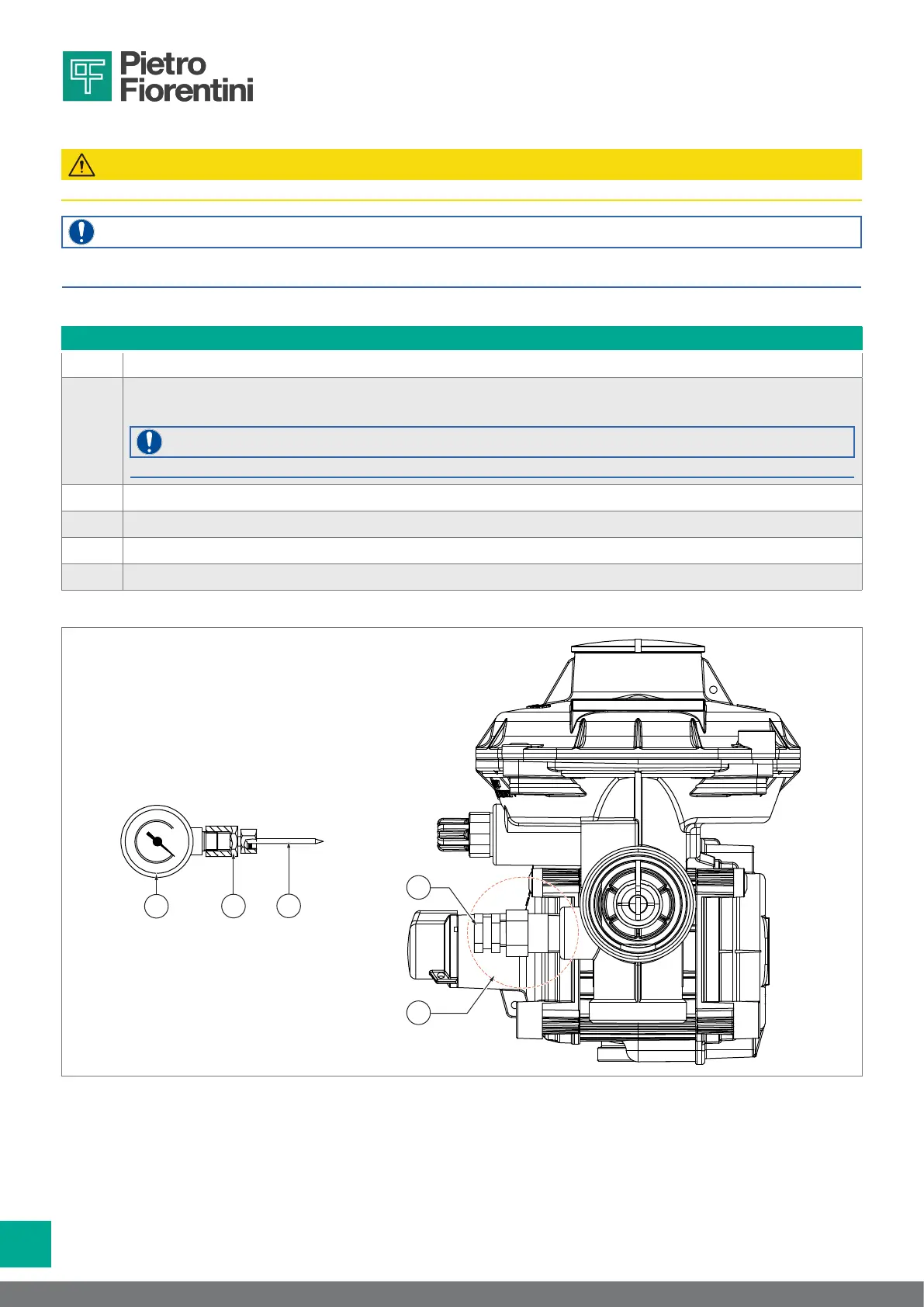

Fig. 4.8. Peterson model pressure outlet use
