SERIES FE
LOW-PRESSURE GAS REGULATOR | TRANSPORT AND HANDLING | REV. 00
EN
Use, maintenance and warning manual
5.2 - PHYSICAL CHARACTERISTICS OF THE EQUIPMENT
D
A
CB
FE
G
H

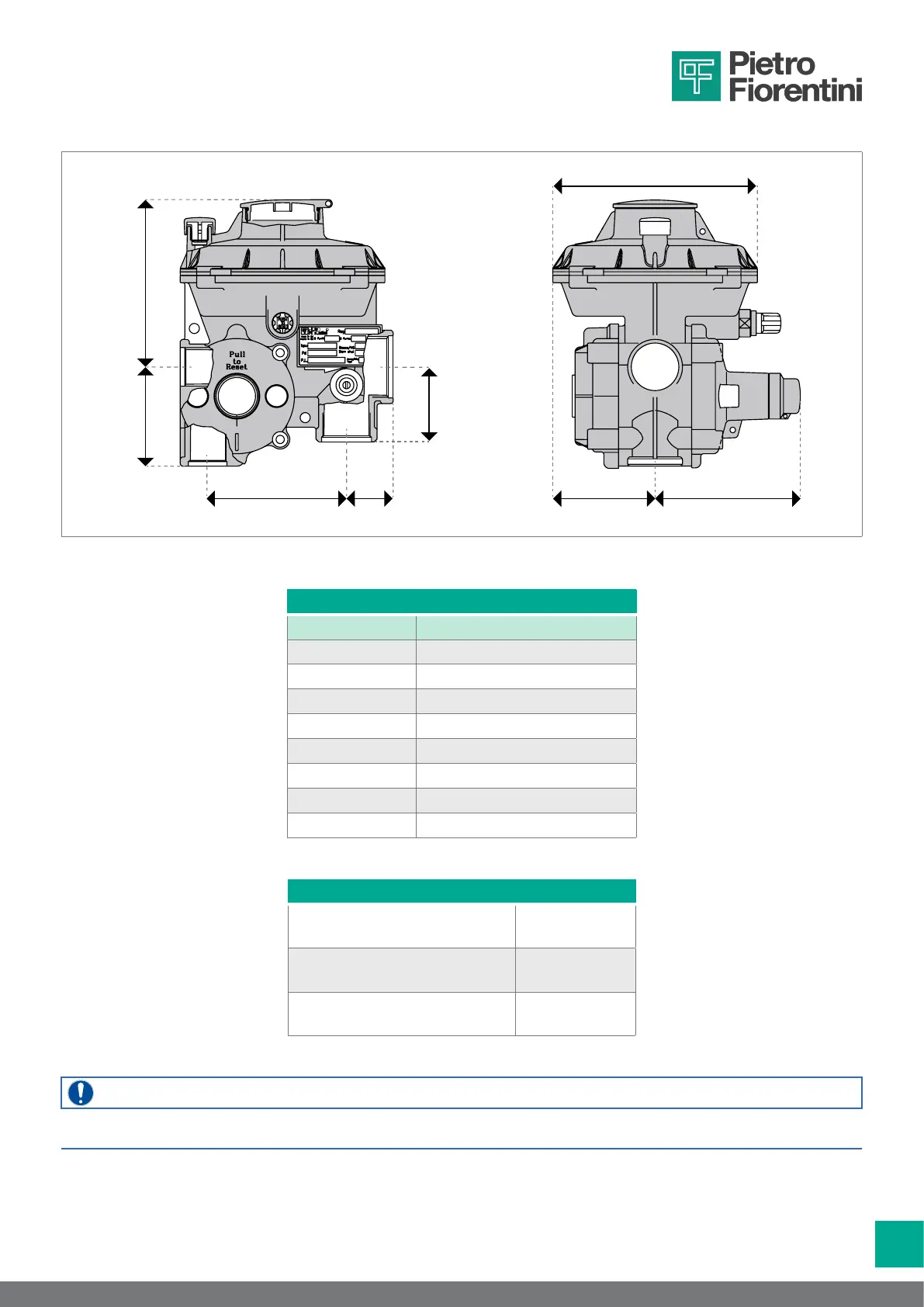

Fig. 5.9. SERIES FE Physical characteristics
Overall dimensions
Ref. Dimensions [mm]
A 91
B 76
C 25.5
D Ø112
E 56
F 79
G 54.3
H 41
Tab. 5.24.
Weight [kgf]
Zamak regulator
(without ttings)
1.35
Aluminium regulator
(without ttings)
1.0
Weight increase
with ttings
from 0.15 to
0.7
Tab. 5.25.
NOTE!
Refer to the product congurator (“sizing”) of the website PIETRO FIORENTINI S.p.A. (www.orentini.com)
for the dimensions and weight of the equipment.
