4.6.4.1 - PROCEDURE OF USE WITH STANDARD PRESSURE OUTLET
ATTENTION!
The maximum operating pressure for the standard pressure outlet is 0.5 bar.
To use a standard pressure outlet (A), proceed as follows:
Step Action
1 Undo the locking screw (B).
2 Fit the rubber tube on the tang (C) making sure that the connection is sealed.
3 Tighten the locking screw (B) making sure there are no leaks from the pressure outlet.
Tab. 4.20.
A
B
C

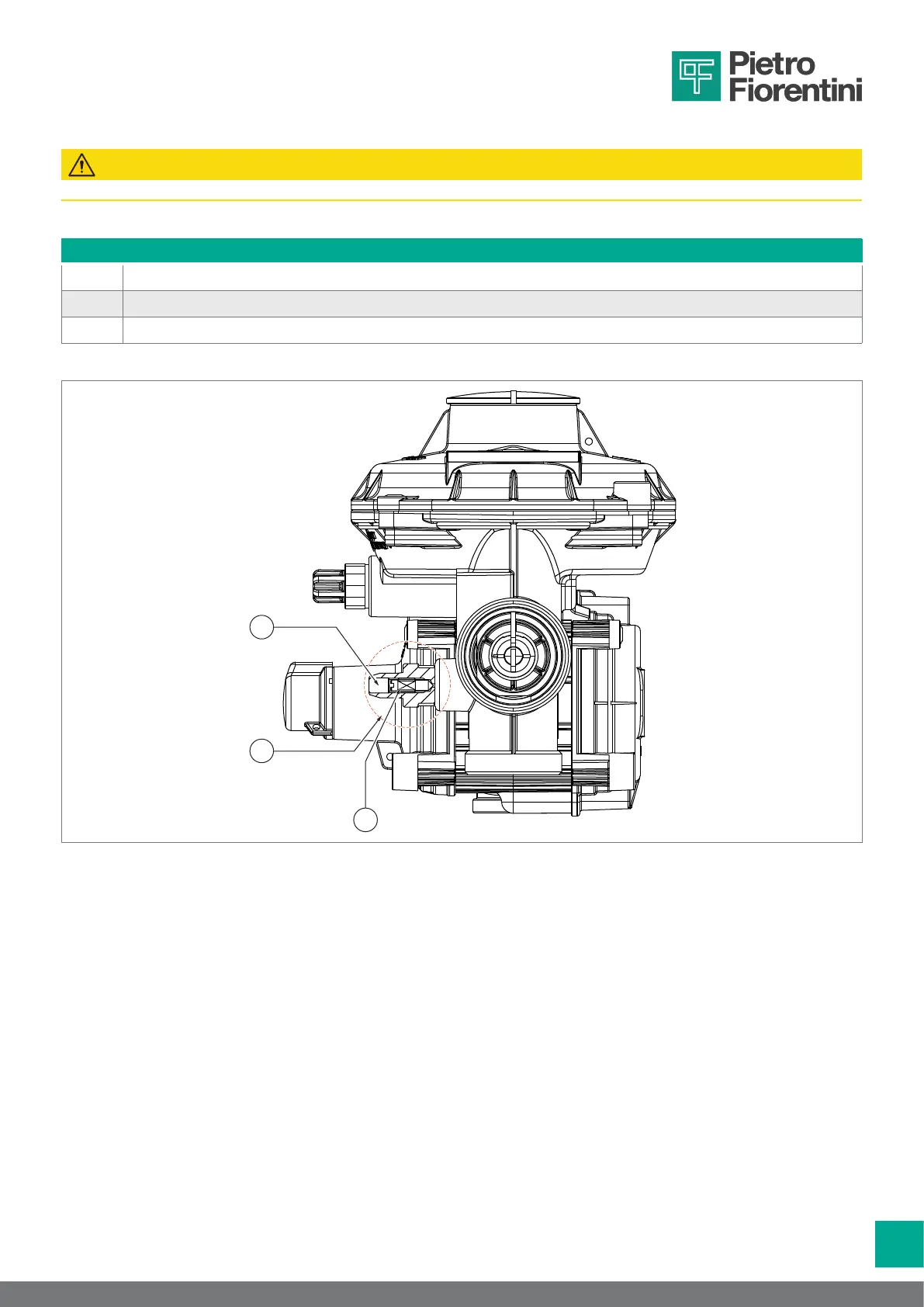

Fig. 4.7. Standard pressure outlet use
