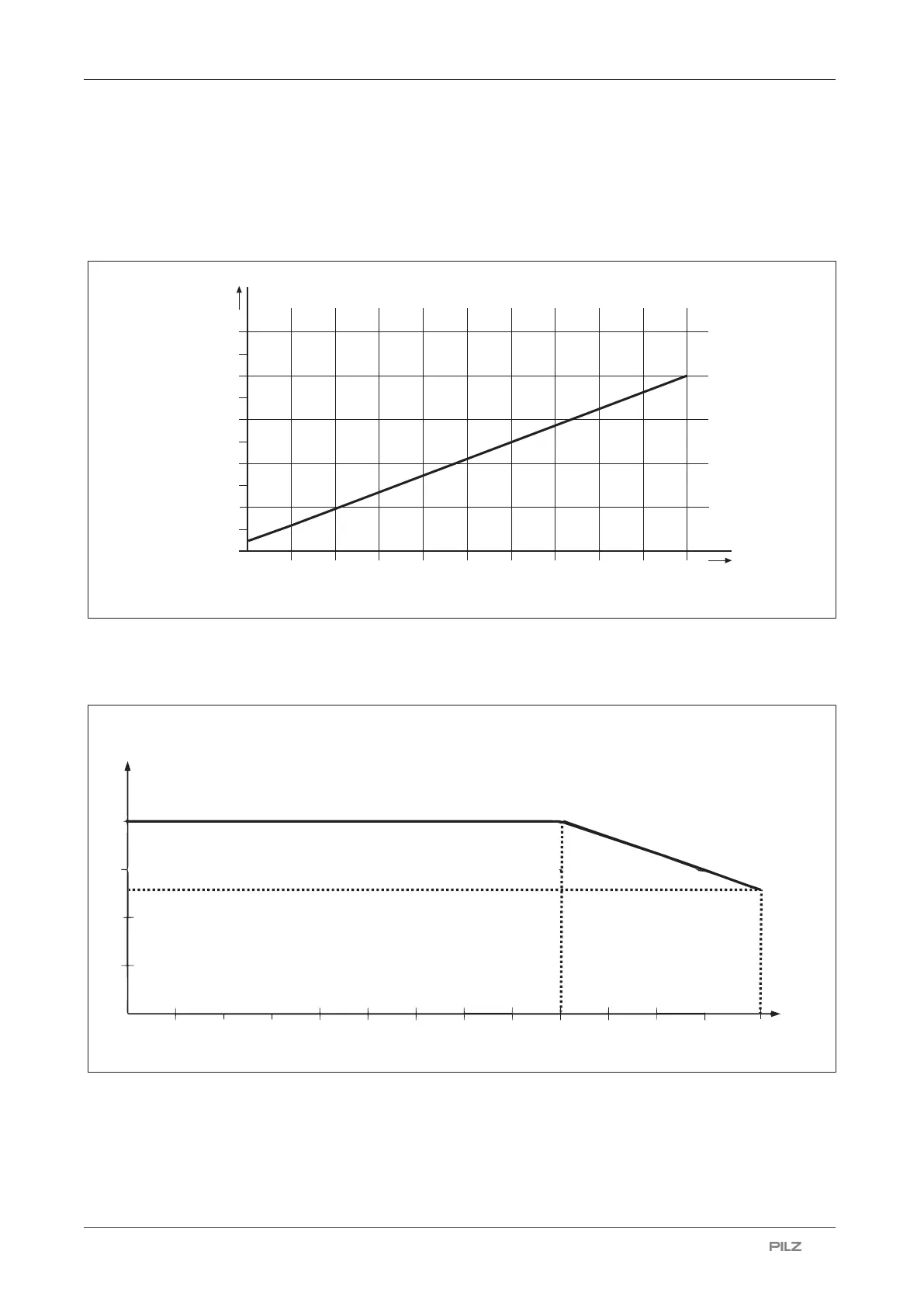

Supplementary data
Operating Manual PNOZ m C0
1006013-EN-02
| 35
12 Supplementary data
12.1 Maximum capacitive load C (μF) with load current I (A) at the
semiconductor outputs
4
8
12
16
20
0
0,2 0,4 0.6 0,8 1 1,2 1,4 1,6 1,8 2
I [A]
C [µF]
12.2 Permitted ambient temperature Tamb dependent on the total
current Isum
10 20
30 40 50 60
2
4
6
8
Tamb
[°C]
Isum
[A]
A derating of 133 mA per 1°C must occur from an ambient temperature of 45 °C and
above.
