Overview
Operating Manual PNOZ m C0
1006013-EN-02
| 8
– Fault at the inputs
} Test pulse outputs used to monitor shorts across the inputs
} Monitoring of shorts between the safety outputs
} Plug-in connection terminals:
Either spring-loaded terminal or screw terminal available as accessories (see Order refer-
ences)
2.3 Chip card
As an option, a chip card can be used to transfer project data.
Chip cards with 8 kByte and 32 kByte memories are available. For large-scale projects we
recommend the 32 kByte chip card (see Technical Catalogue: Accessories).

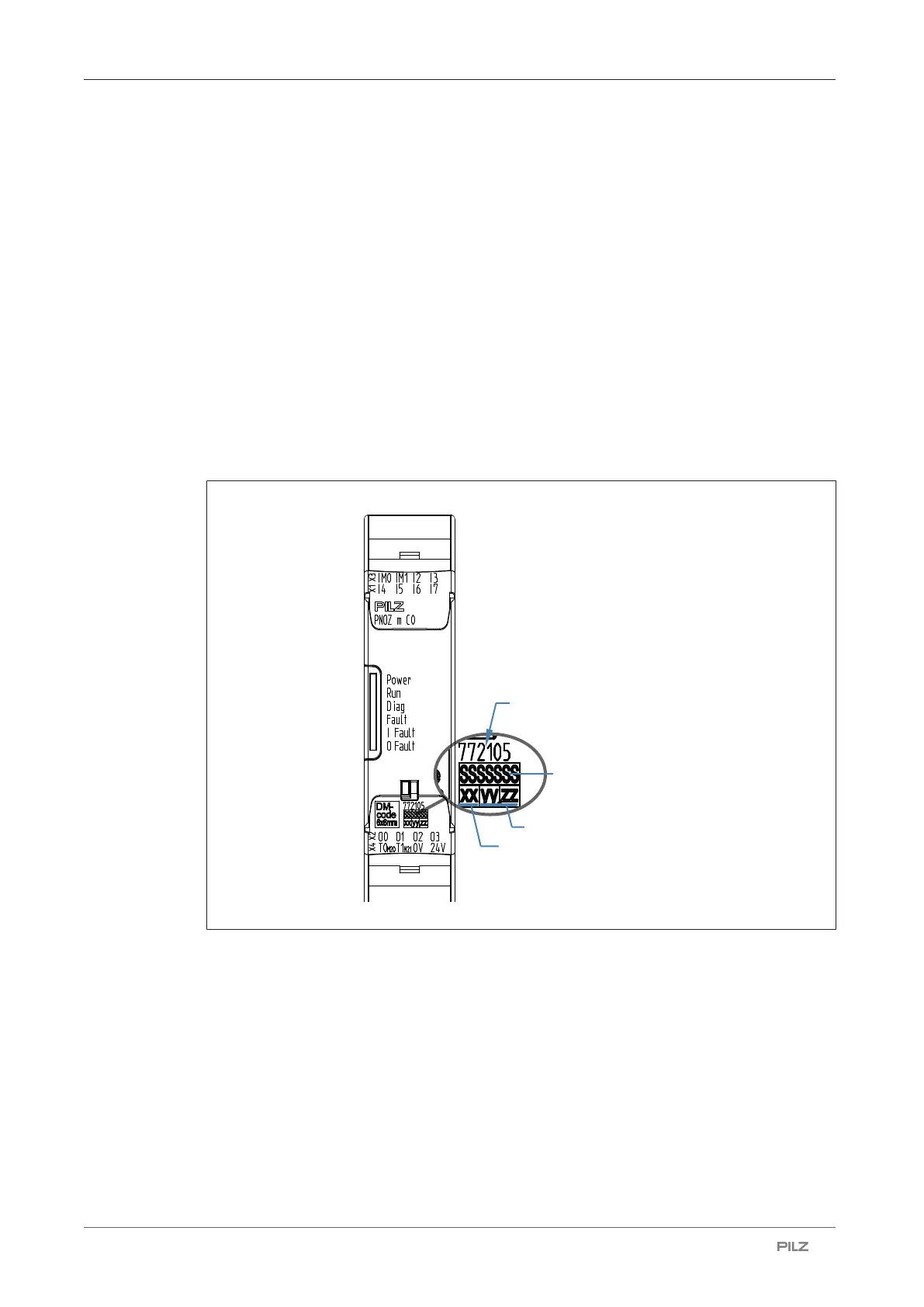

2.4 Front view
Hardware version (HW)
Firmware version (FW)
Order number
Serial number
Legend
X1: Inputs I4 ... I7
X2: Semiconductor outputs O0 ... O3
X3: Configurable inputs/outputs IM0 and IM1
Inputs I2 ... I3
X4: Configurable test pulse/auxiliary outputs T0M20 and T1M21
Supply connections 24 V and 0 V
