5-1
5.1 General installation guidelines
5 Installation
55000Installa tionInstall ation5-5.1General installation guidelines5100General installation guidelines5-Montage_multi_allgemein
` The safety system should be installed in a control cabinet with a pro-
tection type of at least IP54. Fit the safety system to a horizontal DIN
rail. The venting slots must face upward and downward. Other mount-
ing positions could destroy the safety system.

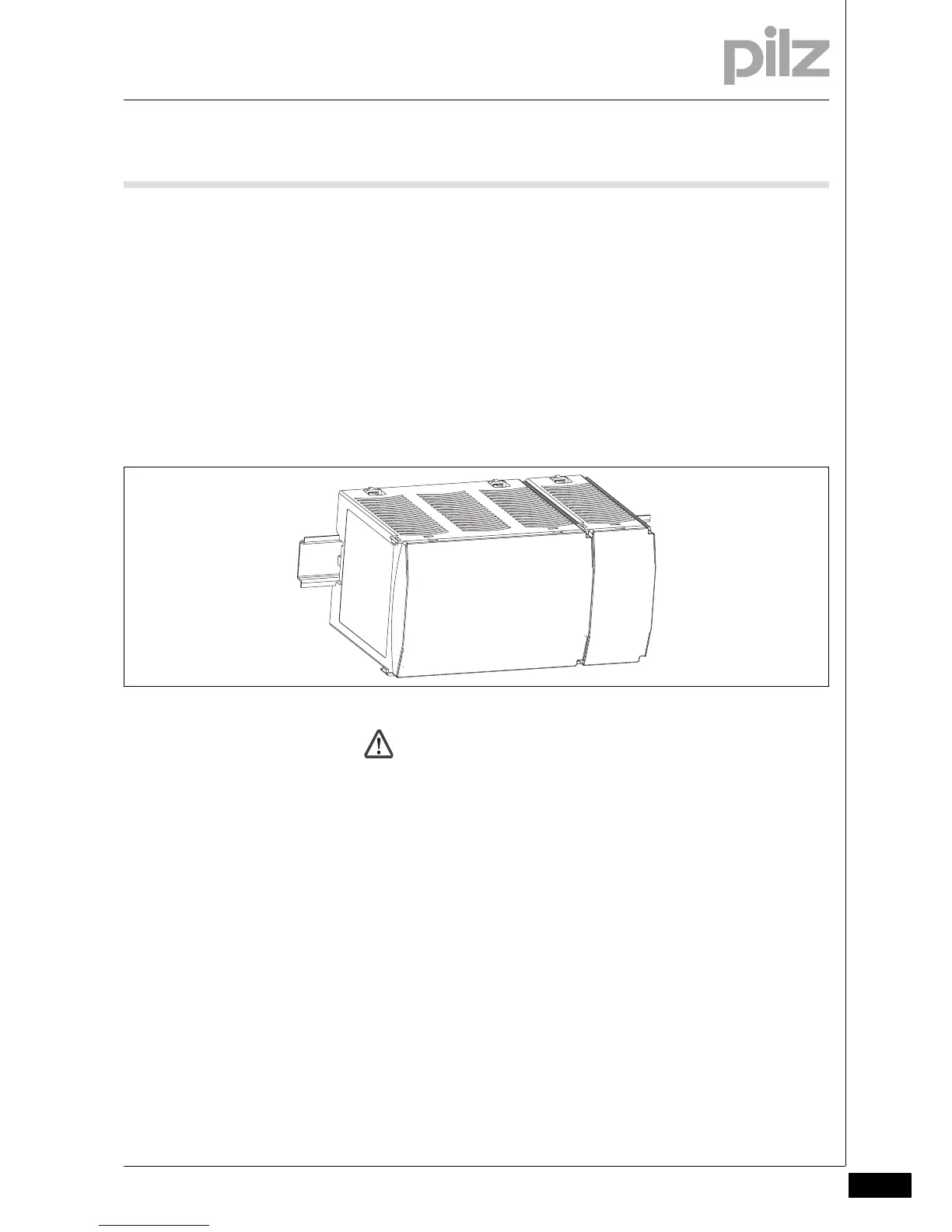

` Use the notches on the back of the unit to attach it to a DIN rail. Con-
nect the safety system to the DIN rail in an upright position so that the
earthing springs on the safety system are pressed on to the DIN rail.
` The ambient temperature of the PNOZmulti units in the control cabi-
net must not exceed the figure stated in the technical details, other-
wise air conditioning will be required.
` To comply with EMC requirements, the DIN rail must have a low im-
pedance connection to the control cabinet housing.
Montage_multi_Bild_BA
Montage_EMV ESD
CAUTION!
Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure
against discharge before touching the product, e.g. by touching
an earthed, conductive surface or by wearing an earthed arm-
band.
