6.3 Preparing for operation
6 Commissioning
6.3.4 Connection

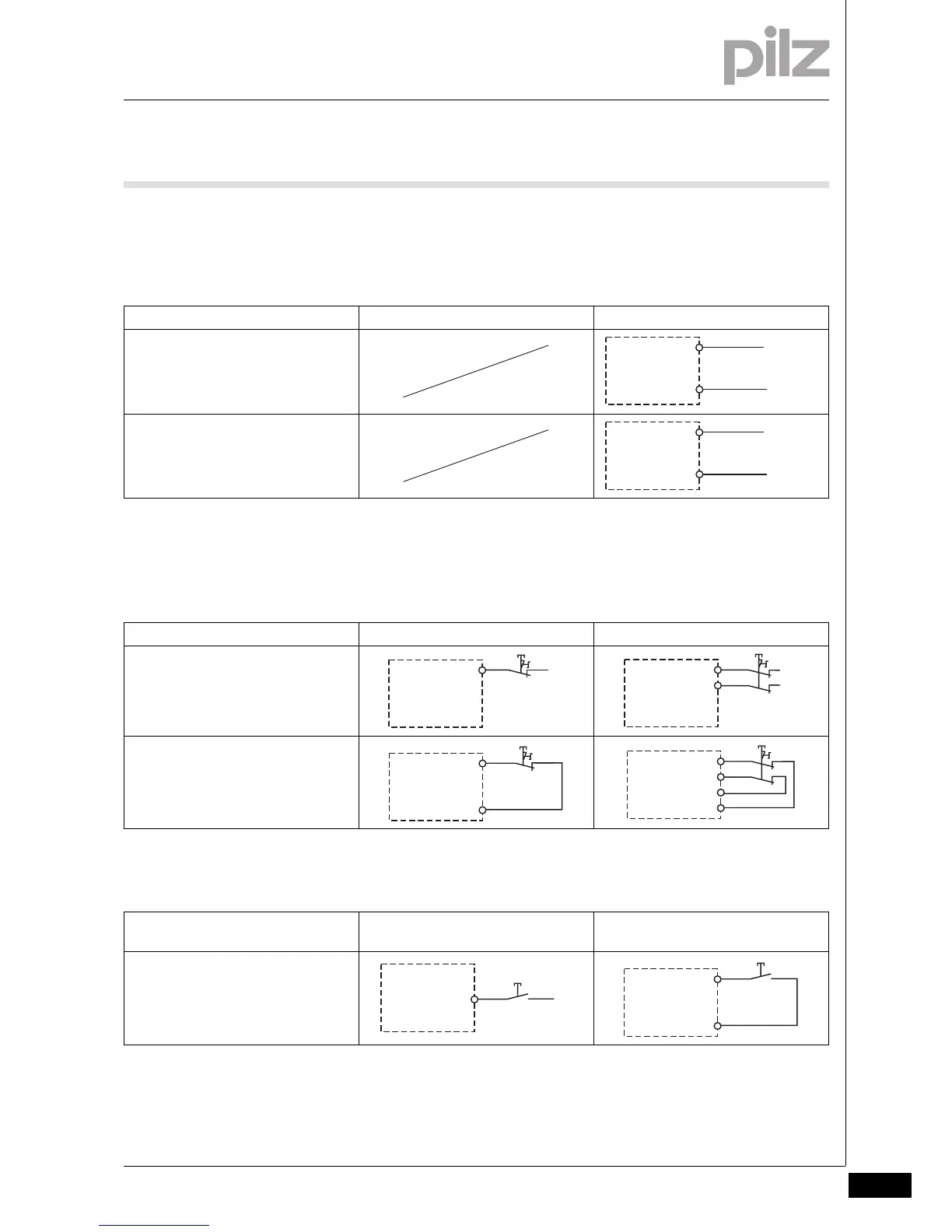

Connection6-Betriebsbereits chaft herstellen mu lti Basigerät
` Supply voltage
` Connection examples for the input circuit
` Connection examples for reset circuit
Supply voltage AC DC
For the safety system
(connector X7)
For the semiconductor outputs
(connector X2)
Must always be present, even if the
semiconductor outputs are not used
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts across
contacts
E-STOP
with detection of shorts across con-
tacts
Reset circuit Input circuit without detection of
shorts across contacts
Input circuit with detection of shorts
across contacts
A1
+ 24 V DC
A2
0 V
24 V
+ 24 V DC
0 V
0 V
S1
I0
L+
S1
I1
I0
L+
L+
I0
T0
S1
S1
T1
I1
T0
I0
I5
S3
L+
I5
T0
S3
