6-9

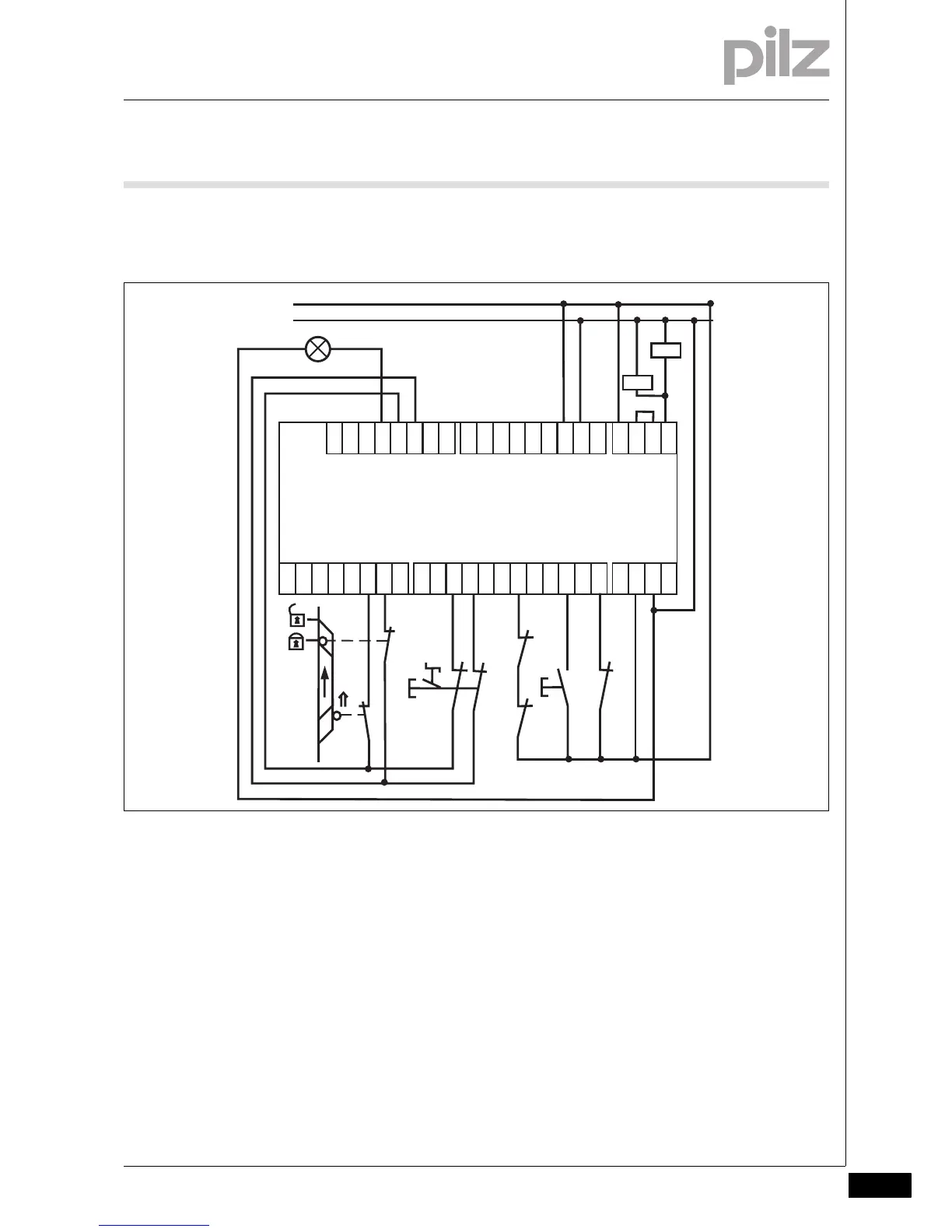

6.4 Connection example
6 Commissioning
6.4Connection example6400Connection example6-Anschlussbeispiel_Basisgeräte_BA
Dual-channel E-STOP and safety gate wiring, monitored reset (I17),
feedback loop (I14), cascading output as auxiliary output (CO+/A2)
I0 I1 I2 I3 I4 I5 I6 I7 I8 I9 I10 I11 I12 I13 I14 I15 I16 I17 I18 I19 A1 A1 A2 A2
CI+ CI- CO- CO+ T0 T1 T2 T3 O0 O1 O2 O3 OA0 24V 24V 0V 0V 13 14 23 24
K1
K2
S1
K2
K1
S2
S3
L+
L-
