Pilz PNOZ m0p User Manual

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: pilz.gmbh@pilz.de
6-3
6.2 Ethernet interfaces (only PNOZ m0p ETH)
6 Commissioning

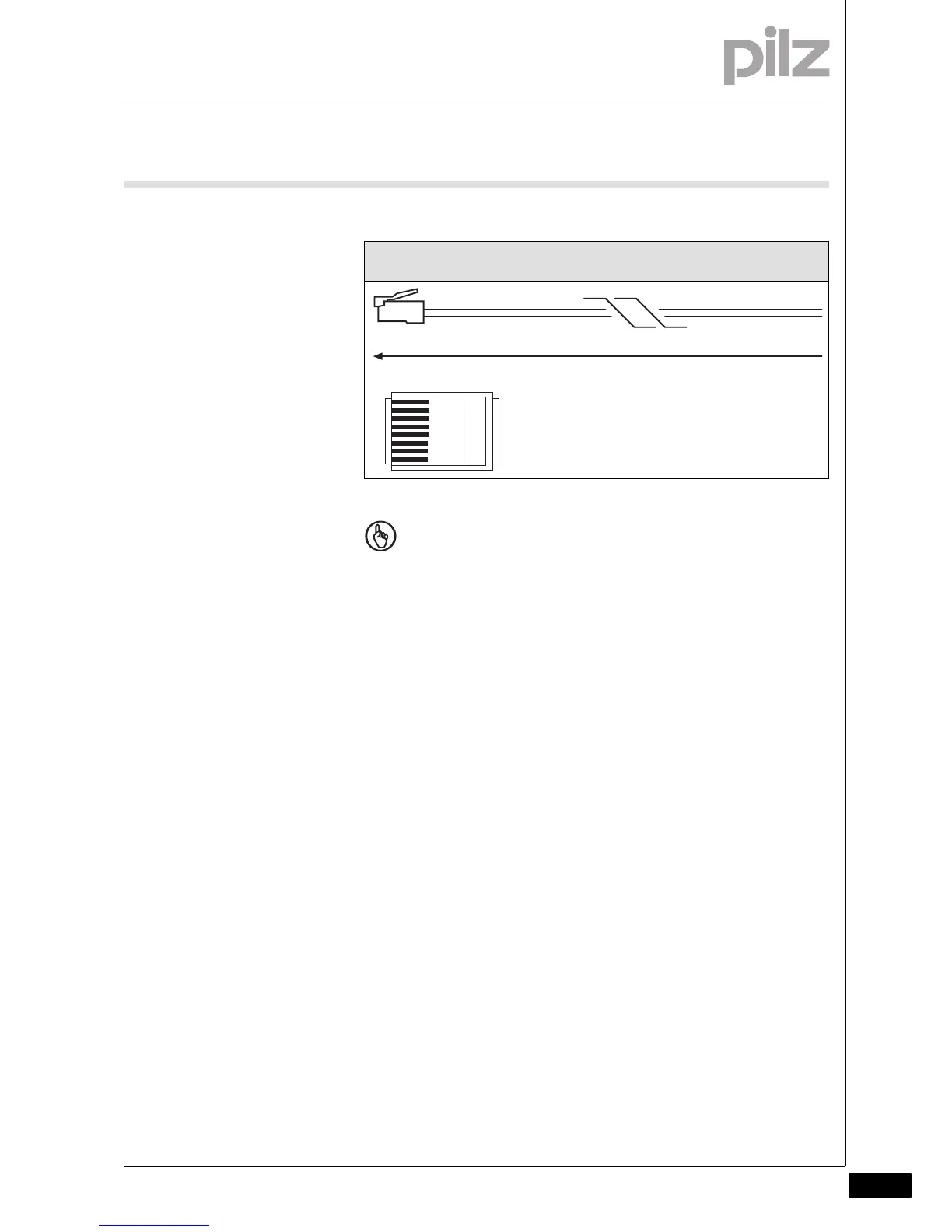

6.2.4 RJ45 connection cable
RJ45 conne ction cable6-ETH_RJ45 Verbindu ngskabel-8-polig
ETH_Wichtig_bedingte_Belastbarkeit_Datenkabel
6.2.5 Process data exchange
Process data exchange6-ETH_Prozessdatenaustausch_Switch
The RJ45 interfaces on the internal autosensing switch enable process
data to be exchanged with other Ethernet subscribers within a network.
The product PNOZ m0pETH can also be connected to Ethernet via a
hub (hub or switch).
ETH_Prozessdatenaustausch_Switch_Grafik_multi
RJ45 connector
8-pin
NOTICE
With the plug-in connection please note that the data cable and
connector have a limited mechanical load capacity. Appropriate
design measures should be used to ensure that the plug-in con-
nection is insensitive to increased mechanical stress (e.g.
through shock, vibration). Such measures include fixed routing
with strain relief, for example.
8
1
10BaseT cable or 100BaseTX cable
max. 100 m
