100

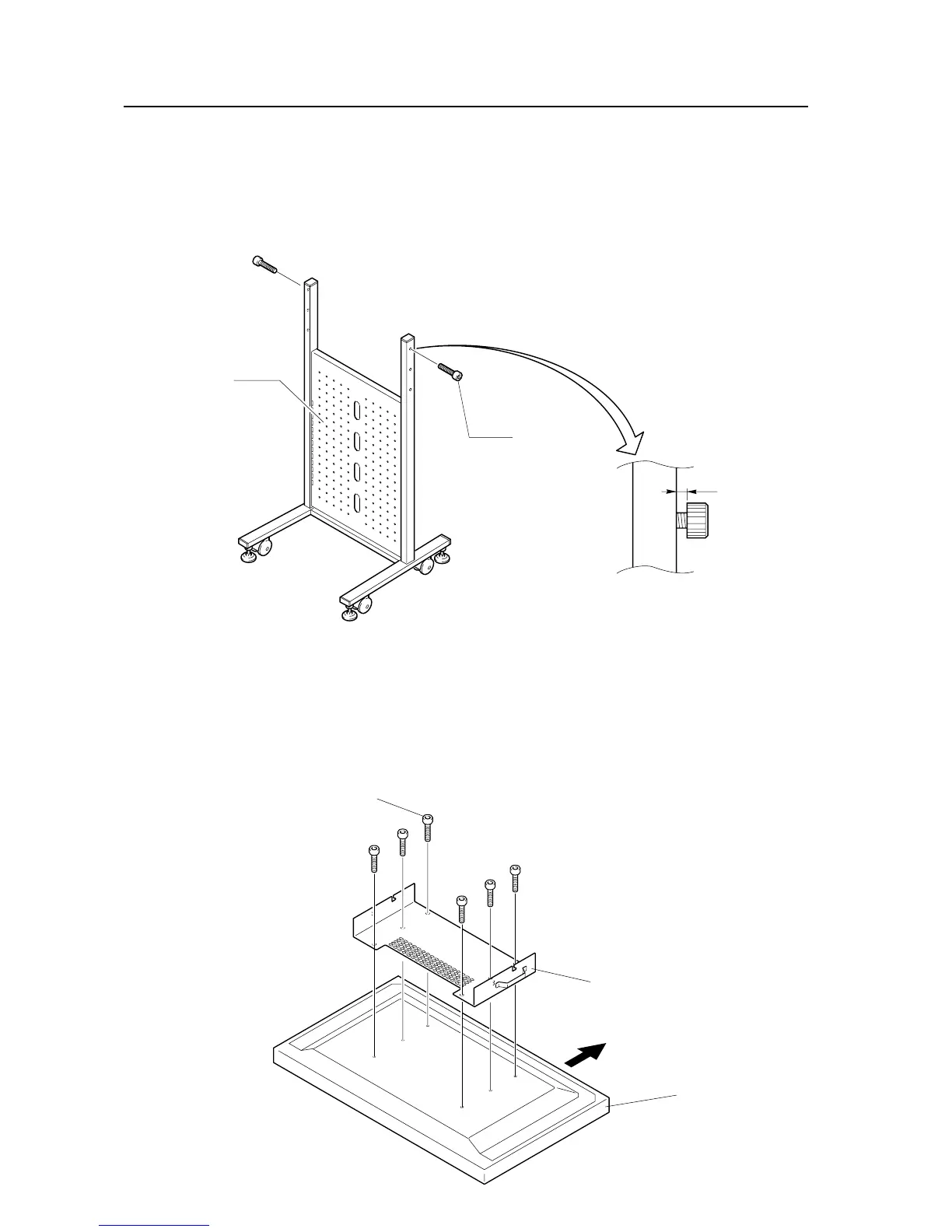

2 Attaching bracket bolts to display stand
Attach the hexagonal bored bolts (M8 × 20) to the display stand as the figure, being sure to leave a space of 5 to 6
millimeters when doing so. (Note that these bolts may be attached at two different levels to allow a distance of 1350
mm or 1170 mm from the floor to the center of the display panel.)
Note: The bracket bolts may not be screwed into the third set of screw holes from the top, as these screw holes
are used in Step 4 below.
3 Attaching bracket to plasma display
Using the hexagonal bored bolts (M8 × 20), attach the bracket to the rear of the plasma display by screwing the bolts
into the screw holes as the figure.
Note 1: The plasma display should be placed on a blanket or other soft surface so as to avoid scratching or otherwise
damaging the surface of the display.
Note 2: In order to ensure safe installation, always be sure to alternately tighten each bolt two times or more until
they are firmly fixed in place.
Mobile Cart: PDK-5014
Display stand
Hexagonal bored
bolts (M8 × 20)
5 to 6 mm
Bracket
Plasma display
Hexagonal bored bolts
(M8 × 20)
Top side of plasma display
[503CMX/503MXE : 433CMX/433MXE]
To Next Page
