Pioneer PDP-507XD Service Manual

PDP-507XD
122
1234
1234
C
D
F
A
B
E

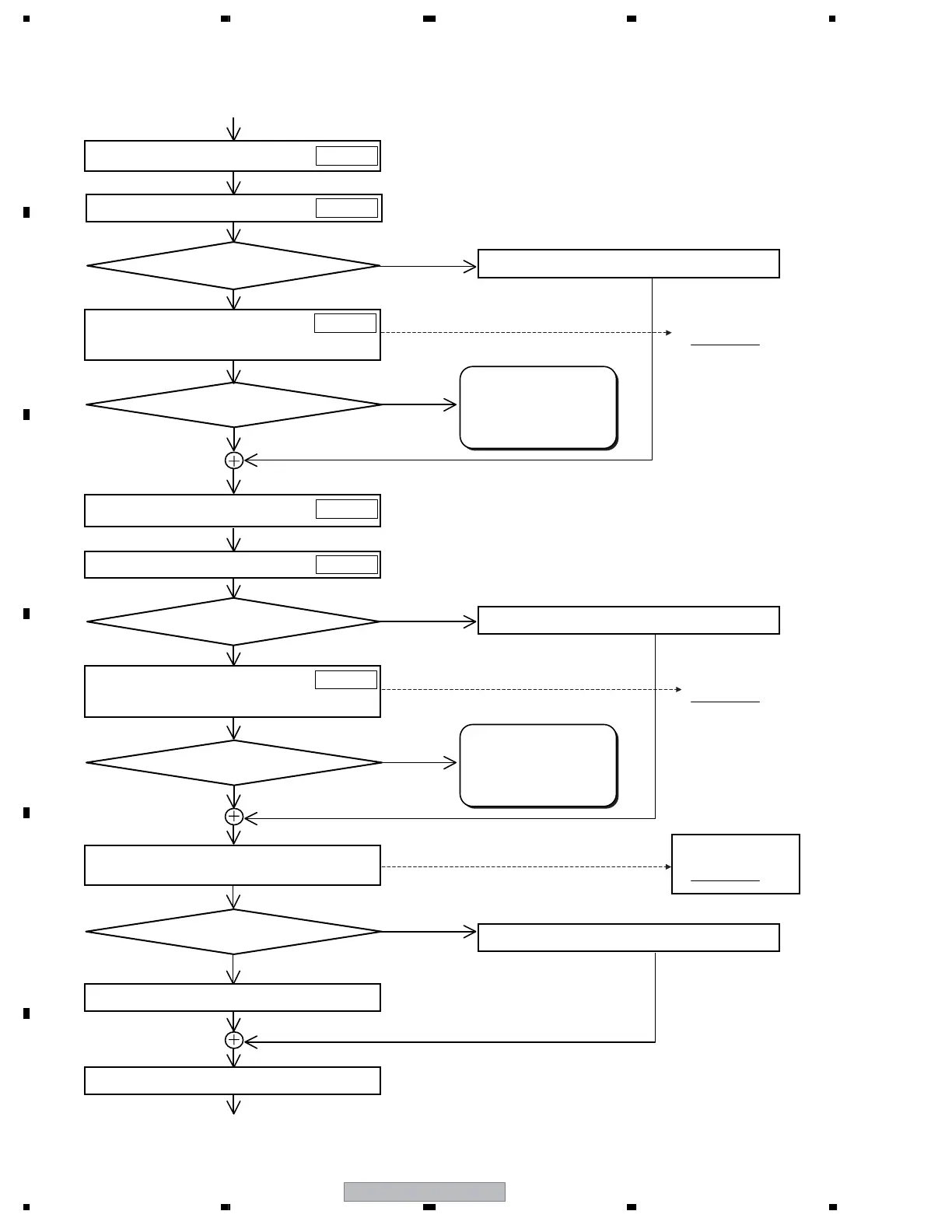

3 Actual Vofs adjustment (2)
(From 2 )
(To 4 )
Set to RST MASK 03 (green 1023).
MKS S53
Set VOL OFFSET to 246 (60 [V] ).
Are there any dark cells?
Are there any dark cells?
Gradually decrease the Vofs data
until dark cells disappear (Vofs should
be 005 (15 [V]) or more).
Is Vofs_max3 118 (36 [V])
or greater?
Set to RST MASK 04 (blue 1023).
Set VOL OFFSET to 246 (60 [V] ).
Gradually decrease the Vofs data
until dark cells disappear (Vofs should
be 005 (15 [V]) or more).
Set the lowest voltage among Vofs_max1, Vofs_
max2, Vofs_max3, and Vofs_max4 as Vofs_max.
Set VOL OFFSET_max4 to 246 (60 [V]).
Value for Vofs = 139 (40 [V])
Set Vofs_max3 to 246 (60 [V]).
Note:
This setting value becomes the value
for Vofs_max3.
Note: Take note of the value
for Vofs_max1.
Note:
This setting value becomes the value
for Vofs_max4.
[V]
Vofs_max3
Replace the panel
again or abnormality
in circuits
Yes
Yes
Yes
Yes
(Check the upper limit of Vofs with the green 1023 signal.)
(Check the upper limit of Vofs with the blue 1023 signal.)
No
Is Vofs_max4 118 (36 [V])
or greater?
No
No
Is Vofs_max 187 (49 [V])
or greater?
Yes
No
No
MKS S54
VOF 246
VOF 246
Value for Vofs = Vofs_max - 48 (9 [V])
Set the value as Vofs.
VOF ∗∗∗
VOF ∗∗∗
Note: Take note of the value
for Vofs_max2.
[V]
Vofs_max4
Vofs_max
[V]
Replace the panel
again or abnormality
in circuits

Pioneer PDP-507XD Specifications

General

Comb filter	3D
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
Display diagonal	50 \
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Viewable size diagonal	1270 mm
Contrast ratio (typical)	4000:1
