PDP-507XD
61
5678
56
7
8
C
D
F
A
B
E

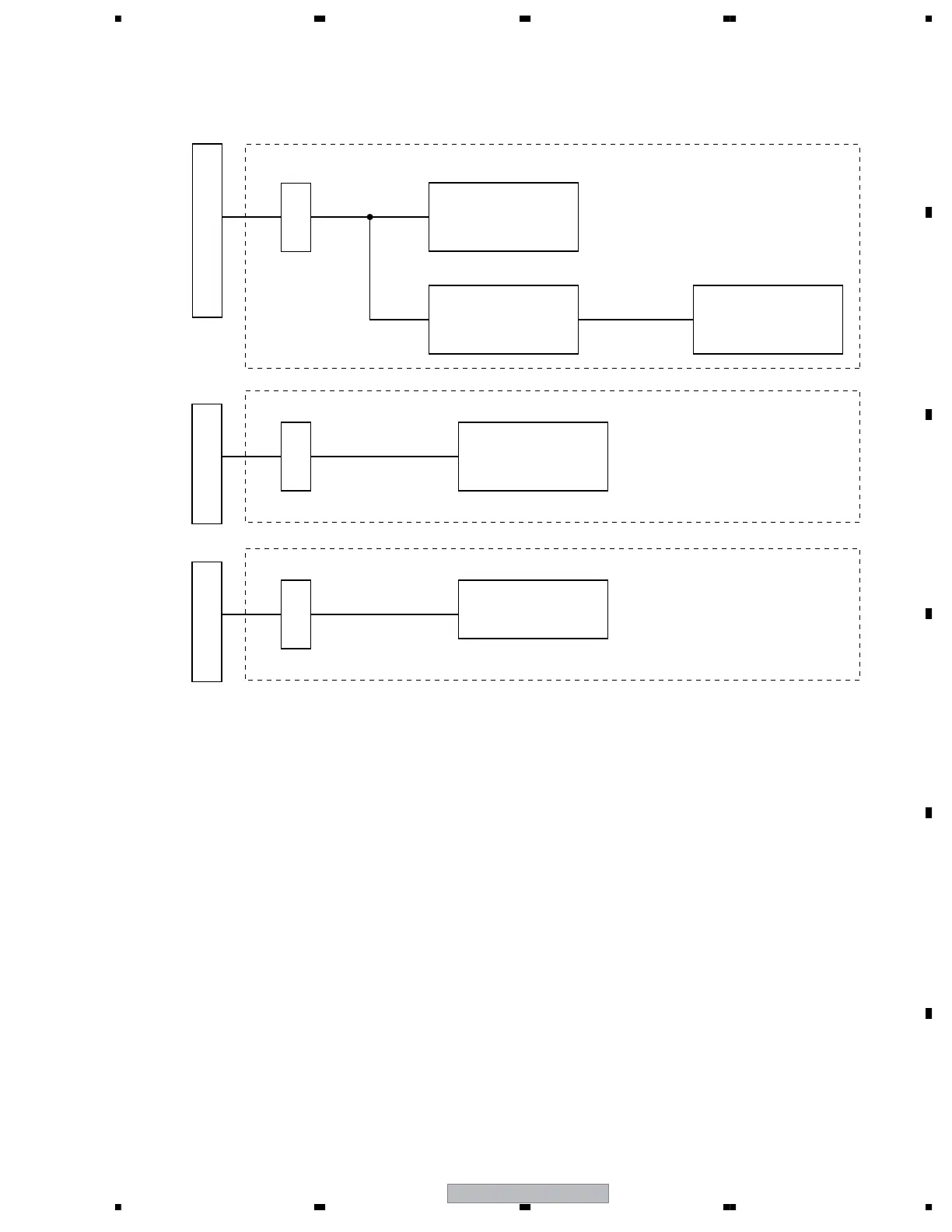

4.15 FUKUGO BLOCK POWER LINE BLOCK DIAGRAM
AUDIO Assy
+16_5V
+12V
LED IR Assy
V+5.1V_STB
POWER AMP
IC3751
LA4625
16.5V → 12V
IC3752
PQ120DNA1ZPH
WOW+VOL IC
IC3753
NJW1183GK1
IR
IC9702
SBX3050-01
CN3751
CN9701
POWER SUPPLY UNIT
MAIN Assy
KEY Assy
V+3.3V_STB
KEY Block
S9501 to S9507
CN9501
MAIN Assy
