Pioneer PDP-507XD Service Manual

PDP-507XD
14
1234
1234
C
D
F
A
B
E

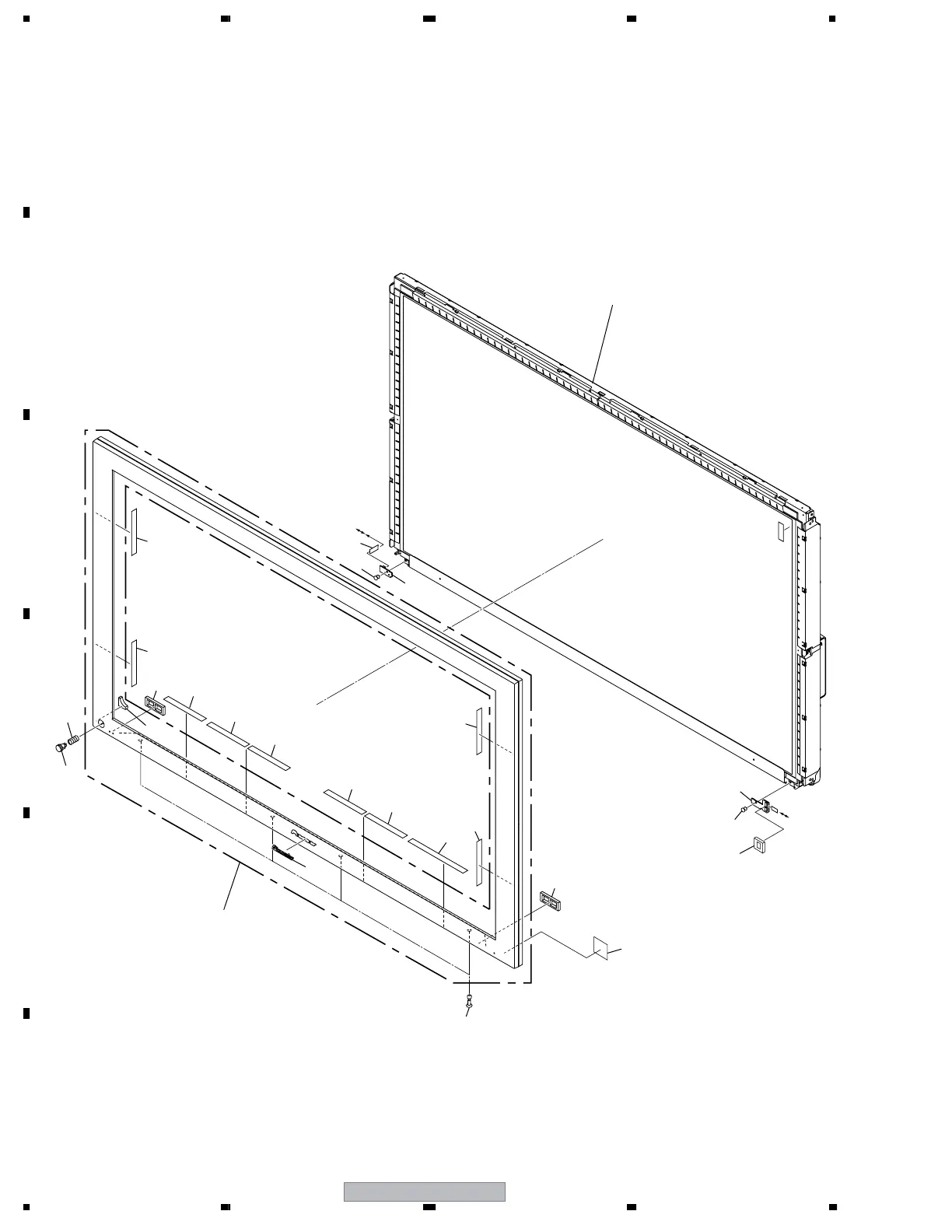

2.3 FRONT SECTION
MAIN
CN4006
MAIN
CN4010,
CN4006
8
8
13
3
5
9
4
10
2
1
10
10
12
10
7
6
11
10
10
10
11
7
10
Refer to
"2.4 CHASSIS SECTION (1/2)".
15
14

Pioneer PDP-507XD Specifications

General

Comb filter	3D
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
Display diagonal	50 \
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Viewable size diagonal	1270 mm
Contrast ratio (typical)	4000:1
